SR299 - Surface Mount Hinges
Showing 1-8 of 8
Per page:1-8 of 8

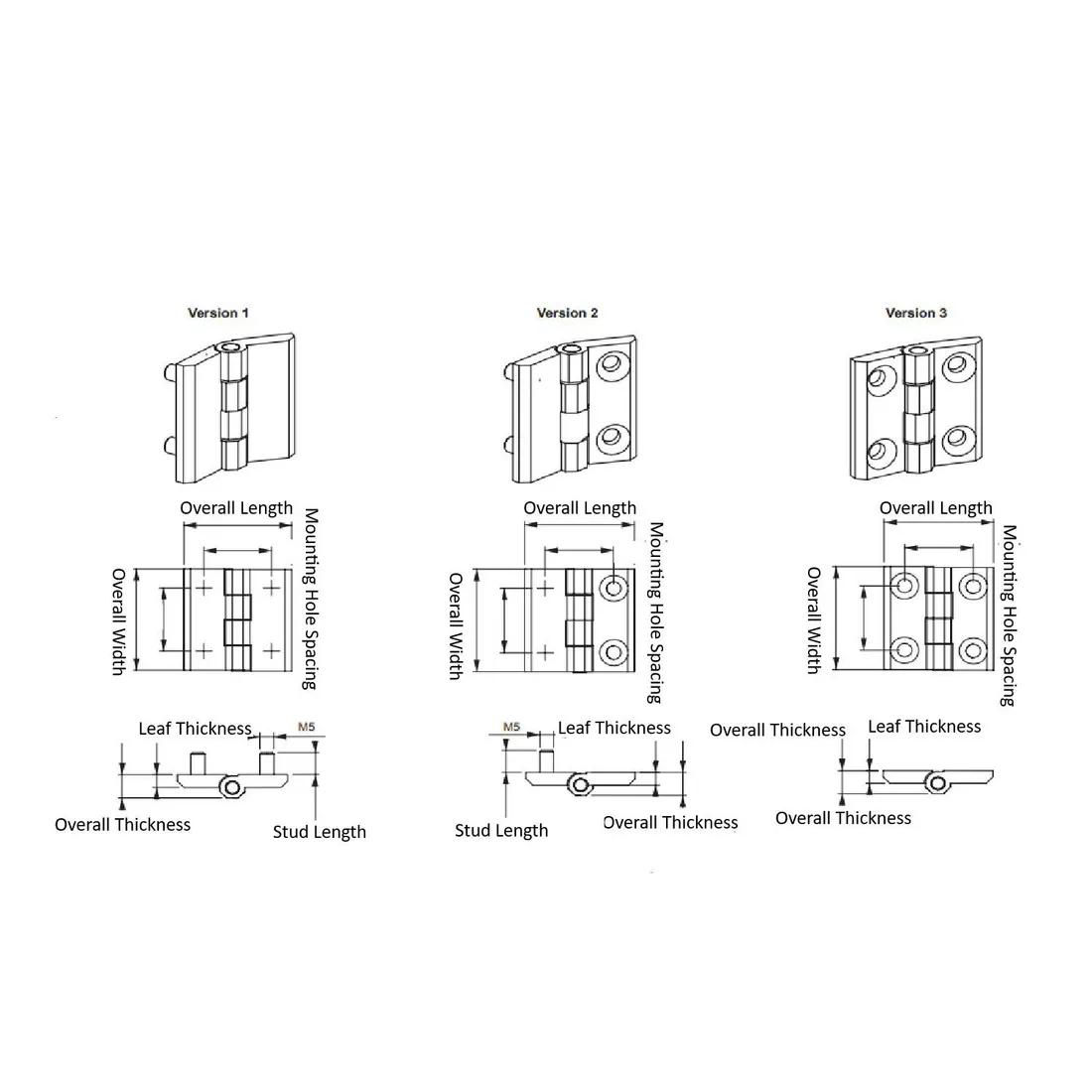

Item Code | Leaf Shape | Color | Mounting Hole Spacing Along Width A | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Pin Material | Mounting Hole Shape | Finish | Body Material | Leaf Thickness | Hinge Type | Stud Thread Size | Mounting Method | Removability | Body Coating | Mount Style | Mounting Hole Spacing Along Length A | Maximum Rotation | Stud Length | Mounting Hole Spacing Along Width | Mounting Hole Spacing Along Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
299113 | Rectangular | Silver | 25.0 mm | Universal | Zinc Alloy;Stainless Steel | 40.0 mm | 40.0 mm | 9.0 mm | Stainless Steel | Countersink Through-Hole | Chrome Plated | Zinc Alloy | 5.0 mm | Butt Hinge | M5 | Fastener Nuts, Screw/Bolts | Fixed | Chrome-Plated | Surface Mount | 25.0 mm | 270 ° | - | - | - | |
299111 | Rectangular | Silver | - | Universal | Zinc Alloy;Stainless Steel | 40.0 mm | 40.0 mm | 9.0 mm | Stainless Steel | - | Chrome Plated | Zinc Alloy | 5.0 mm | Butt Hinge | M5 | Fastener Nuts | Fixed | Chrome-Plated | - | - | 270 ° | 8.5 mm | 25.0 mm | 25.0 mm | |
299123 | Rectangular | Black | 25.0 mm | Universal | Zinc Alloy;Stainless Steel | 40.0 mm | 40.0 mm | 9.0 mm | Stainless Steel | Countersink Through-Hole | Black Powder-Coated | Zinc Alloy | 5.0 mm | Butt Hinge | M5 | Fastener Nuts, Screw/Bolts | Fixed | Powder-Coated | Surface Mount | 25.0 mm | 270 ° | - | - | - | |
299203 | Rectangular | Black | 25.0 mm | Universal | PA;Stainless Steel | 40.0 mm | 40.0 mm | 9.0 mm | Stainless Steel | Countersink Through-Hole | Black | Nylon | 5.0 mm | Butt Hinge | M5 | Fastener Nuts, Screw/Bolts | Fixed | - | Surface Mount | 25.0 mm | 270 ° | - | - | - | |
299201 | Rectangular | Black | - | Universal | PA;Stainless Steel | 40.0 mm | 40.0 mm | 9.0 mm | Stainless Steel | - | Black Powder-Coated | Nylon | 5.0 mm | Butt Hinge | M5 | Fastener Nuts | Fixed | - | - | - | 270 ° | 8.5 mm | 25.0 mm | 25.0 mm | |
299121 | Rectangular | Black | - | Universal | Stainless Steel | 40.0 mm | 40.0 mm | 9.0 mm | Stainless Steel | - | Black Powder-Coated | Zinc Alloy | 5.0 mm | Butt Hinge | M5 | Fastener Nuts | Fixed | Powder-Coated | - | - | 270 ° | 8.5 mm | 25.0 mm | 25.0 mm | |
299122 | Rectangular | Black | 25.0 mm | Universal | Stainless Steel;Zinc Alloy | 40.0 mm | 40.0 mm | 9.0 mm | Stainless Steel | - | Black Powder-Coated | - | 5.0 mm | Butt Hinge | M5 | Fastener Nuts, Screw/Bolts | Fixed | - | - | 25.0 mm | 270 ° | 8.5 mm | - | - | |
299112 | Rectangular | Silver | 25.0 mm | Universal | Stainless Steel;Zinc Alloy | 40.0 mm | 40.0 mm | 9.0 mm | Stainless Steel | - | Chrome Plated | - | 5.0 mm | Butt Hinge | M5 | Fastener Nuts, Screw/Bolts | Fixed | - | - | 25.0 mm | 270 ° | 8.5 mm | - | - |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
299113
Leaf Shape
Rectangular
Color
Silver
Mounting Hole Spacing Along Width A
25.0 mm
Mounting Orientation
Universal
299111
Stud Length
8.5 mm
Leaf Shape
Rectangular
Color
Silver
Mounting Hole Spacing Along Width
25.0 mm
299123
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width A
25.0 mm
Mounting Orientation
Universal
299203
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width A
25.0 mm
Mounting Orientation
Universal
Per page:
1–5 of 9
