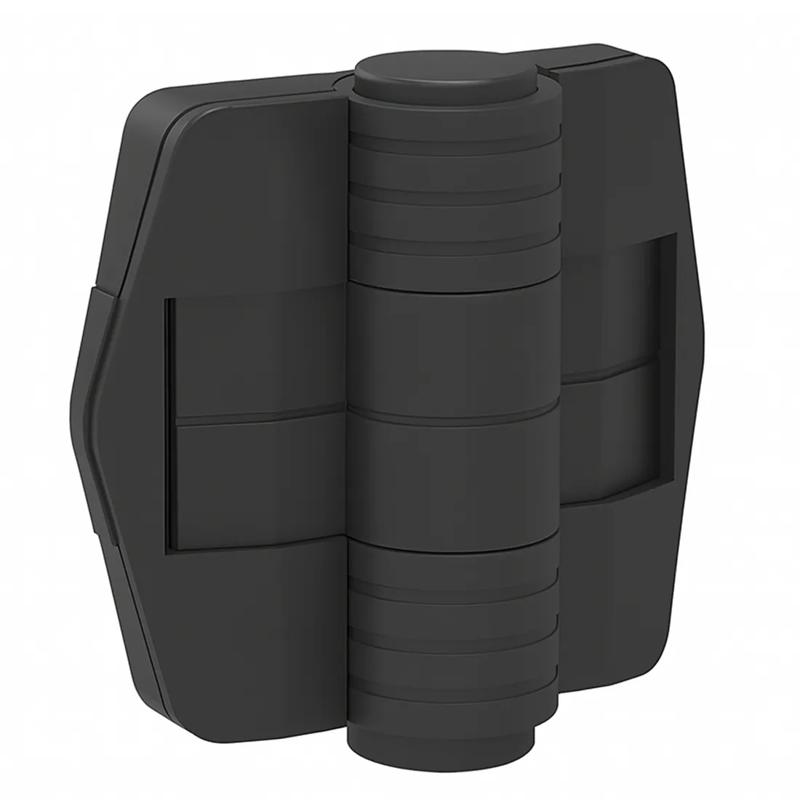

SR2599 - Indexing (Detent) Hinge
Showing 1-10 of 10
Per page:1-10 of 10

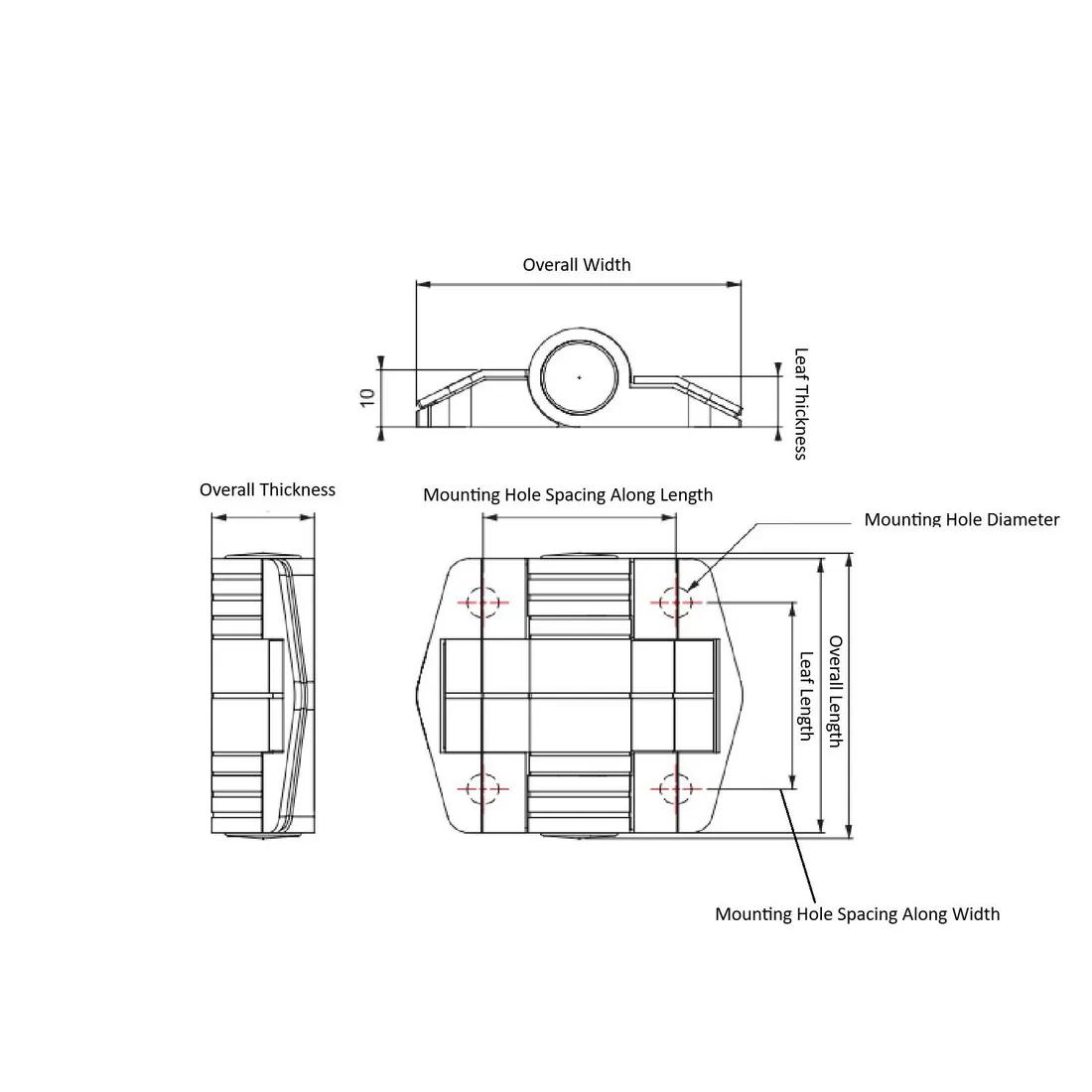

Item Code | Color | Mounting Hole Spacing Along Width A | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Mount Style | Mounting Hole Diameter | Mounting Hole Shape | Finish | Body Material | Maximum Torque | Leaf Thickness | Hinge Type | Mounting Method | Removability | Leaf Length (Seed) | Pin Material | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
25992010 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | No Detens | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 150 ° | |
25992022 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | 1.1 Nm | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 80 ° | |
25992031 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | 0.7 Nm | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 115 ° | |
25992032 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | 1.1 Nm | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 115 ° | |
25992033 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | 1.7 Nm | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 115 ° | |
25992021 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | 0.7 Nm | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 80 ° | |
25992041 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | 0.7 Nm | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 150 ° | |
25992023 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | 1.7 Nm | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 80 ° | |
25992042 | Black | 34.0 mm | Universal | PA;Steel | 57.0 mm | 52.0 mm | 18.0 mm | Surface Mount | 5.5 mm | Recessed Through-Hole | Black Powder-Coated | Nylon 6 | 1.1 Nm | 9.0 mm | Index Hinge | Fastener Screw/Bolts | Fixed | 50.0 mm | Steel | 34.0 m | 150 ° |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
25992010
Color
Black
Mounting Hole Spacing Along Width A
34.0 mm
Mounting Orientation
Universal
Material
PA;Steel
25992022
Color
Black
Mounting Hole Spacing Along Width A
34.0 mm
Mounting Orientation
Universal
Material
PA;Steel
25992031
Color
Black
Mounting Hole Spacing Along Width A
34.0 mm
Mounting Orientation
Universal
Material
PA;Steel
25992032
Color
Black
Mounting Hole Spacing Along Width A
34.0 mm
Mounting Orientation
Universal
Material
PA;Steel
Per page:
1–5 of 11
