SR2499 - Surface Mount Hinge - Adjustable
Showing 1-1 of 1
Per page:1-1 of 1

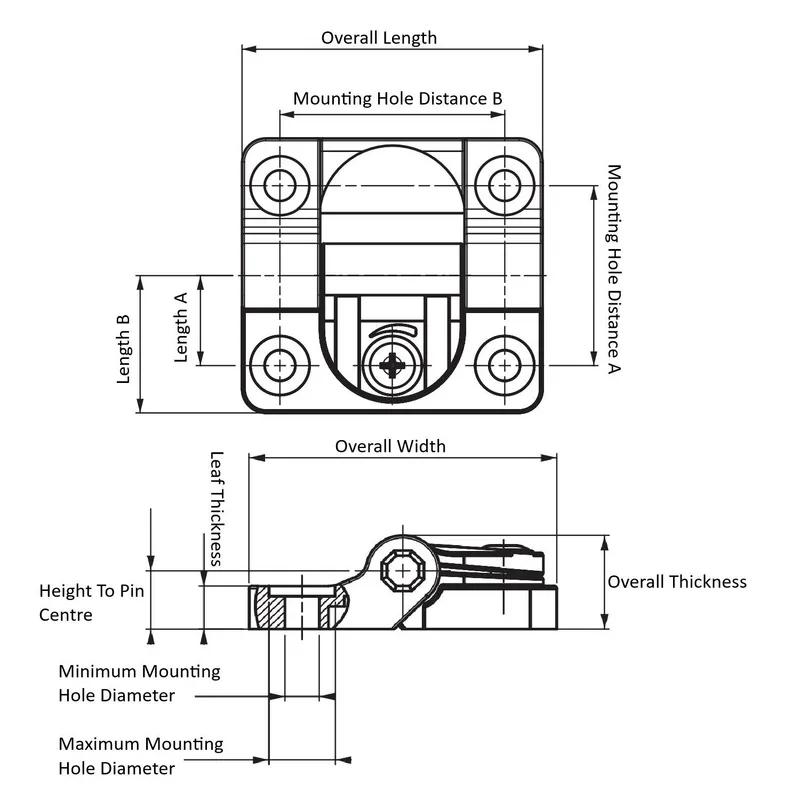

Item Code | Screw Material | Breaking Strength | Overall Width | Overall Length | Overall Thickness | Body Material | Leaf Thickness | Hinge Type | Mounting Method | Working Load (Seed) | Removability | Length A | Maximum Mounting Hole Size | Fixing Type | Minimum Operating Temperature | Thread Size | Finish | Height To Pin Centre | Adjustable Torque | Maximum Rotation | Maximum Operating Temperature | Length B | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
249920 | Stainless Steel | 2350.0 N, 3200.0 N | 58.0 mm | 63.5 mm | 18.5 mm | 30% Glass Fibre Nylon 6 | 8.5 mm | Adjustable Torque Hinge | Fastener Screw/Bolts | 1500.0 N, 22500.0 N | Fixed | 19.0 mm | 12.5 mm | Tornillo | 23 | M6 | Black Powder-Coated | 11.5 mm | Adjustable | 180 ° | 149 | 29.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
249920
Screw Material
Stainless Steel
Breaking Strength
2350.0 N, 3200.0 N
Overall Width
58.0 mm
Overall Length
63.5 mm
