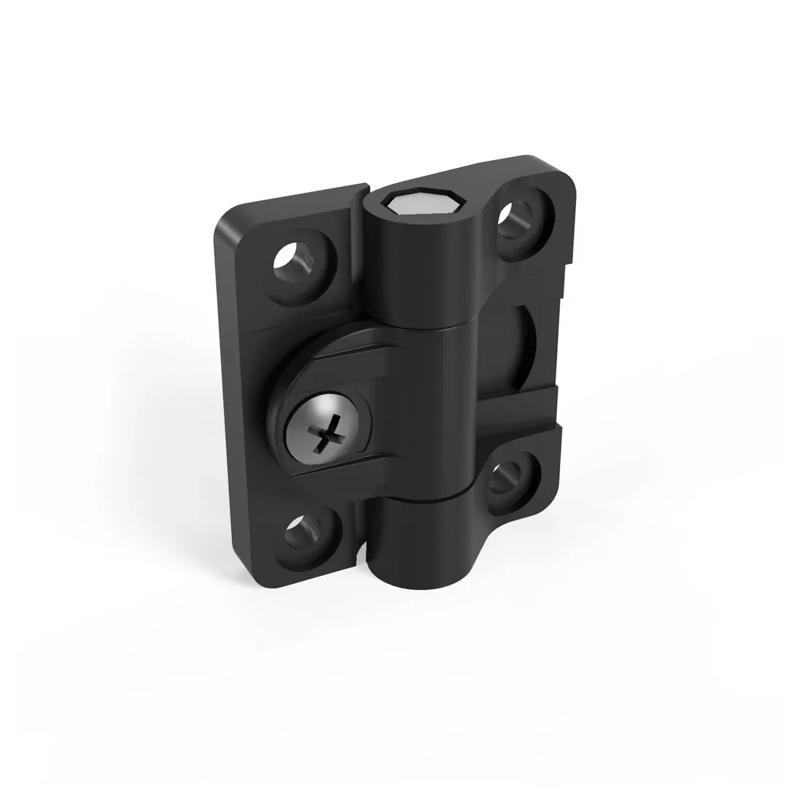

SR2399 - Surface Mount Hinge - Adjustable
Showing 1-1 of 1
Per page:1-1 of 1

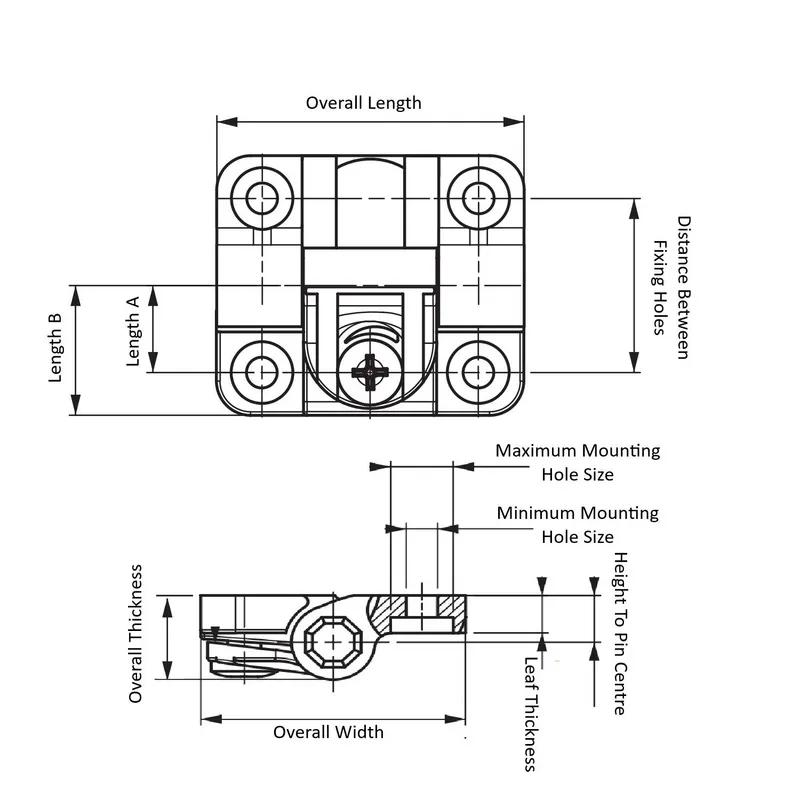

Item Code | Screw Material | Breaking Strength | Overall Width | Overall Length | Overall Thickness | Body Material | Height To Pin Centre | Leaf Thickness | Hinge Type | Mounting Method | Working Load (Seed) | Removability | Length A | Maximum Mounting Hole Size | Minimum Operating Temperature | Thread Size | Finish | Maximum Rotation | Maximum Operating Temperature | Length B | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
239920 | Stainless Steel | 1100.0 N, 1800.0 N | 38.0 mm | 45.0 mm | 13.5 mm | 30% Glass Fibre Nylon 6 | 7.5 mm | 6.0 mm | Bisagra ajustable | Tornillos/pernos de sujeción | 700.0 N, 1400.0 N | Fijo | 13.0 mm | 9.0 mm | 23 | M4 | Black Powder-Coated | 180 ° | 149 | 19.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
239920
Screw Material
Stainless Steel
Breaking Strength
1100.0 N, 1800.0 N
Overall Width
38.0 mm
Overall Length
45.0 mm
