SR199 - Surface Mount Hinges
Showing 1-2 of 2
Per page:1-2 of 2

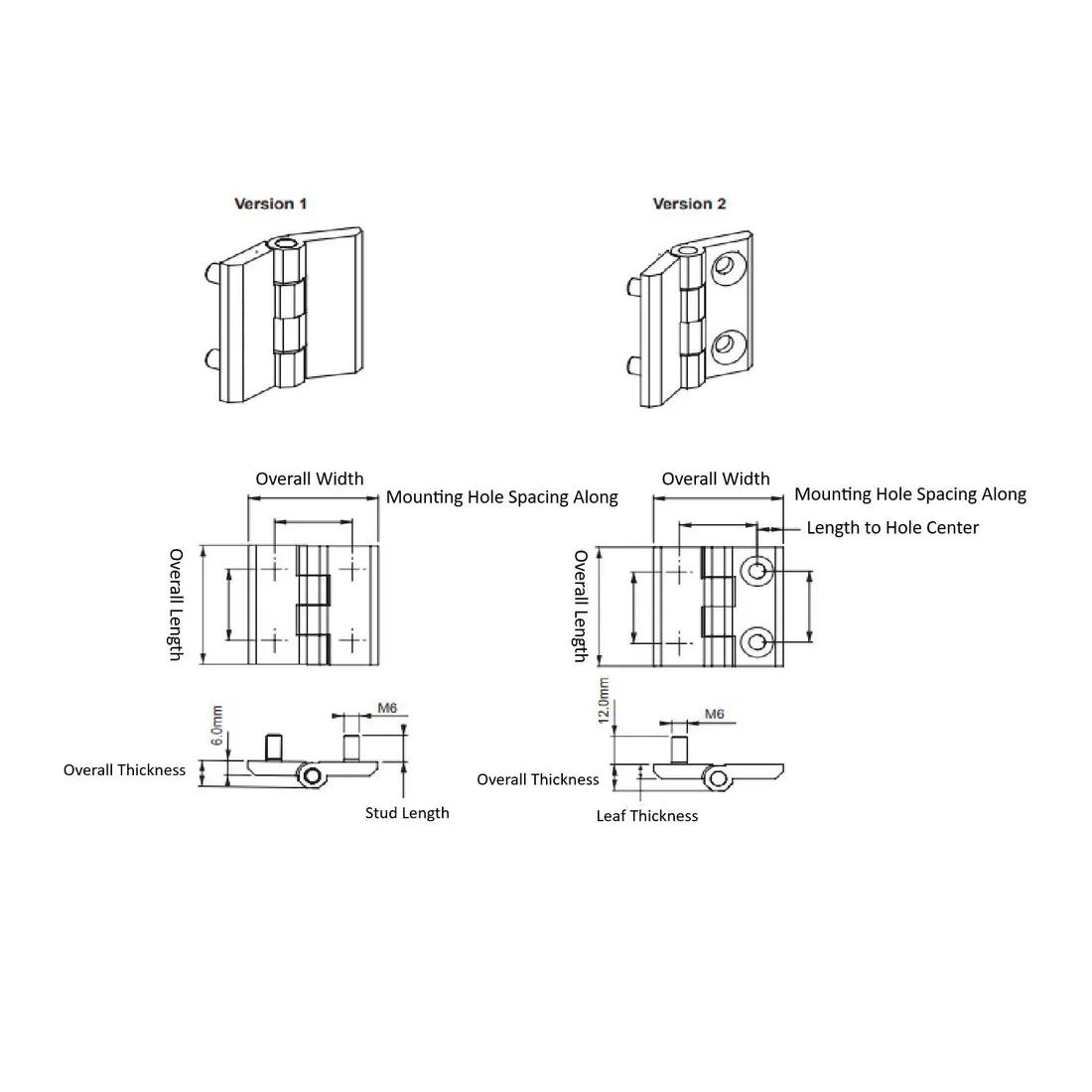

Item Code | Stud Length | Leaf Shape | Color | Mounting Hole Spacing Along Width | Material | Overall Width | Overall Length | Overall Thickness | Pin Material | Finish | Body Material | Leaf Thickness | Hinge Type | Stud Thread Size | Maximum Rotation | Mounting Method | Removability | Mounting Orientation | Mounting Hole Spacing Along Length | Mounting Hole Spacing Along Width A | Length to Hole Center | Mounting Hole Spacing Along Width B | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
199201 | 12.0 mm | Rectangular | Black | 30.0 mm | PA;Stainless Steel | 50.0 mm | 50.0 mm | 11.0 mm | Stainless Steel | Black Powder-Coated | 30% Glass Fibre Nylon 6 | 6.0 mm | Butt Hinge | M6 | 270 ° | Fastener Nuts | Fixed | Universal | 30.0 mm | - | - | - | |
199202 | 12.0 mm | Rectangular | Black | - | Nylon 6;Stainless Steel | 50.0 mm | 50.0 mm | 11.0 mm | Stainless Steel | Black Powder-Coated | - | 6.0 mm | Butt Hinge | M6 | 270 ° | Fastener Nuts, Screw/Bolts | Fixed | Universal | 30.0 mm | 30.0 mm | 10.0 mm | 30.0 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
199201
Stud Length
12.0 mm
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width
30.0 mm
199202
Stud Length
12.0 mm
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width A
30.0 mm
