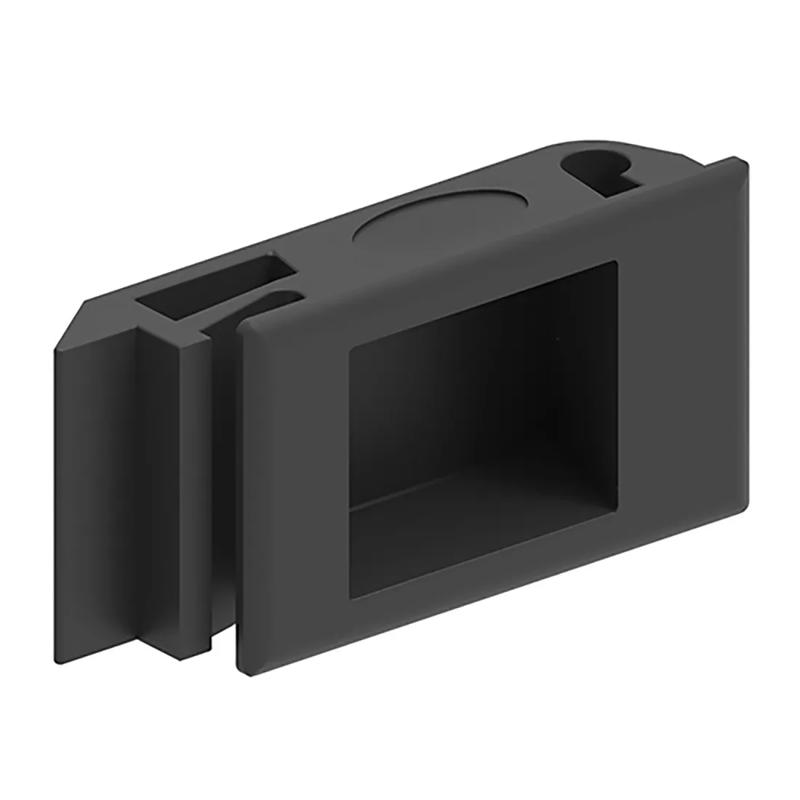

SR71 - Sliding Lock/Latch
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Spring Material | Material | Face Width | Minimum Compatible Door Thickness | Maximum Compatible Door Thickness | Base Height | Latch Style | Mount Type | Color | Face Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
07115 | Stainless Steel | ABS | 25.3 mm | 1.2 mm | 1.5 mm | 6.8 mm | Sliding Latch | Easy Install | Black | 37.3 mm | |
07112 | Stainless Steel | ABS | 25.3 mm | 0.8 mm | 1.2 mm | 6.8 mm | Sliding Latch | Easy Install | Black | 37.3 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
07115
Spring Material
Stainless Steel
Material
ABS
Face Width
25.3 mm
Minimum Compatible Door Thickness
1.2 mm
07112
Spring Material
Stainless Steel
Material
ABS
Face Width
25.3 mm
Minimum Compatible Door Thickness
0.8 mm
