SR471 - Sliding Latch - Mini
Showing 1-1 of 1
Per page:1-1 of 1

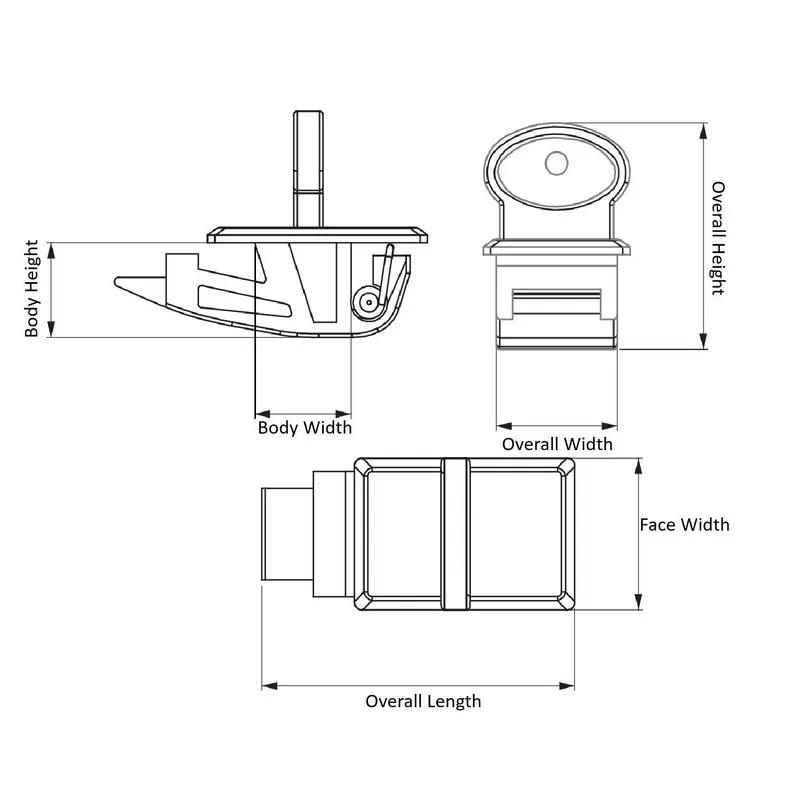

Item Code | Color | Spring Material | Overall Length | Maximum Panel Thickness | Mounting Hole Width | Minimum Panel Thickness | Body Material | Overall Height | Latch Style | Face Width | Overall Width | Body Height | Mounting Hole Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
47112 | Black | Stainless Steel | 42.7 mm | 1.2 mm | 17.0 mm | 0.8 mm | ABS | 30.0 mm | Sliding Latch | 20.0 mm | 16.5 mm | 12.5 mm | 19.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
47112
Color
Black
Spring Material
Stainless Steel
Overall Length
42.7 mm
Maximum Panel Thickness
1.2 mm
