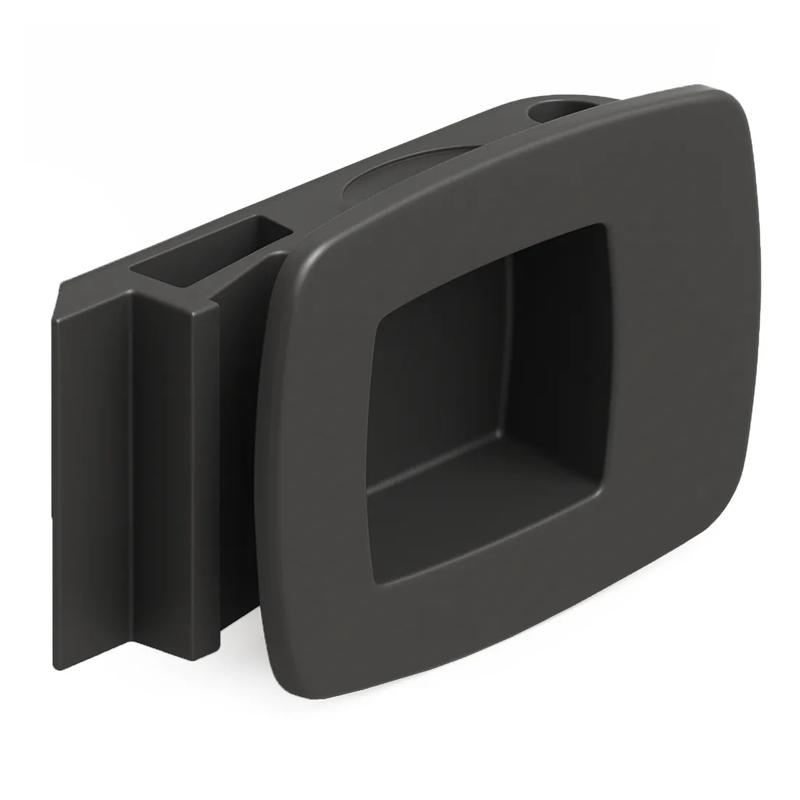

SR371 - Sliding Latch
Showing 1-2 of 2
Per page:1-2 of 2

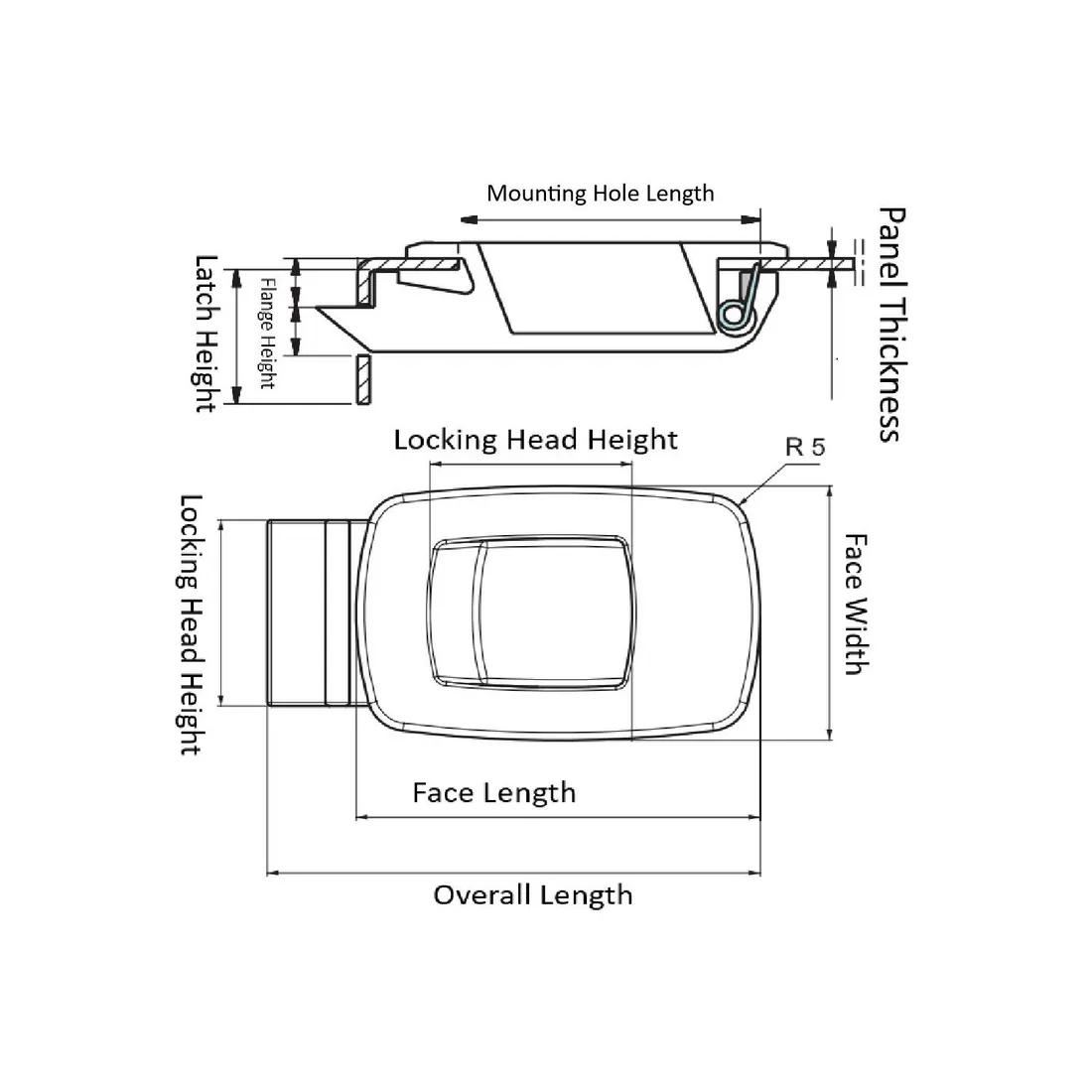

Item Code | Face Width | Overall Length | Maximum Panel Thickness | Latch Height | Mounting Hole Width | Minimum Panel Thickness | Flange Height | Latch Material | Mounting Hole Length | Color | Face Length | Spring Material | Mounting Orientation | Body Material | Key Type | Locking Head Height | Latch Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
37115 | 34.0 mm | 61.0 mm | 1.5 mm | 18.0 mm | 25.3 mm | 1.2 mm | 6.8 mm | ABS | 37.3 mm | Black | 50.0 mm | Stainless Steel | Universal | ABS | No Key | 25.0 mm | Sliding Latch | |
37112 | 34.0 mm | 61.0 mm | 1.2 mm | 18.0 mm | 25.3 mm | 0.8 mm | 6.8 mm | ABS | 37.3 mm | Black | 50.0 mm | Stainless Steel | Universal | ABS | No Key | 25.0 mm | Sliding Latch |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
37115
Face Width
34.0 mm
Overall Length
61.0 mm
Maximum Panel Thickness
1.5 mm
Latch Height
18.0 mm
37112
Face Width
34.0 mm
Overall Length
61.0 mm
Maximum Panel Thickness
1.2 mm
Latch Height
18.0 mm
