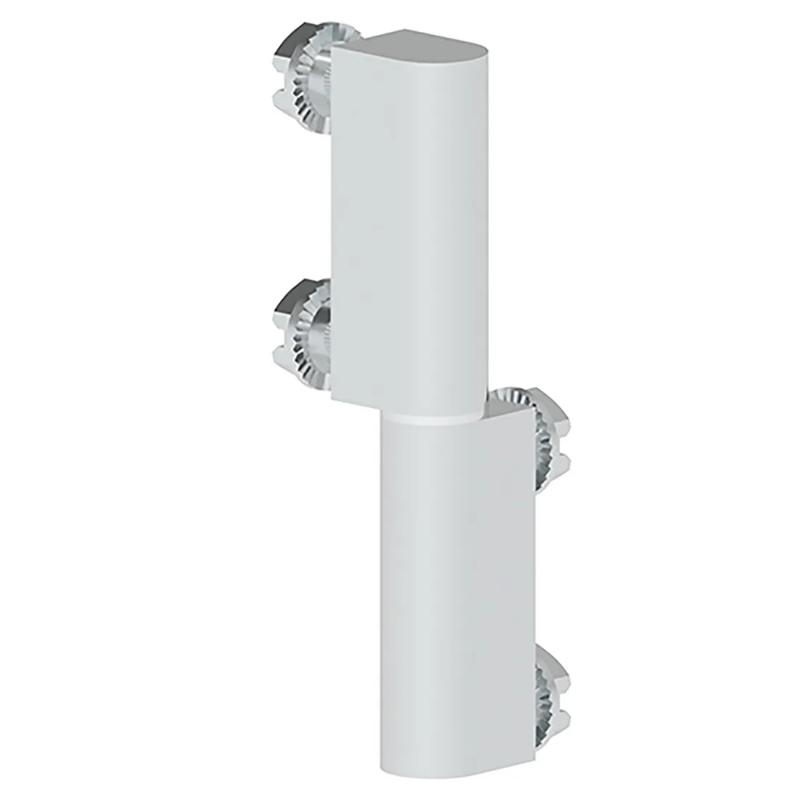

SR993 - Lift-Off Side Hinge
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Color | Mounting Hole Spacing Along Length B | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Length to Hole Center | Finish | Body Material | Leaf Thickness | Leaf Width | Mounting Method | Removability | Body Coating | Mount Style | Leaf Length (Seed) | Pin Material | Screw/Stud Size | Hinge Type | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9933119 | Silver | 29.0 mm | Universal | Brass | 16.0 mm | 81.0 mm | 19.0 mm | 5.5 mm | Chrome Plated | Brass | 12.0 mm | 19.0 mm | Supplied Fasteners | Lift-Off | Chrome-Plated | Side Mount | 40.0 mm | Stainless Steel | M6 | Side Mount Hinge | 29.0 mm | 180 ° | |
9933121 | Silver | 29.0 mm | Universal | Brass | 16.0 mm | 81.0 mm | 21.0 mm | 5.5 mm | Chrome Plated | Brass | 12.0 mm | 21.0 mm | Supplied Fasteners | Lift-Off | Chrome-Plated | Side Mount | 40.0 mm | Stainless Steel | M6 | Side Mount Hinge | 29.0 mm | 180 ° | |
9933116 | Silver | 29.0 mm | Universal | Brass | 16.0 mm | 81.0 mm | 16.0 mm | 5.5 mm | Chrome Plated | Brass | 12.0 mm | 16.0 mm | Supplied Fasteners | Lift-Off | Chrome-Plated | Side Mount | 40.0 mm | Stainless Steel | M6 | Side Mount Hinge | 29.0 mm | 180 ° |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
9933119
Color
Silver
Mounting Hole Spacing Along Length B
29.0 mm
Mounting Orientation
Universal
Material
Brass
9933121
Color
Silver
Mounting Hole Spacing Along Length B
29.0 mm
Mounting Orientation
Universal
Material
Brass
9933116
Color
Silver
Mounting Hole Spacing Along Length B
29.0 mm
Mounting Orientation
Universal
Material
Brass
