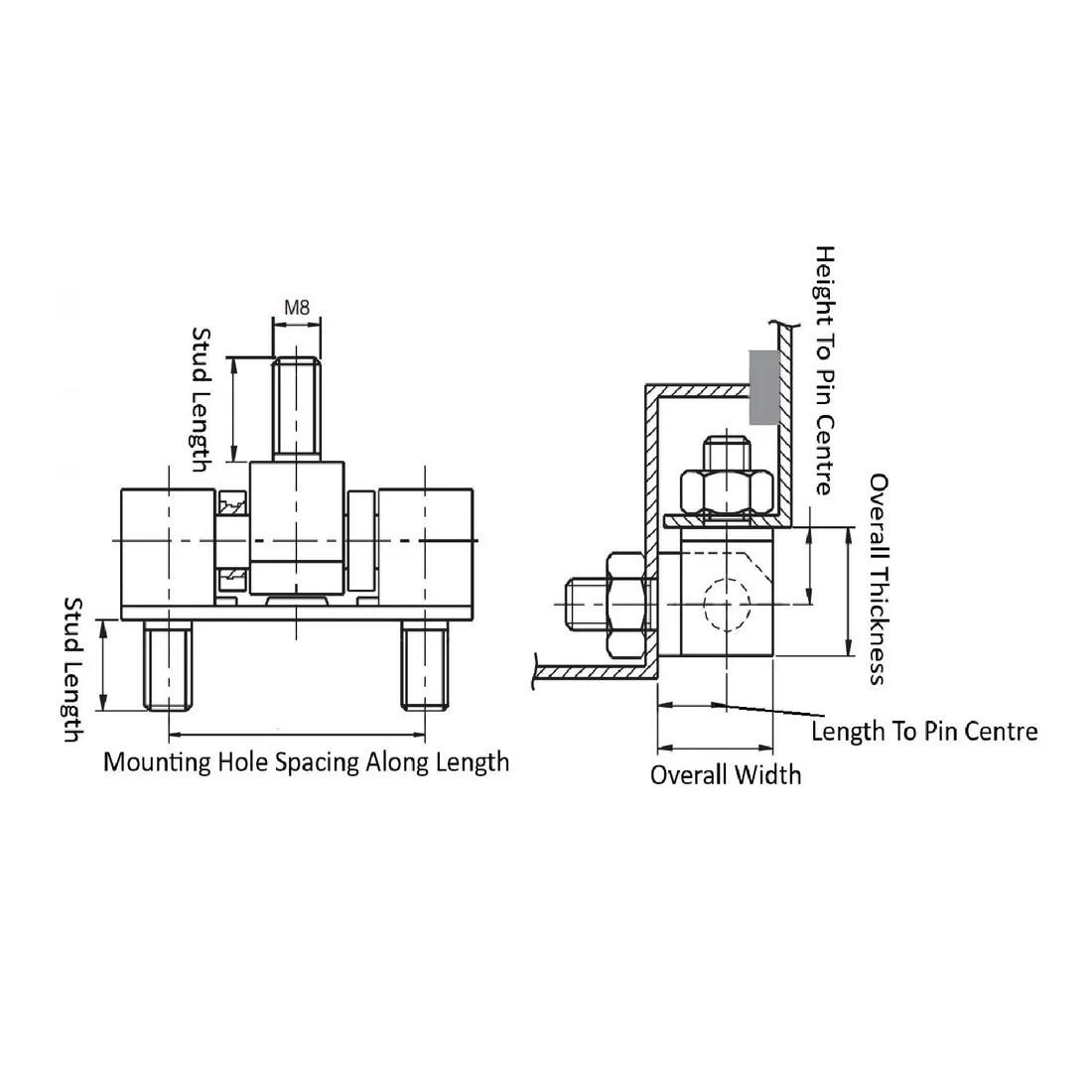

Item Code | Stud Length | Color | Mounting Orientation | Material | Overall Width | Overall Thickness | Mount Style | Body Material | Height To Pin Centre | Leaf Thickness | Mounting Method | Length To Pin Centre | Removability | Screw/Stud Size | Hinge Type | Mounting Hole Spacing Along Length A | Maximum Rotation | Finish | Mounting Hole Spacing Along Length | Body Coating | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
09330 | 14.0 mm, 16.0 mm | Brass | Universal | Brass | 20.0 mm | 20.0 mm | Side Mount | Brass | 10.0 mm | 16.0 mm | Nuts | 13.0 mm | Fixed | M8 | Side Mount Hinge | 43.0 mm | 100 ° | - | - | - | |
09331 | 14.0 mm, 16.0 mm | Silver | Universal | Brass | 20.0 mm | 20.0 mm | Side Mount | Brass | 10.0 mm | 16.0 mm | Nuts | 13.0 mm | Fixed | M8 | Side Mount Hinge | - | 100 ° | Chrome Plated | 43.0 mm | Chrome-Plated |
Stud Length
14.0 mm, 16.0 mm
Color
Brass
Mounting Orientation
Universal
Material
Brass
Stud Length
14.0 mm, 16.0 mm
Color
Silver
Material
Brass
Overall Width
20.0 mm
