SR92 - Side Hinge (12mm) - Version 3
Showing 1-8 of 8
Per page:1-8 of 8

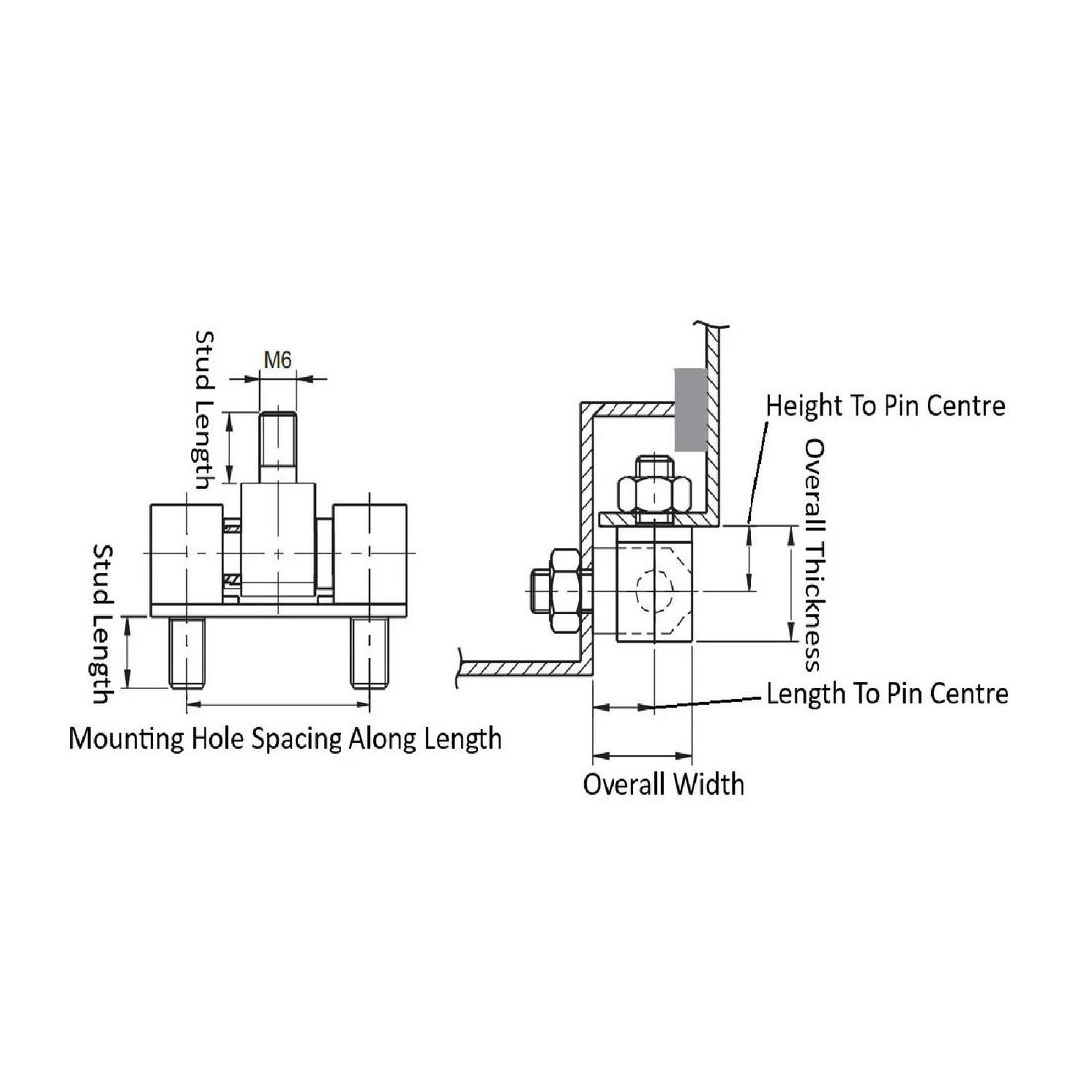

Item Code | Stud Length | Color | Material | Overall Width | Overall Thickness | Pin Material | Finish | Body Material | Height To Pin Centre | Leaf Thickness | Maximum Rotation | Mounting Method | Length To Pin Centre | Removability | Mounting Orientation | Mounting Hole Spacing Along Length | Body Coating | Mount Style | Screw/Stud Size | Hinge Type | Mounting Hole Spacing Along Length A | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
09231890 | 10.0 mm | Silver | Brass | 16.0 mm | 16.0 mm | Stainless Steel | Chrome Plated | Brass | 9.0 mm | 12.0 mm | 90 ° | Nuts | 10.0 mm | Fixed | Universal | 30.0 mm | Chrome-Plated | Side Mount | M8 | Side Mount Hinge | - | |
09230690 | 10.0 mm | Brass | Brass | 16.0 mm | 16.0 mm | Stainless Steel | - | Brass | 9.0 mm | 12.0 mm | 90 ° | Nuts | 10.0 mm | Fixed | Universal | - | - | Side Mount | M6 | Side Mount Hinge | 30.0 mm | |
092316180 | 10.0 mm | Silver | Brass | 16.0 mm | 16.0 mm | Stainless Steel | Chrome Plated | Brass | 9.0 mm | 12.0 mm | 180 ° | Nuts | 10.0 mm | Fixed | Universal | 30.0 mm | Chrome-Plated | Side Mount | M6 | Side Mount Hinge | - | |
092308180 | 10.0 mm | Brass | Brass | 16.0 mm | 16.0 mm | Stainless Steel | - | Brass | 9.0 mm | 12.0 mm | 180 ° | Nuts | 10.0 mm | Fixed | Universal | - | - | Side Mount | M8 | Side Mount Hinge | 30.0 mm | |
09230890 | 10.0 mm | Brass | Brass | 16.0 mm | 16.0 mm | Stainless Steel | - | Brass | 9.0 mm | 12.0 mm | 90 ° | Nuts | 10.0 mm | Fixed | Universal | - | - | Side Mount | M8 | Side Mount Hinge | 30.0 mm | |
092306180 | 10.0 mm | Brass | Brass | 16.0 mm | 16.0 mm | Stainless Steel | - | Brass | 9.0 mm | 12.0 mm | 180 ° | Nuts | 10.0 mm | Fixed | Universal | - | - | Side Mount | M6 | Side Mount Hinge | 30.0 mm | |
09231690 | 10.0 mm | Silver | Brass | 16.0 mm | 16.0 mm | Stainless Steel | Chrome Plated | Brass | 9.0 mm | 12.0 mm | 90 ° | Nuts | 10.0 mm | Fixed | Universal | 30.0 mm | Chrome-Plated | Side Mount | M6 | Side Mount Hinge | - | |
092318180 | 10.0 mm | Silver | Brass | 16.0 mm | 16.0 mm | Stainless Steel | Chrome Plated | Brass | 9.0 mm | 12.0 mm | 180 ° | Nuts | 10.0 mm | Fixed | Universal | 30.0 mm | Chrome-Plated | Side Mount | M8 | Side Mount Hinge | - |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
09231890
Stud Length
10.0 mm
Color
Silver
Material
Brass
Overall Width
16.0 mm
09230690
Stud Length
10.0 mm
Color
Brass
Mounting Orientation
Universal
Material
Brass
092316180
Stud Length
10.0 mm
Color
Silver
Material
Brass
Overall Width
16.0 mm
092308180
Stud Length
10.0 mm
Color
Brass
Mounting Orientation
Universal
Material
Brass
Per page:
1–5 of 9
