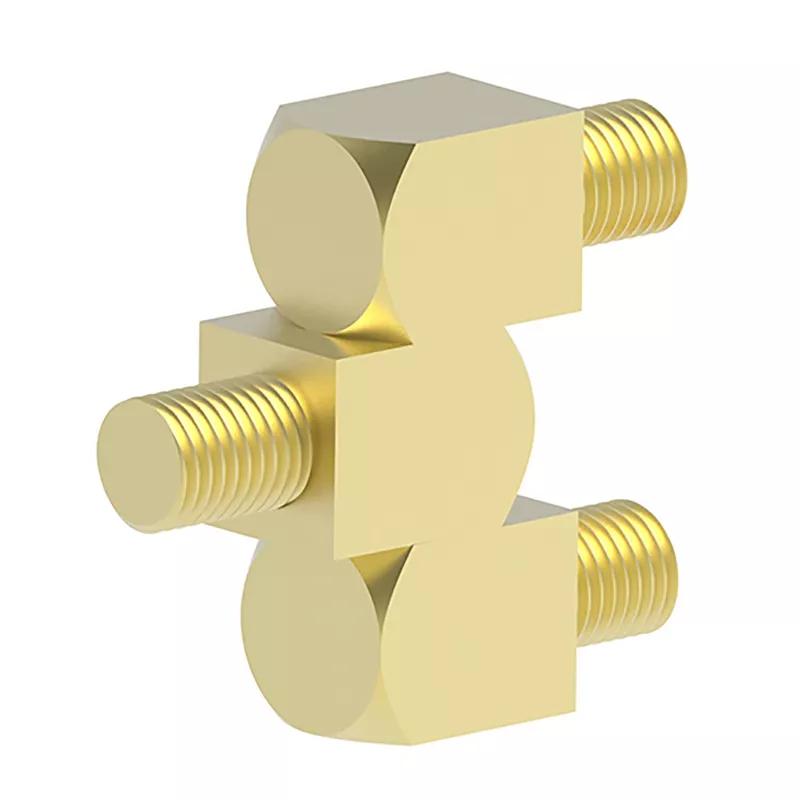

SR91 - Side Hinge (12mm) - Version 2
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Stud Length | Color | Mounting Orientation | Material | Overall Width | Overall Thickness | Mount Style | Body Material | Height To Pin Centre | Leaf Thickness | Mounting Method | Length To Pin Centre | Removability | Screw/Stud Size | Hinge Type | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
09130 | 10.0 mm | Brass | Universal | Brass | 15.5 mm | 15.5 mm | Side Mount | Brass | 9.6 mm | 12.0 mm | Nuts | 9.6 mm | Fixed | M8 | Side Mount Hinge | 24.0 mm | 180 ° |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
09130
Stud Length
10.0 mm
Color
Brass
Mounting Orientation
Universal
Material
Brass
