SR793 - Side Hinge
Showing 1-1 of 1
Per page:1-1 of 1

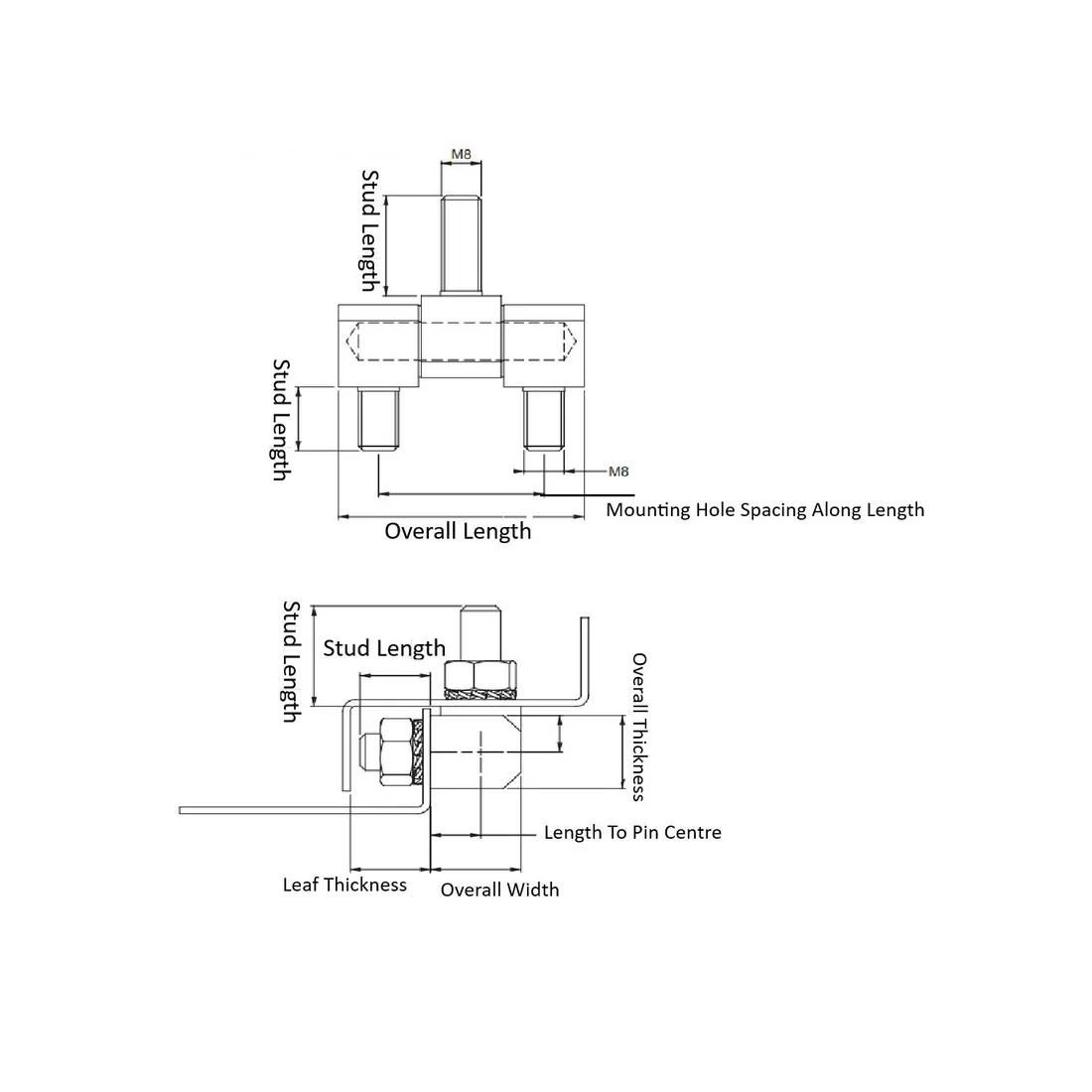

Item Code | Stud Length | Color | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Pin Material | Finish | Body Material | Leaf Thickness | Mounting Method | Length To Pin Centre | Removability | Body Coating | Mount Style | Screw/Stud Size | Hinge Type | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
79363 | 22.0 mm, 14.0 mm | Silver | Universal | Steel | 18.0 mm | 49.0 mm | 16.0 mm | Stainless Steel | Zinc-Plated | Steel | 16.0 mm | Nuts | 10.0 mm | Fixed | Zinc-Plated | Side Mount | M8 | Side Mount Hinge | 33.0 mm | 180 ° |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
79363
Stud Length
22.0 mm, 14.0 mm
Color
Silver
Mounting Orientation
Universal
Material
Steel
