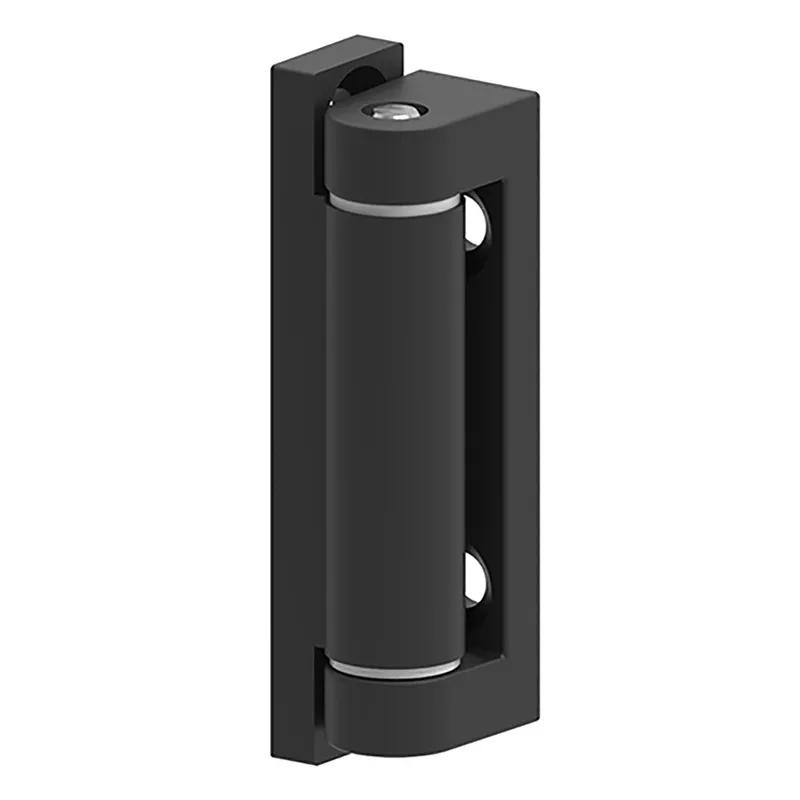

SR593 - Side Hinge
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Color | Mounting Hole Spacing Along Length B | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Pin Material | Finish | Body Material | Height To Pin Centre | Leaf Thickness | Mounting Method | Removability | Body Coating | Mount Style | Screw/Stud Size | Hinge Type | Leaf Height | Mounting Hole Spacing Along Length A | Maximum Rotation | Mounting Hole Spacing Along Width A | Mounting Hole Spacing Along Width B | Leaf Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5931119 | Silver | 34.0 mm | Universal | Zinc Alloy | 19.0 mm | 66.0 mm | 19.5 mm | Stainless Steel | Chrome Plated | Zinc Alloy | 19.0 mm | 14.0 mm | Screw, Bolt | Fixed | Chrome-Plated | Side Mount | M5 | Side Mount Hinge | 60.0 mm | 54.0 mm | 180 ° | - | - | - | |
5931219 | Black | - | Universal | Zinc Alloy | 20.0 mm | 66.0 mm | 19.0 mm | Stainless Steel | Black Powder-Coated | Zinc Alloy | - | 14.0 mm | Screw, Bolt | Fixed | Powder-Coated | Side Mount | M5 | Side Mount Hinge | 60.0 mm | - | 180 ° | 54.0 mm | 34.0 mm | 14.0 mm | |
5931125 | Silver | - | Universal | Zinc Alloy | 20.0 mm | 60.0 mm | 25.5 mm | Stainless Steel | Chrome Plated | Zinc Alloy | 19.0 mm | 14.0 mm | Screw, Bolt | Fixed | Chrome-Plated | Side Mount | M5 | Side Mount Hinge | - | 34.0 mm | 180 ° | - | - | 14.0 mm | |
5931225 | Black | - | Universal | Zinc Alloy | 20.0 mm | 60.0 mm | 25.5 mm | Stainless Steel | Black Powder-Coated | Zinc Alloy | 19.0 mm | 14.0 mm | Screw, Bolt | Fixed | Powder-Coated | Side Mount | M5 | Side Mount Hinge | - | 34.0 mm | 180 ° | - | - | 14.0 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
5931119
Color
Silver
Mounting Hole Spacing Along Length B
34.0 mm
Mounting Orientation
Universal
Material
Zinc Alloy
5931219
Color
Black
Mounting Hole Spacing Along Width A
54.0 mm
Mounting Orientation
Universal
Material
Zinc Alloy
5931125
Color
Silver
Mounting Orientation
Universal
Material
Zinc Alloy
Overall Width
20.0 mm
5931225
Color
Black
Mounting Orientation
Universal
Material
Zinc Alloy
Overall Width
20.0 mm
