SR493 - Side Hinge - Lift-Off
Showing 1-4 of 4
Per page:1-4 of 4

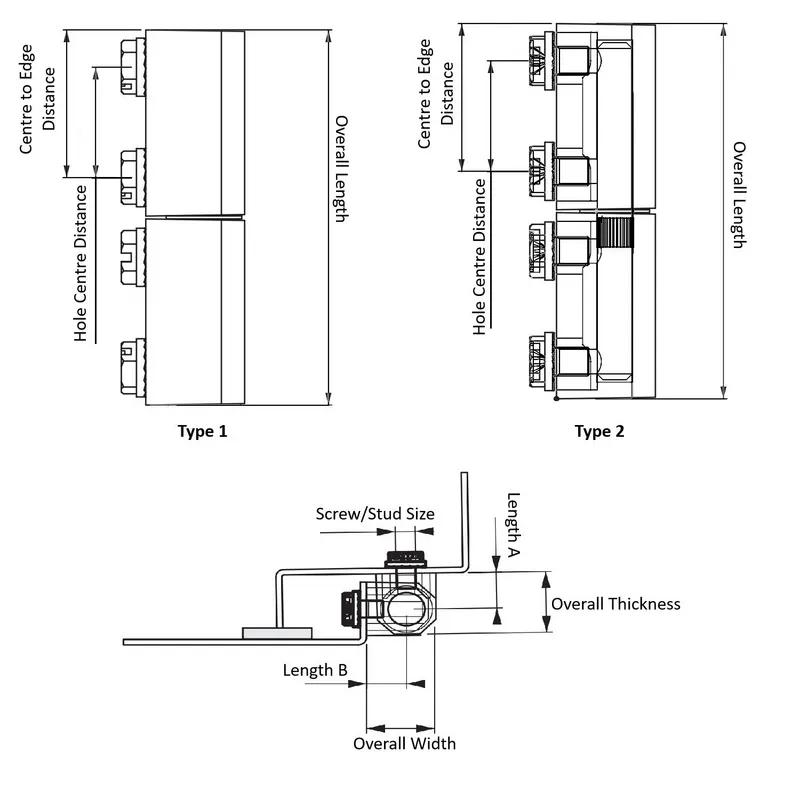

Item Code | Overall Width | Overall Length | Overall Thickness | Pin Material | Finish | Body Material | Centre to Edge Distance | Mounting Method | Removability | Screw/Stud Size | Hinge Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
493111M | 17.0 mm | 64.5 mm | 17.0 mm | Zinc Alloy | Chrome Plated | Zinc Alloy | 25.0 mm | Supplied Fasteners | Lift-Off | M5 | Side Mount Hinge | |
493121M | 17.0 mm | 64.5 mm | 17.0 mm | Zinc Alloy | Black Powder-Coated | Zinc Alloy | 25.5 mm | Supplied Fasteners | Lift-Off | M5 | Side Mount Hinge | |
493112M | 17.0 mm | 64.5 mm | 17.0 mm | Stainless Steel | Black Powder-Coated | Zinc Alloy | 25.0 mm | Supplied Fasteners | Lift-Off | M5 | Side Mount Hinge | |
493122M | 17.0 mm | 64.5 mm | 17.0 mm | Stainless Steel | Black Powder-Coated | Zinc Alloy | 25.5 mm | Supplied Fasteners | Lift-Off | M5 | Side Mount Hinge |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
493111M
Overall Width
17.0 mm
Overall Length
64.5 mm
Overall Thickness
17.0 mm
Pin Material
Zinc Alloy
493121M
Overall Width
17.0 mm
Overall Length
64.5 mm
Overall Thickness
17.0 mm
Pin Material
Zinc Alloy
493112M
Overall Width
17.0 mm
Overall Length
64.5 mm
Overall Thickness
17.0 mm
Pin Material
Stainless Steel
493122M
Overall Width
17.0 mm
Overall Length
64.5 mm
Overall Thickness
17.0 mm
Pin Material
Stainless Steel
