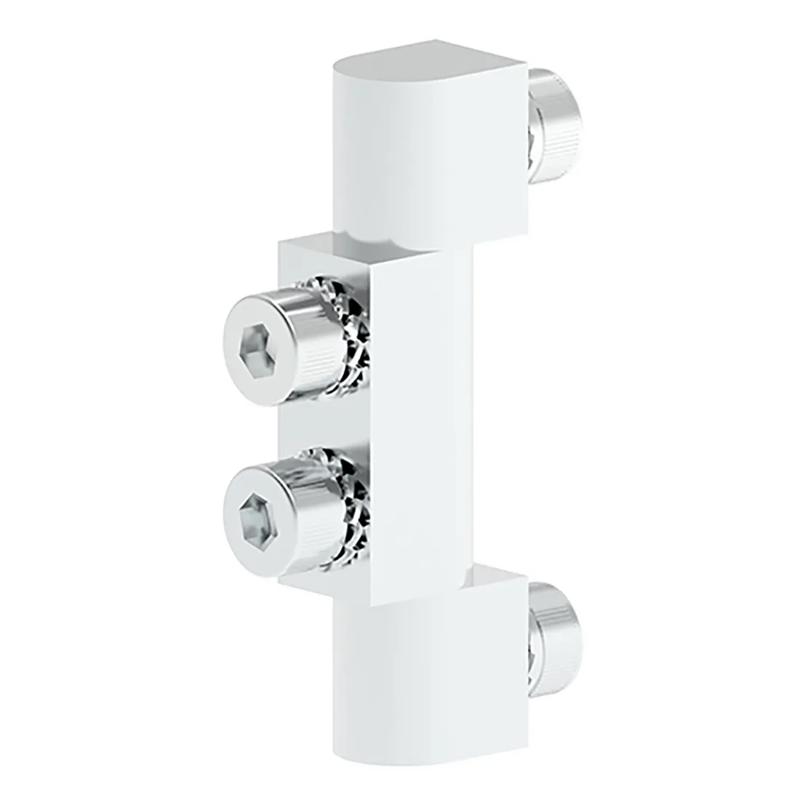

SR393 - Side Hinge - Lift-Off
Showing 1-1 of 1
Per page:1-1 of 1

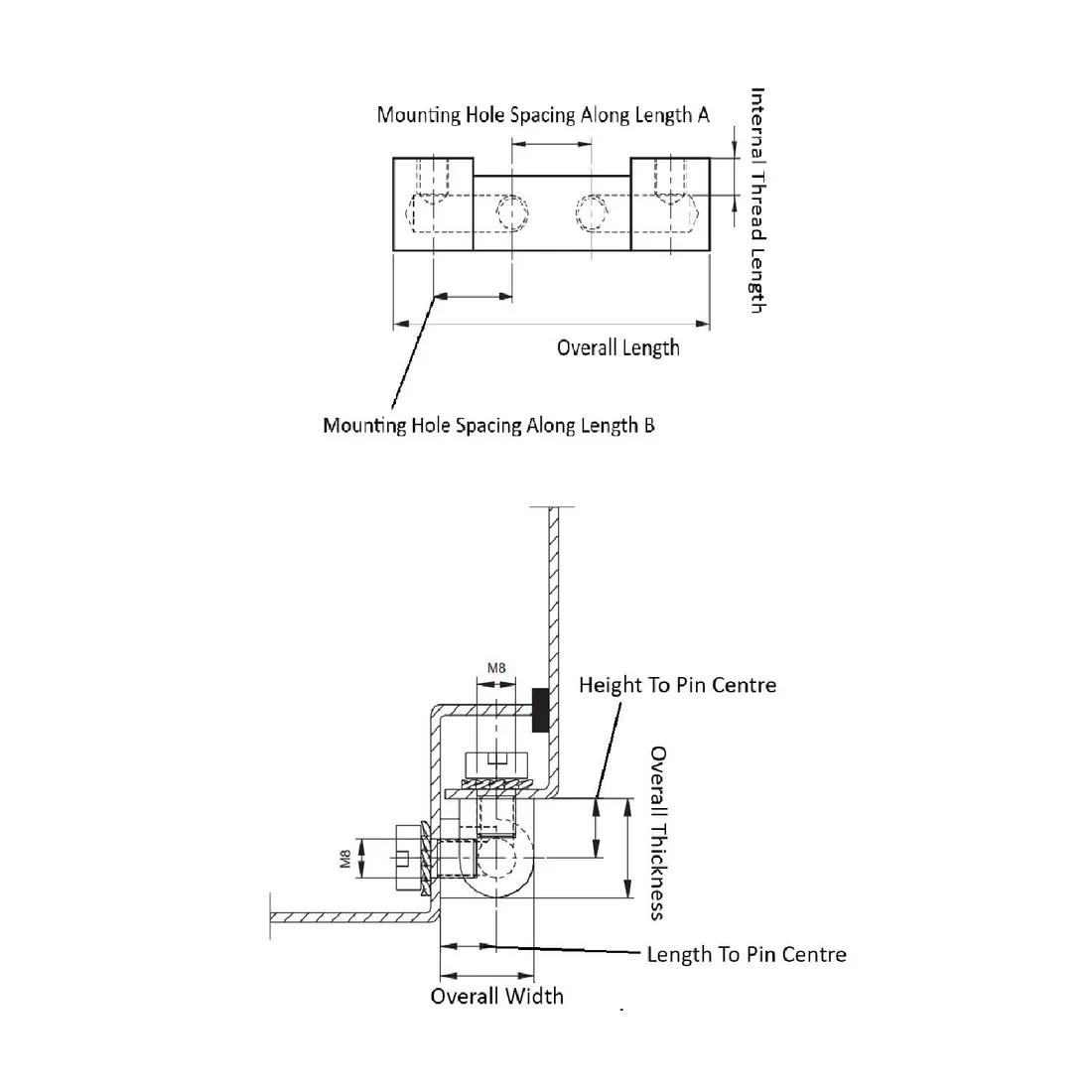

Item Code | Color | Mounting Hole Spacing Along Length B | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Pin Material | Finish | Body Material | Height To Pin Centre | Mounting Method | Length To Pin Centre | Removability | Body Coating | Mount Style | Internal Thread Length | Screw/Stud Size | Hinge Type | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
39331 | Silver | 20.0 mm | Universal | Brass | 20.0 mm | 80.0 mm | 20.0 mm | Stainless Steel | Chrome Plated | Brass | 12.0 mm | Supplied Fasteners | 12.0 mm | Fixed | Chrome-Plated | Side Mount | 8.0 mm | M8 | Side Mount Hinge | 20.0 mm | 180 ° |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
39331
Color
Silver
Mounting Hole Spacing Along Length B
20.0 mm
Mounting Orientation
Universal
Material
Brass
