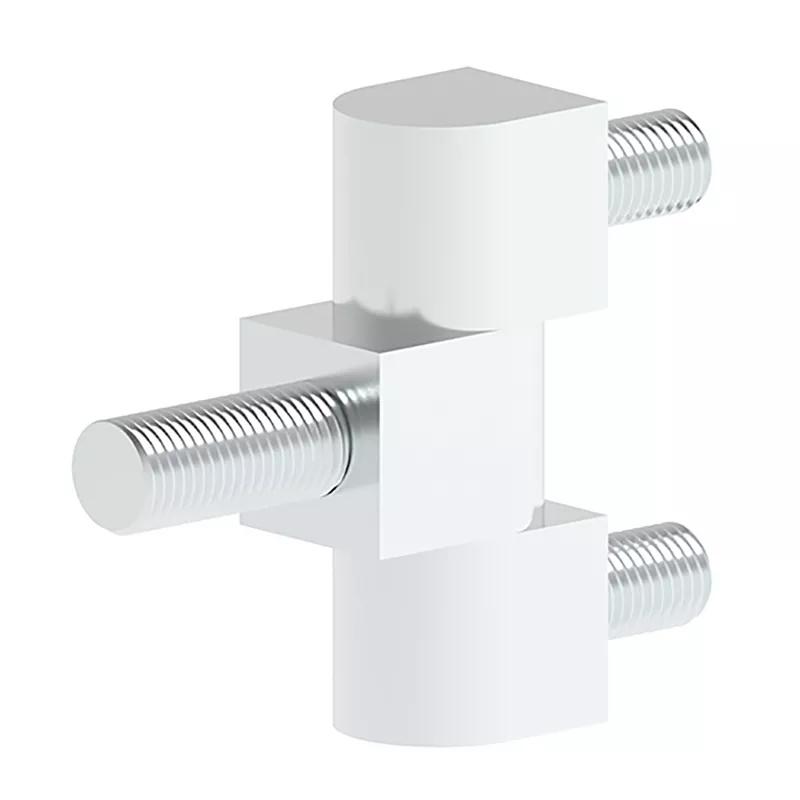

SR193 - Side Hinge (16mm) Version 3
Showing 1-1 of 1
Per page:1-1 of 1

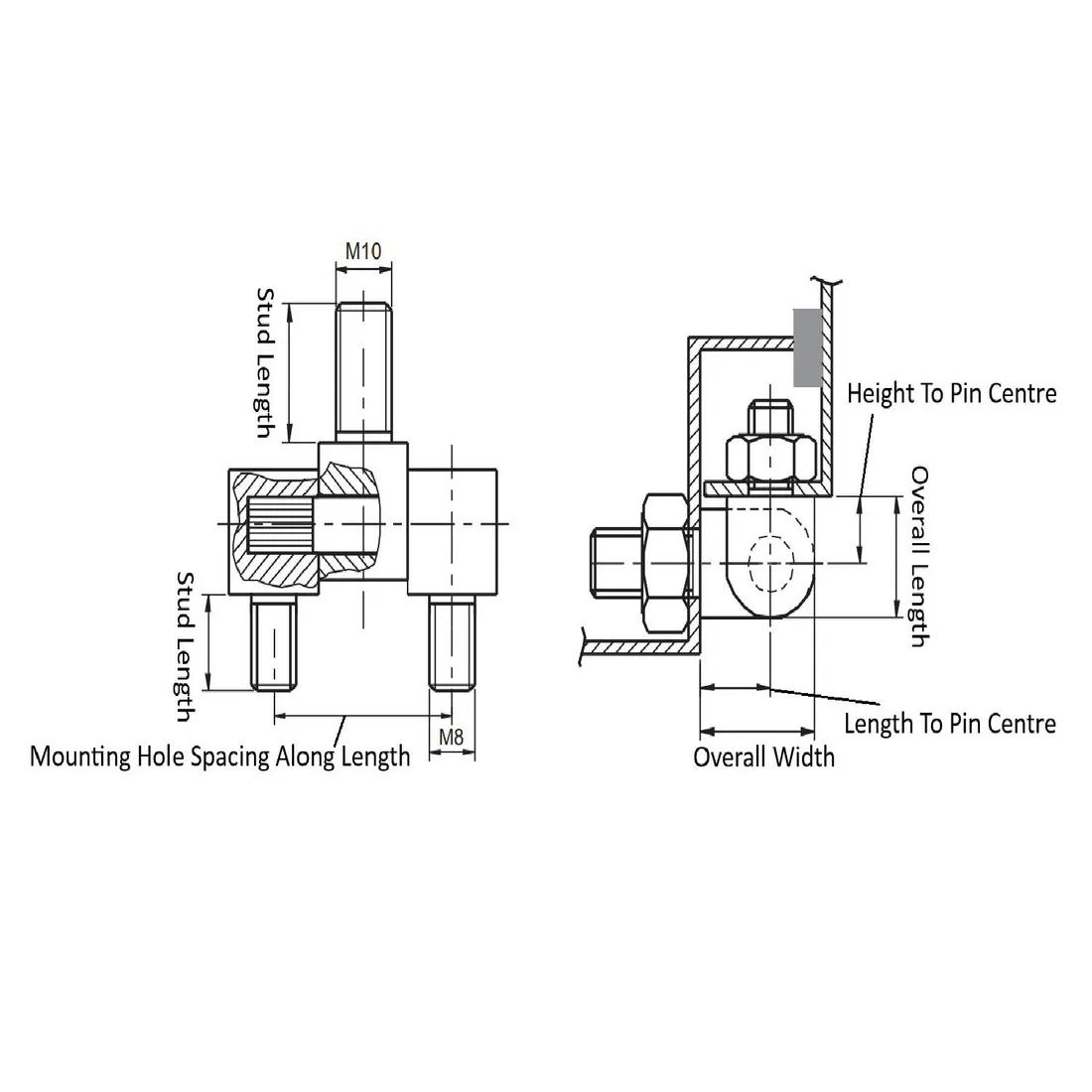

Item Code | Stud Length | Color | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Pin Material | Finish | Body Material | Height To Pin Centre | Leaf Thickness | Mounting Method | Length To Pin Centre | Removability | Body Coating | Mount Style | Screw/Stud Size | Hinge Type | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
19331 | 14.0 mm, 20.0 mm | Silver | Universal | Brass | 21.0 mm | 18.0 mm | 20.0 mm | Stainless Steel | Chrome Plated | Brass | 10.0 mm | 12.0 mm | Nuts | 13.0 mm | Fixed | Chrome-Plated | Side Mount | M8;M10 | Side Mount Hinge | 32.0 mm | 180 ° |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
19331
Stud Length
14.0 mm, 20.0 mm
Color
Silver
Mounting Orientation
Universal
Material
Brass
