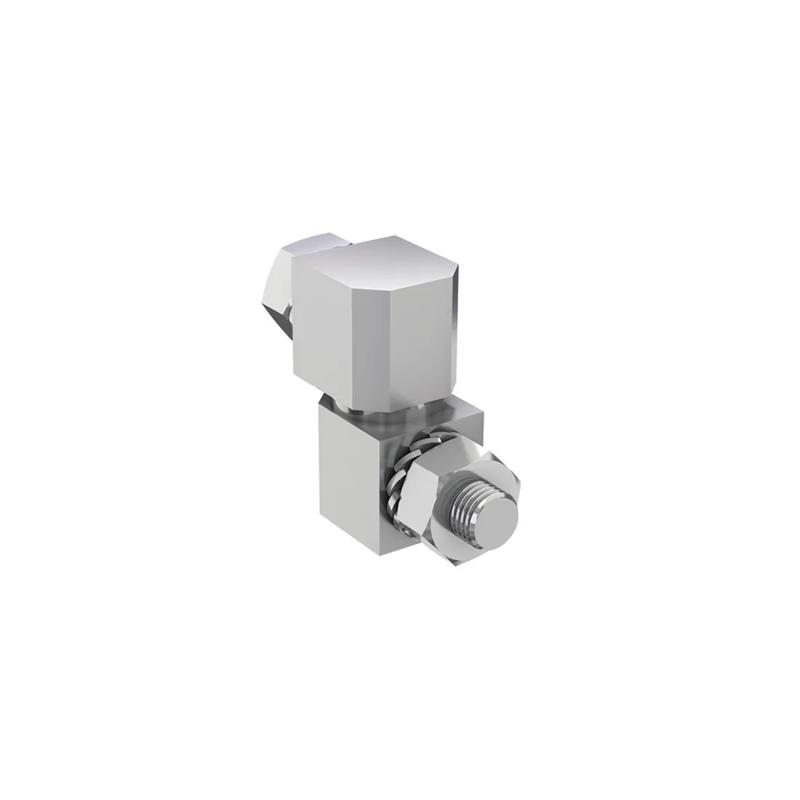

SR191 - Side Hinge - Lift-Off
Showing 1-1 of 1
Per page:1-1 of 1

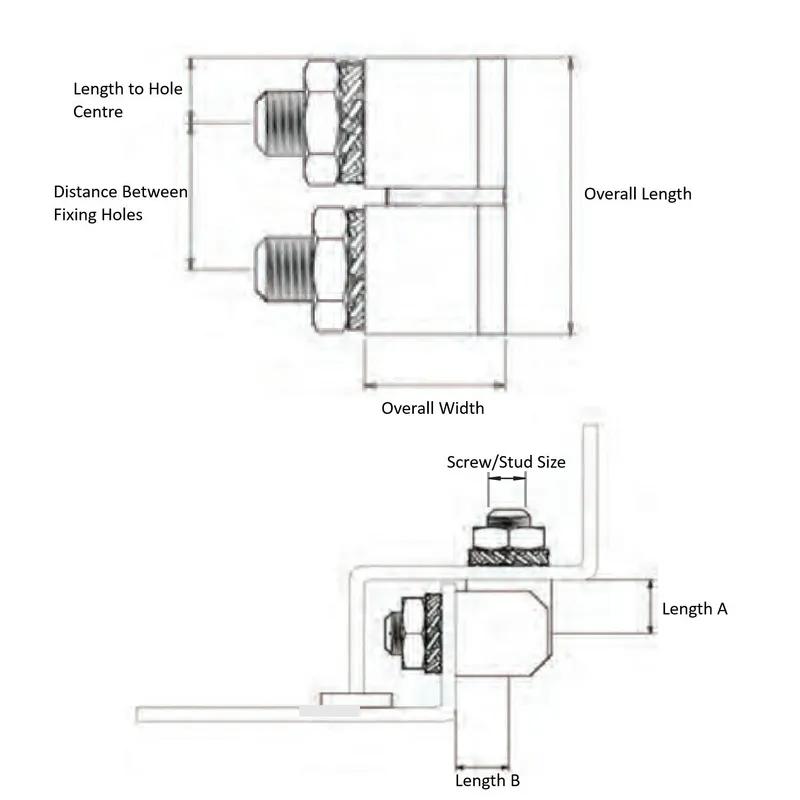

Item Code | Material | Overall Width | Overall Length | Length to Hole Center | Finish | Maximum Rotation | Mounting Method | Removability | Centre to Edge Distance | Leaf Thickness | Screw/Stud Size | Hinge Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
19163M | Steel | 13.0 mm | 25.5 mm | 6.0 mm | Zinc-Plated | 180 ° | Supplied Fasteners | Fixed | 6.0 mm | 12.0 mm | M6 | Side Mount Hinge |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
19163M
Material
Steel
Overall Width
13.0 mm
Overall Length
25.5 mm
Length to Hole Center
6.0 mm
