SRSB - Striker Bolt - For Concealed Mini Rotary Latch
Showing 1-2 of 2
Per page:1-2 of 2

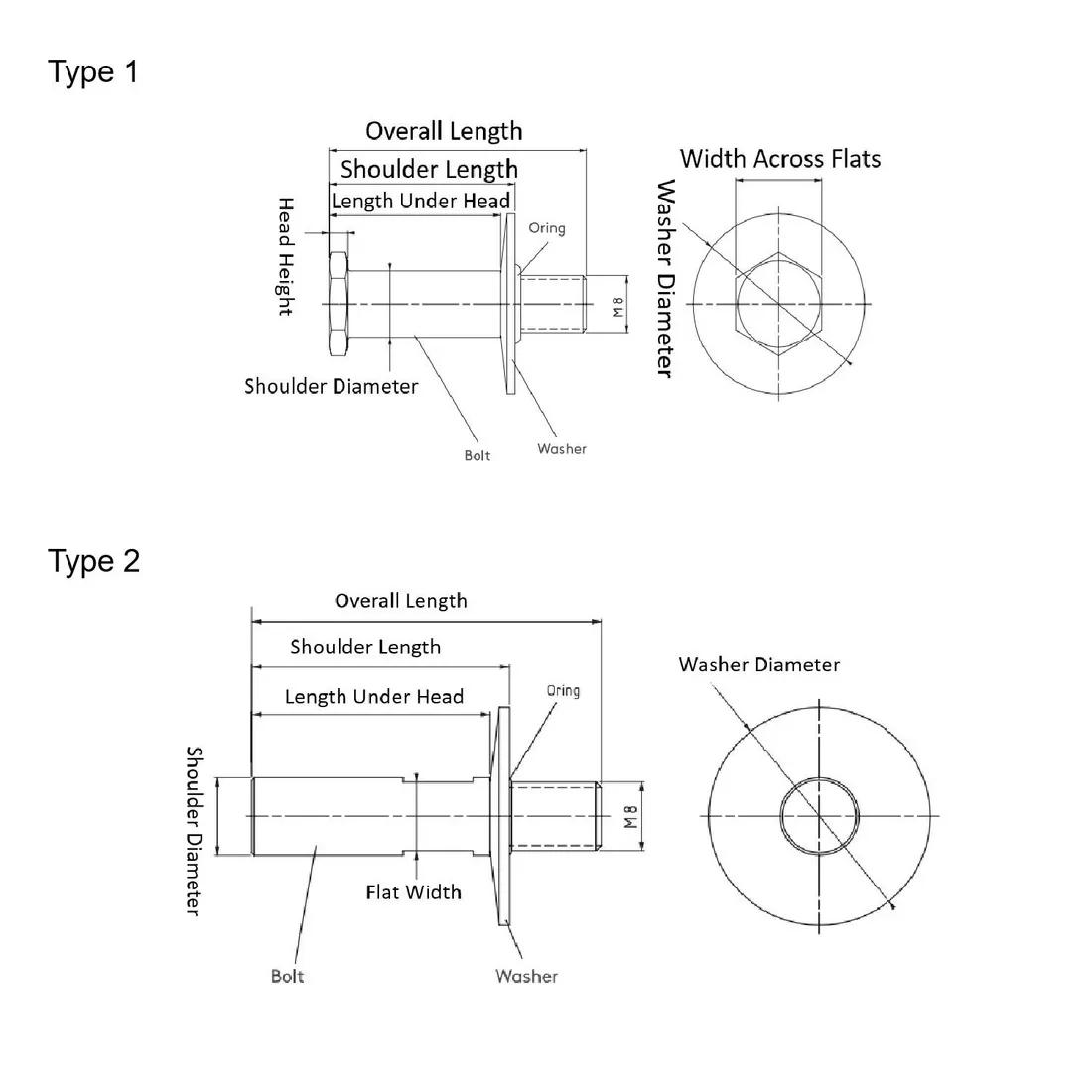

Item Code | Cam Material | Width Across Flats | Length Under Head | Accessory Type | Overall Length | Washer Height | Head Height | Shoulder Length | Thread Length | Finish | Style | Shoulder Diameter | Washer Diameter | Thread Size | Material | Flat Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SB1 | Steel | 12.0 mm | 22.6 mm | Striker Bolt - Standard | 38.1 mm | 2.2 mm | 2.8 mm | 22.6 mm | 10.5 mm | Zinc-Plated | Striker Bolt - Standard | 9.4 mm | 25.4 mm | M8 | Steel | - | |
SB2 | Steel | - | - | Striker Bolt - Bumper | 40.0 mm | 2.2 mm | - | 27.3 mm | 10.5 mm | Zinc-Plated | Striker Bolt - Bumper | 9.0 mm | 25.4 mm | M8 | Steel | 8.0 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
SB1
Cam Material
Steel
Width Across Flats
12.0 mm
Length Under Head
22.6 mm
Accessory Type
Striker Bolt - Standard
SB2
Cam Material
Steel
Accessory Type
Striker Bolt - Bumper
Overall Length
40.0 mm
Washer Height
2.2 mm
