SR2800 - Rotary Latches - Concealed Mini Version
Showing 1-10 of 24
Per page:1-10 of 24

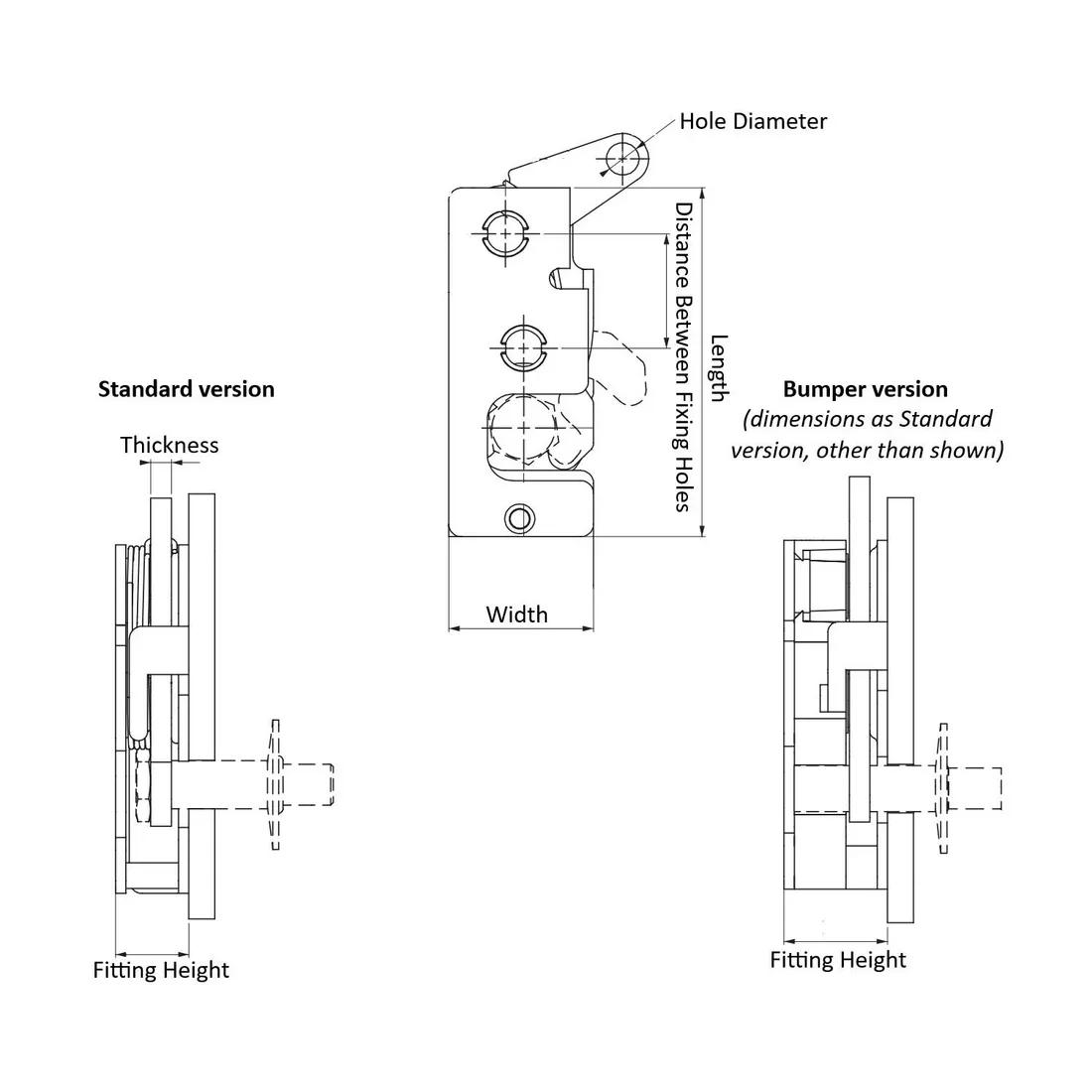

Item Code | Mounting Method | Hole Diameter | Distance Between Fixing Holes | Thickness | Latch Type | Finish | Actuation Lever Type | Length | Material | Width | Mounting type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
28001421001 | Standard | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Single | 68.5 mm | Steel | 28.0 mm | - | |
28001412001 | Standard | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Single | 68.5 mm | Steel | 28.0 mm | - | |
28001432002 | Standard | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Double | 68.5 mm | Steel | 28.0 mm | - | |
28001411002 | Standard | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Double | 68.5 mm | Steel | 28.0 mm | - | |
28001422001 | Standard | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Single | 68.5 mm | Steel | 28.0 mm | - | |
28001422002 | Standard | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Double | 68.5 mm | Steel | 28.0 mm | - | |
28001411001 | Standard | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Single | 68.5 mm | Steel | 28.0 mm | - | |
28002431002 | Bumper | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Double | 68.5 mm | Steel | 28.0 mm | - | |
28002422002 | Bumper | 6.3 mm | 22.5 mm | 4.0 mm | Rotary Latch | Zinc-Plated | Double | 68.5 mm | Steel | 28.0 mm | - |
Per page:
1-10 of 24
1–5 of 24 variants
Per page:
28001421001
Mounting Method
Standard
Hole Diameter
6.3 mm
Distance Between Fixing Holes
22.5 mm
Thickness
4.0 mm
28001412001
Mounting Method
Standard
Hole Diameter
6.3 mm
Distance Between Fixing Holes
22.5 mm
Thickness
4.0 mm
28001432002
Mounting Method
Standard
Hole Diameter
6.3 mm
Distance Between Fixing Holes
22.5 mm
Thickness
4.0 mm
28001411002
Mounting Method
Standard
Hole Diameter
6.3 mm
Distance Between Fixing Holes
22.5 mm
Thickness
4.0 mm
Per page:
1–5 of 25
