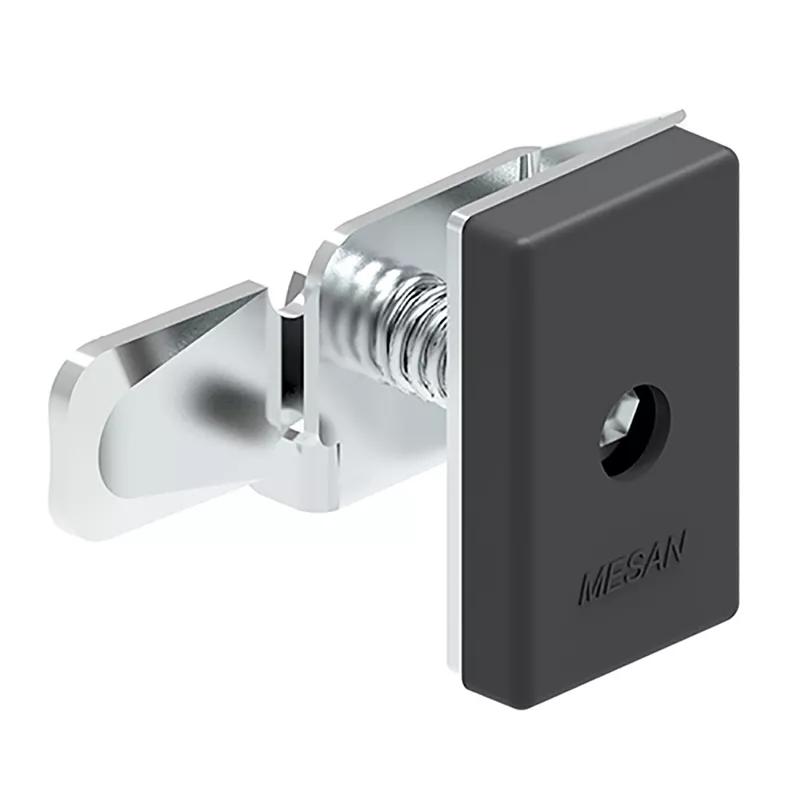

SR75 - Panel Lock with Hexagonal Head
Showing 1-1 of 1
Per page:1-1 of 1

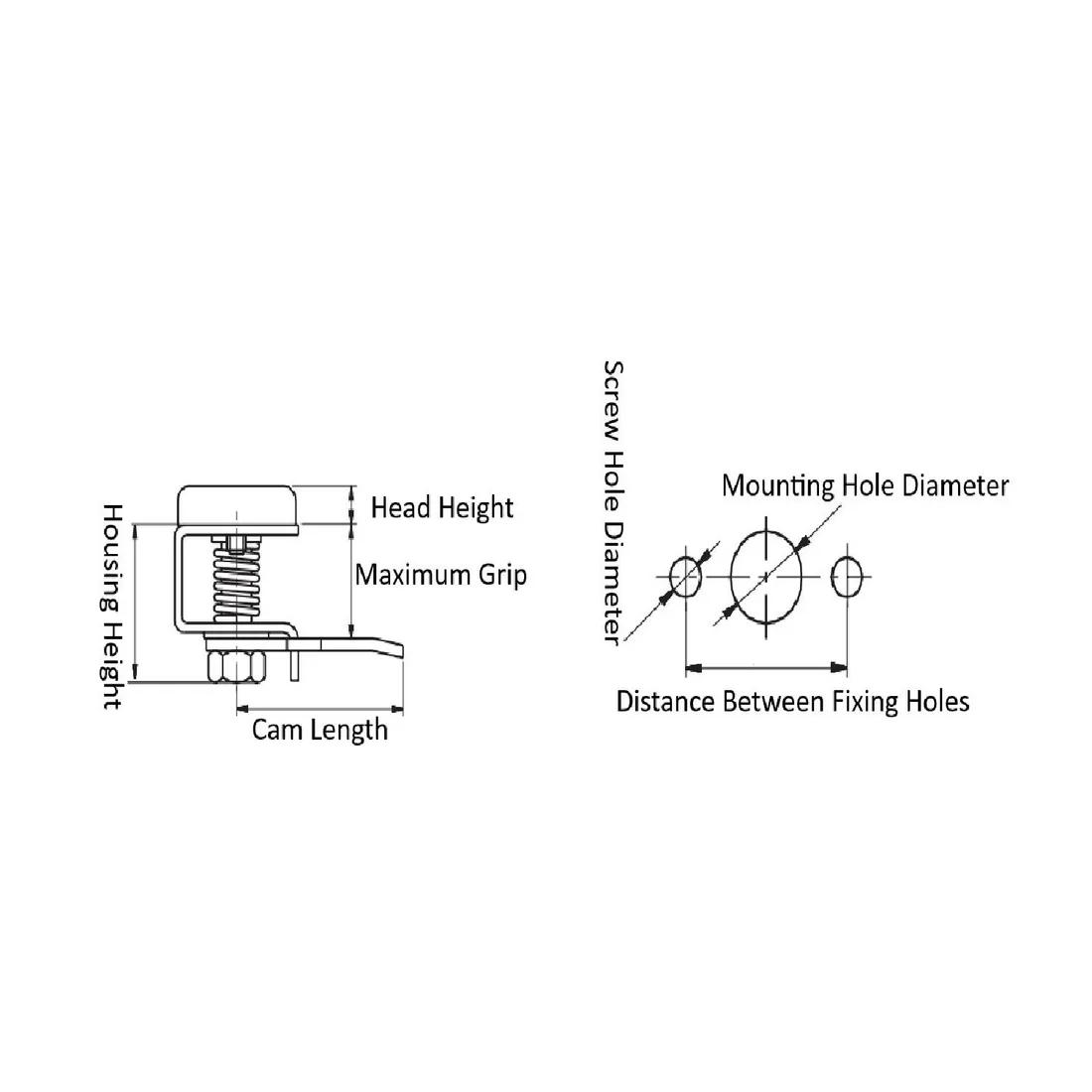

Item Code | Cam Material | Cam Length | Color | Housing Height | Cover Material | Overall Length | Handle Type | Finish | Key Type | Latch Material | Latch Style | Screw Hole Diameter | Mounting Orientation | Housing Material | Minimum Mounting Hole Size | Distance Between Fixing Holes | Mounting Hole Diameter | Head Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
075002 | Steel | 44.0 mm | Black | 33.5 mm | 30% Glass Fibre Nylon 6 | 41.5 mm | Driver Tool Operated Handle | No Finish | Allen Key 16966 | PA;Steel | Cam Latch | 6.0 mm | Left-Handed | Steel | 22.2 X 20.2 mm | 31.5 mm | 14.0 mm | 8.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
075002
Cam Material
Steel
Cam Length
44.0 mm
Color
Black
Housing Height
33.5 mm
