SR662 - Fixed Quarter Turn Knob Latches - Padlockable
Showing 1-2 of 2
Per page:1-2 of 2

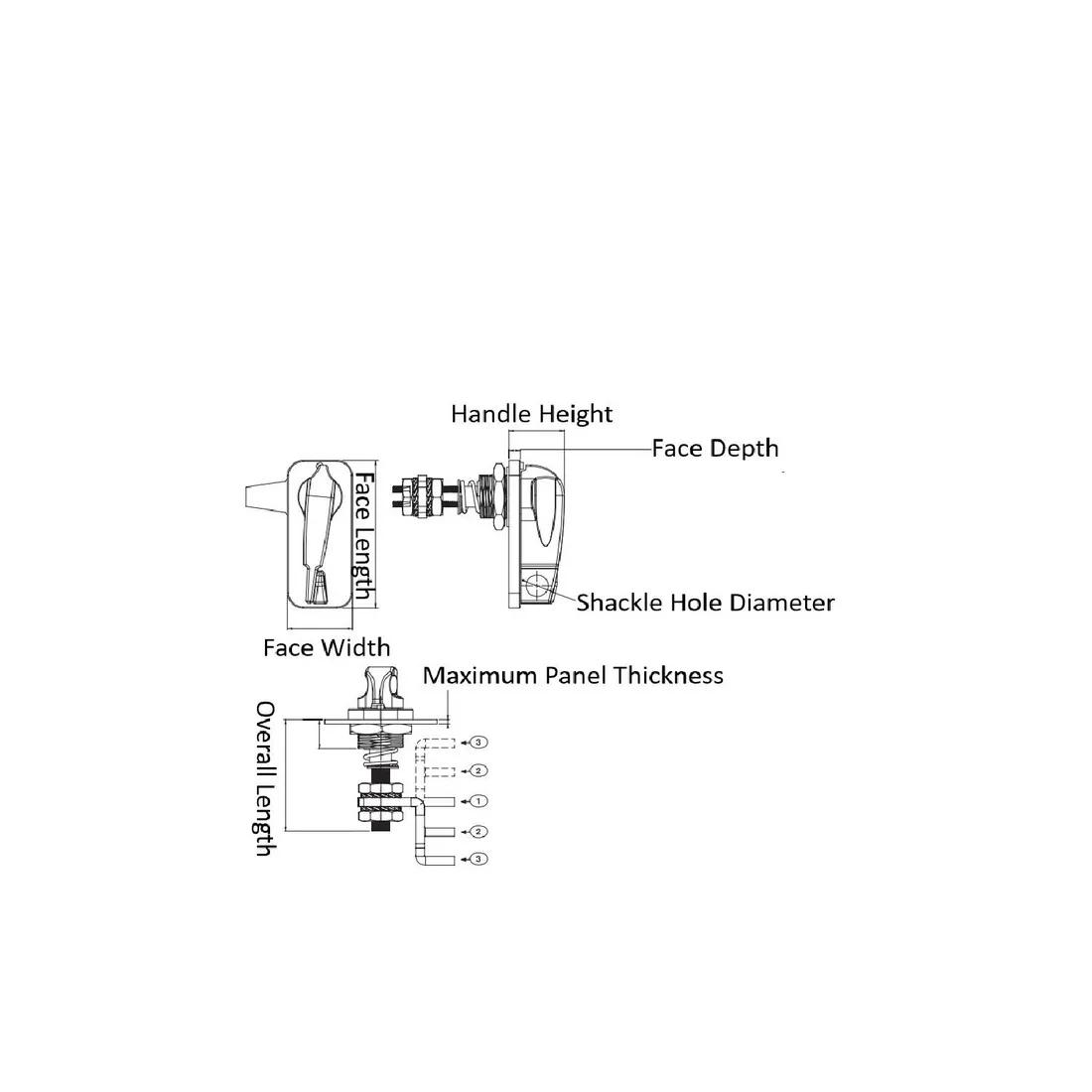

Item Code | Housing Height | Face Width | Overall Length | Maximum Panel Thickness | Coating | Finish | Key Type | Latch Material | Latch Style | Color | Face Length | Mounting Orientation | Housing Material | Maximum Padlock Diameter | Handle Material | Handle Type | Mounting Hole Width | Hinge Rotation | Face Depth | Handle Height | Mounting Hole Length | Shackle Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
66221100 | 13.0 mm | 29.0 mm | 72.0 mm | 8.0 mm | Chrome-Plated | Chrome Plated | No Key | Die Cast Zinc Alloy | Quarter-Turn Latch | Silver | 69.0 mm | Universal | Zinc Alloy | 8.0 mm | Zinc Alloy | Universal Handle | 20.2 mm | 180 ° | 5.0 mm | 25.0 mm | 22.2 mm | 10.0 mm | |
66221200 | 13.0 mm | 29.0 mm | 72.0 mm | 8.0 mm | Powder-Coated | Black Powder-Coated | No Key | Die Cast Zinc Alloy | Quarter-Turn Latch | Black | 69.0 mm | Universal | Zinc Alloy | 8.0 mm | Zinc Alloy | Universal Handle | 20.2 mm | 180 ° | 5.0 mm | 25.0 mm | 22.2 mm | 10.0 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
66221100
Housing Height
13.0 mm
Face Width
29.0 mm
Overall Length
72.0 mm
Maximum Panel Thickness
8.0 mm
66221200
Housing Height
13.0 mm
Face Width
29.0 mm
Overall Length
72.0 mm
Maximum Panel Thickness
8.0 mm
