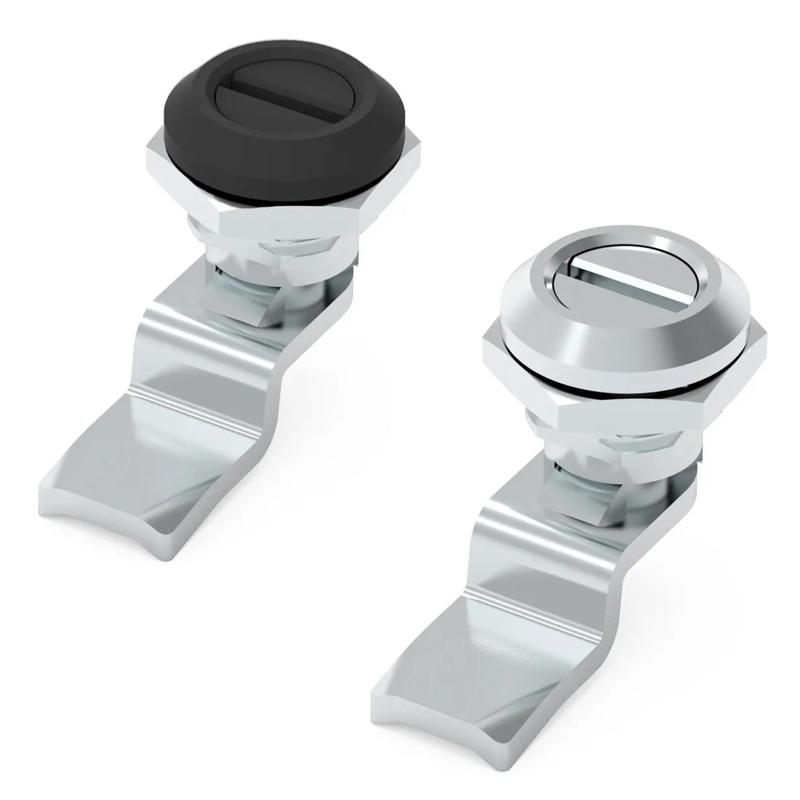

SR66 - Mini Quarter Turn Latches - Spring Loaded Locks
Showing 1-6 of 6
Per page:1-6 of 6

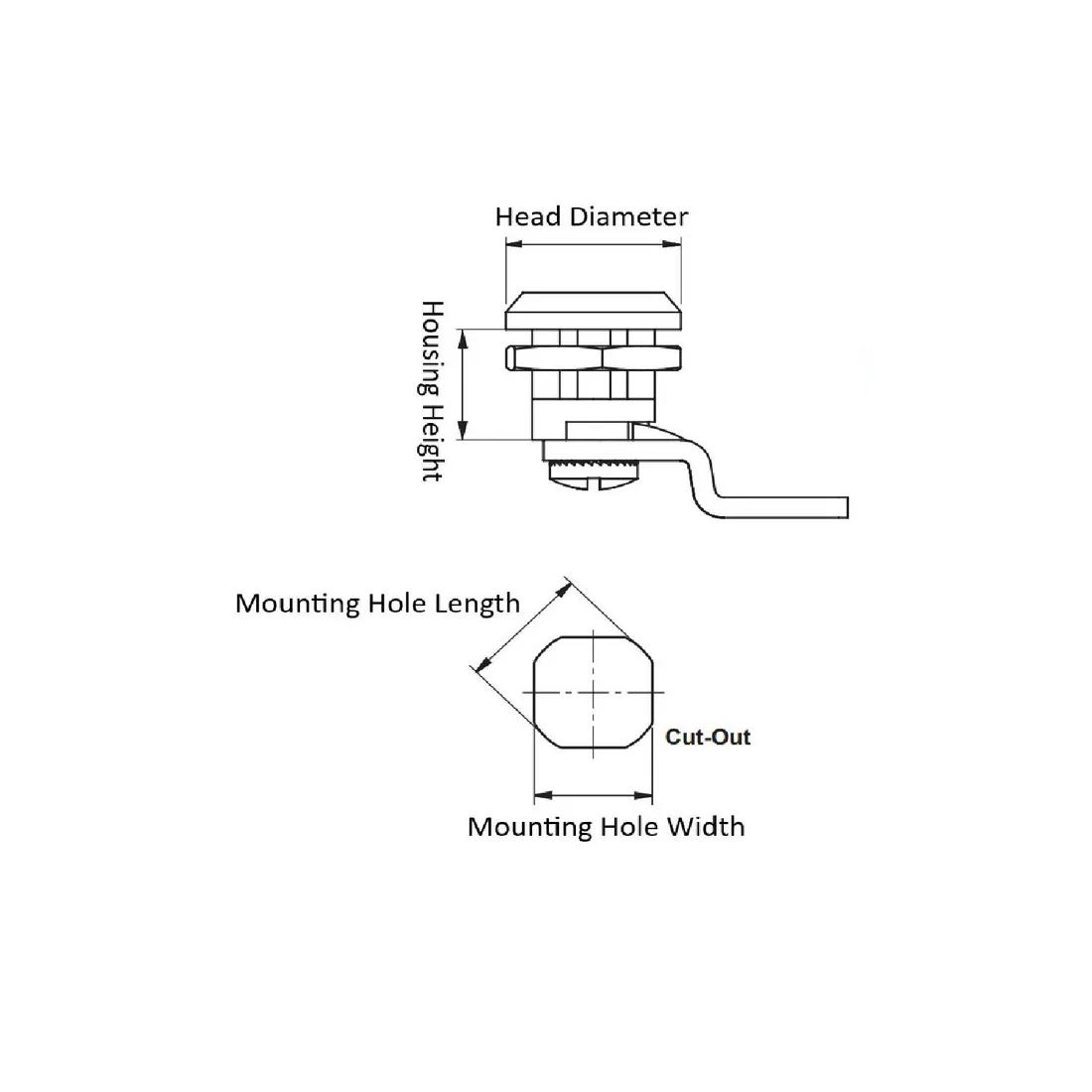

Item Code | Cam Material | Color | Housing Height | Material | Minimum Mounting Hole Size | Head Diameter | Coating | Finish | Key Type | Head Style | Latch Material | Latch Style | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Mounting Hole Length | Driver Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
066122600 | Steel | Black | 13.5 mm | Zinc Alloy | 16.2 X 14.2 mm | 20.0 mm | Powder-Coated | Black Powder-Coated | 6.0 mm Square Key | 6.0 mm Square | Die Cast Zinc Alloy | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | 16.2 mm | Zinc Alloy | |
066113700 | Steel | Silver | 13.5 mm | Zinc Alloy | 16.2 X 14.2 mm | 20.0 mm | Chrome-Plated | Chrome Plated | 7.0 mm Triangle Key | 7.0 mm Triangle | Die Cast Zinc Alloy | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | 16.2 mm | Zinc Alloy | |
066124200 | Steel | Black | 13.5 mm | Zinc Alloy | 16.2 X 14.2 mm | 20.0 mm | Powder-Coated | Black Powder-Coated | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Die Cast Zinc Alloy | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | 16.2 mm | Zinc Alloy | |
066123700 | Steel | Black | 13.5 mm | Zinc Alloy | 16.2 X 14.2 mm | 20.0 mm | Powder-Coated | Black Powder-Coated | 7.0 mm Triangle Key | 7.0 mm Triangle | Die Cast Zinc Alloy | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | 16.2 mm | Zinc Alloy | |
066114200 | Steel | Silver | 13.5 mm | Zinc Alloy | 16.2 X 14.2 mm | 20.0 mm | Chrome-Plated | Chrome Plated | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Die Cast Zinc Alloy | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | 16.2 mm | Zinc Alloy | |
066112600 | Steel | Silver | 13.5 mm | Zinc Alloy | 16.2 X 14.2 mm | 20.0 mm | Chrome-Plated | Chrome Plated | 6.0 mm Square Key | 6.0 mm Square | Die Cast Zinc Alloy | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | 16.2 mm | Zinc Alloy |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
066122600
Cam Material
Steel
Color
Black
Housing Height
13.5 mm
Material
Zinc Alloy
066113700
Cam Material
Steel
Color
Silver
Housing Height
13.5 mm
Material
Zinc Alloy
066124200
Cam Material
Steel
Color
Black
Housing Height
13.5 mm
Material
Zinc Alloy
066123700
Cam Material
Steel
Color
Black
Housing Height
13.5 mm
Material
Zinc Alloy
Per page:
1–5 of 7
