SR60 - Spring Loaded Latches & Locks
Showing 1-10 of 30
Per page:1-10 of 30

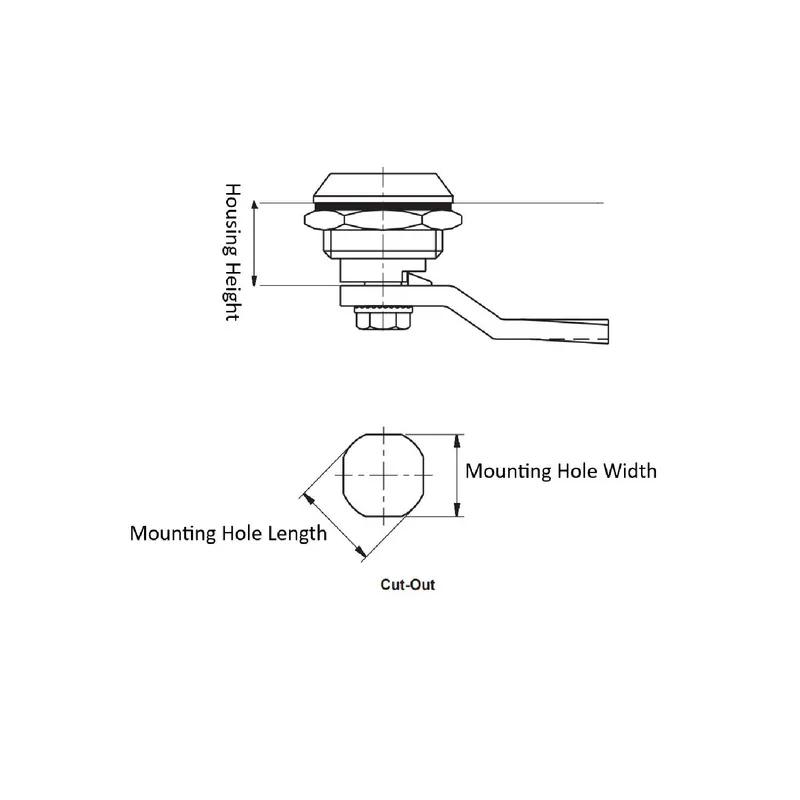

Item Code | Color | Mounting Orientation | Material | Finish | Key Type | Head Style | Latch Style | Mounting Hole Length | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Mounting Hole Shape | Coating | Cam Material | Housing Height | Seal Material | Housing Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
060113900 | Silver | Universal | Zinc Alloy | Chrome Plated | 9.0 mm Triangle Key | 9.0 mm Triangle | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 1.6 mm | 22.2 x 20.2 mm | Chrome-Plated | - | - | - | - | |
060112800 | Silver | Universal | Zinc Alloy | Chrome Plated | 8.0 mm Double Bit Key | 8.0 mm Square | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 2.0 mm | 22.2 x 20.2 mm | Chrome-Plated | Steel | 18.5 mm | Rubber | Zinc Alloy | |
060119700 | Silver | Universal | Zinc Alloy | Chrome Plated | 11 mm Hex Male Key | 11.0 mm Hexagonal Male | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 2.0 mm | 22.2 x 20.2 mm | Chrome-Plated | Steel | 18.5 mm | Rubber | Zinc Alloy | |
060125200 | Black | Universal | Zinc Alloy | Black Powder-Coated | Slotted Key | Slotted | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 2.0 mm | 22.2 x 20.2 mm | Powder-Coated | Steel | 18.5 mm | Rubber | Zinc Alloy | |
060116800 | Silver | Universal | Zinc Alloy | Chrome Plated | 8 mm Hex Female Key | 8.0 mm Hexagonal Female | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 2.0 mm | 22.2 x 20.2 mm | Chrome-Plated | Steel | 18.5 mm | Rubber | Zinc Alloy | |
060122800 | Black | Universal | Zinc Alloy | Black Powder-Coated | 8.0 mm Double Bit Key | 8.0 mm Square | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 2.0 mm | 22.2 x 20.2 mm | Powder-Coated | Steel | 18.5 mm | Rubber | Zinc Alloy | |
060113800 | Silver | Universal | Zinc Alloy | Chrome Plated | 8.0 mm Triangle Key | 8.0 mm Triangle | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 2.0 mm | 22.2 x 20.2 mm | Chrome-Plated | Steel | 18.5 mm | Rubber | Zinc Alloy | |
060116100 | Silver | Universal | Zinc Alloy | Chrome Plated | 10 mm Hex Female Key | 10.0 mm Hexagonal Female | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 2.0 mm | 22.2 x 20.2 mm | Chrome-Plated | Steel | 18.5 mm | Rubber | Zinc Alloy | |
060124200 | Black | Universal | Zinc Alloy | Black Powder-Coated | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Quarter-Turn Spring Loaded Latch | 22.2 mm | Driver Tool Operated Handle | 20.2 mm | 2.0 mm | 22.2 x 20.2 mm | Powder-Coated | Steel | 18.5 mm | Rubber | Zinc Alloy |
Per page:
1-10 of 30
1–5 of 30 variants
Per page:
060113900
Color
Silver
Mounting Orientation
Universal
Material
Zinc Alloy
Finish
Chrome Plated
060112800
Cam Material
Steel
Color
Silver
Housing Height
18.5 mm
Material
Zinc Alloy
060119700
Cam Material
Steel
Color
Silver
Housing Height
18.5 mm
Material
Zinc Alloy
060125200
Cam Material
Steel
Color
Black
Housing Height
18.5 mm
Material
Zinc Alloy
Per page:
1–5 of 31
