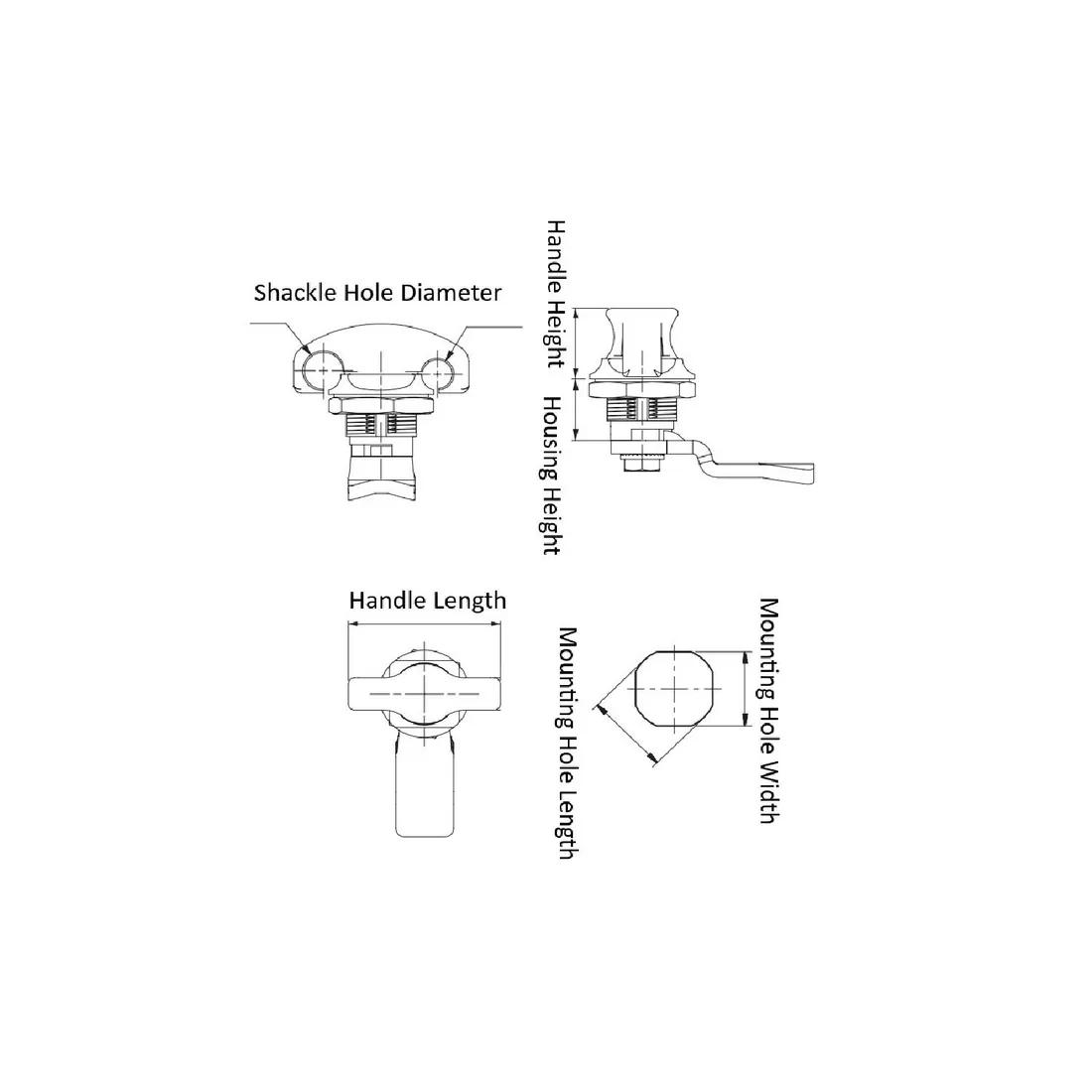

Item Code | Color | Mounting Orientation | Finish | Key Type | Latch Material | Latch Style | Mounting Hole Length | Handle Type | Mounting Hole Width | Housing Height | Coating | Housing Material | Handle Length | Handle Height | Shackle Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5624000 | Silver | Universal | Natural | No Key | Stainless Steel | Quarter-Turn Latch | 22.2 mm | Universal Handle | 20.2 mm | - | - | - | - | - | - | |
562100 | Silver | Universal | Chrome Plated | No Key | Zinc Alloy | Quarter-Turn Latch | 22.2 mm | Universal Handle | 20.2 mm | 18.5 mm | Chrome-Plated | Zinc Alloy | 50.0 mm | 21.0 mm | 8.5 mm, 11.0 mm | |
562200 | Black | Universal | Black Powder-Coated | No Key | Zinc Alloy | Quarter-Turn Latch | 22.2 mm | Universal Handle | 20.2 mm | 18.5 mm | Powder-Coated | Zinc Alloy | 50.0 mm | 21.0 mm | 8.5 mm, 11.0 mm |
Color
Silver
Mounting Orientation
Universal
Finish
Natural
Key Type
No Key
Color
Silver
Housing Height
18.5 mm
Coating
Chrome-Plated
Finish
Chrome Plated
Color
Black
Housing Height
18.5 mm
Coating
Powder-Coated
Finish
Black Powder-Coated
