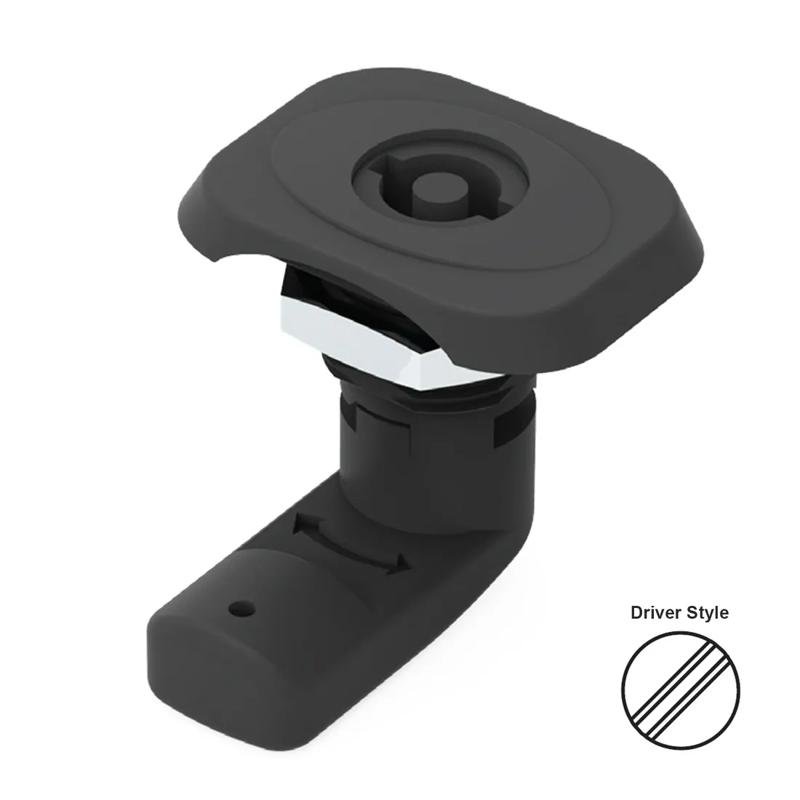

SR561 - Plastic Knob Latch - Finger Grip Knob
Showing 1-2 of 2
Per page:1-2 of 2

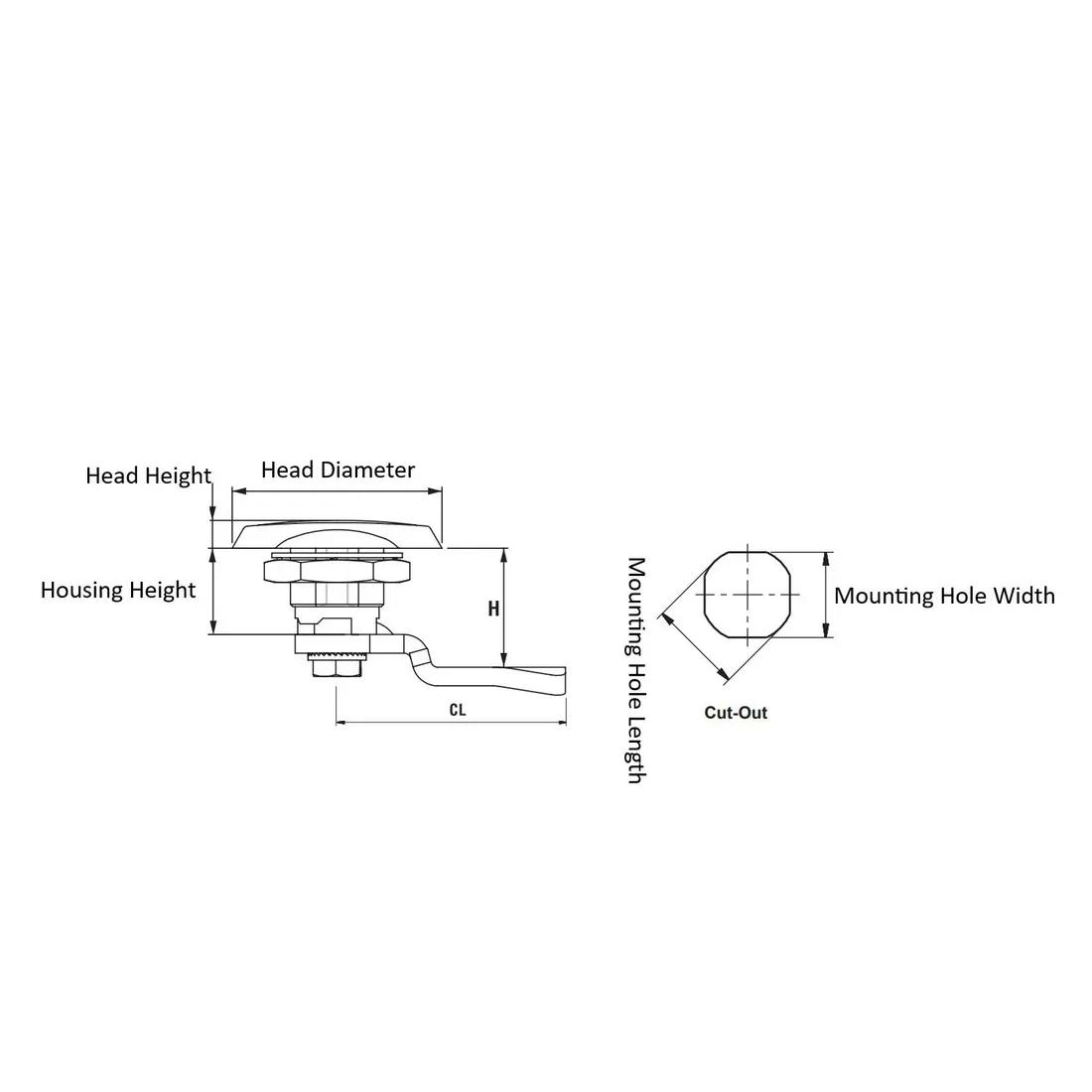

Item Code | Cam Material | Color | Housing Height | Minimum Mounting Hole Size | Head Diameter | Head Height | Coating | Key Type | Head Style | Latch Material | Latch Style | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Mounting Hole Length | Driver Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
56120124200 | Steel | Black | 18.5 mm | 22.2 X 20.2 mm | 45.0 mm | 6.0 mm | Powder-Coated | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Nylon | Quarter-Turn Latch | Universal | 30% Glass Fibre Nylon 6 | Driver Tool Operated Handle | 20.2 mm | 22.2 mm | Zinc Alloy | |
56120204200 | Nylon | Black | 18.5 mm | 22.2 X 20.2 mm | 45.0 mm | 6.0 mm | - | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Nylon | Quarter-Turn Latch | Universal | 30% Glass Fibre Nylon 6 | Driver Tool Operated Handle | 20.2 mm | 22.2 mm | Nylon |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
56120124200
Cam Material
Steel
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
56120204200
Cam Material
Nylon
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
