SR560 - Quarter Turn - Quick Installation Locks
Showing 1-4 of 4
Per page:1-4 of 4

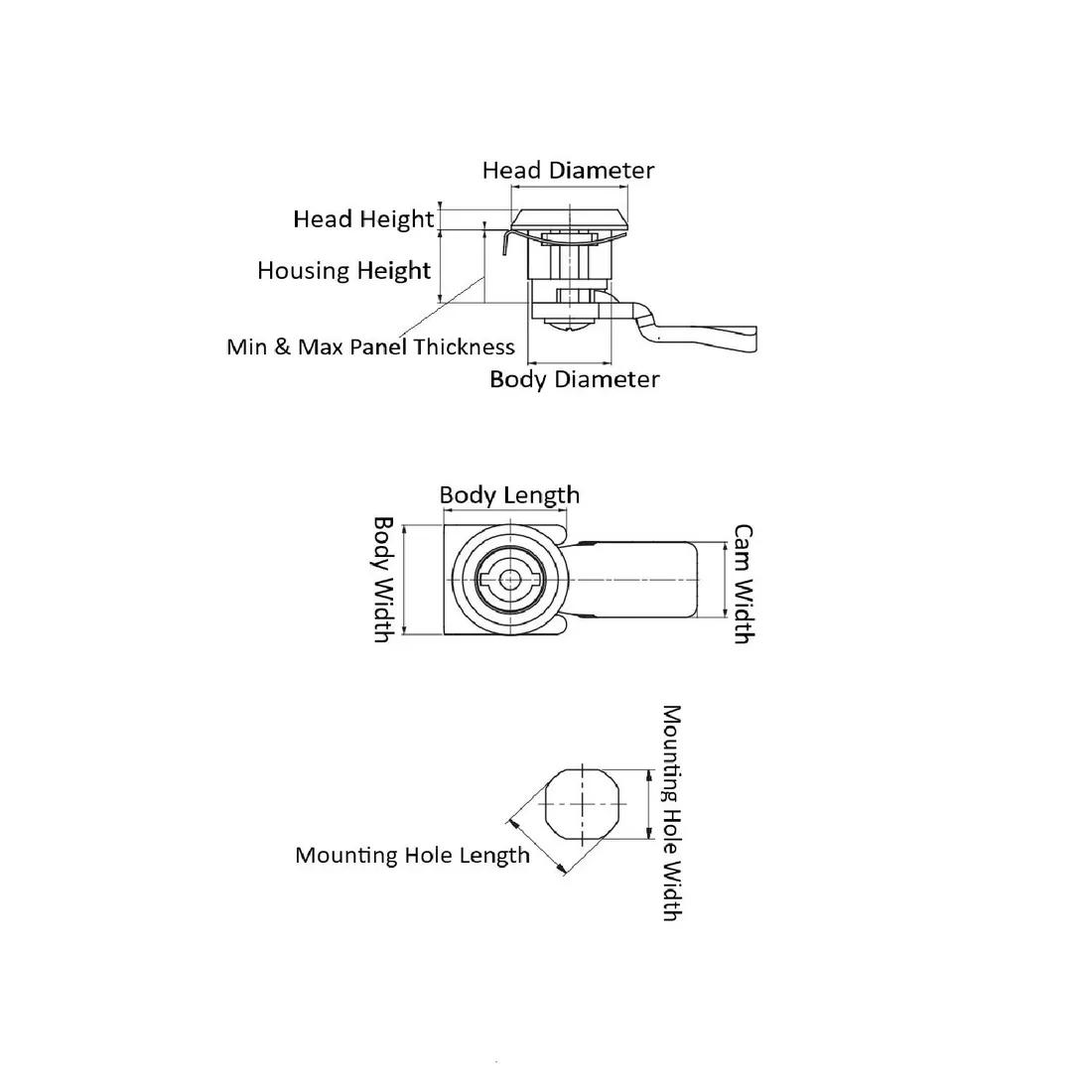

Item Code | Color | Housing Height | Minimum Mounting Hole Size | Body Length | Head Height | Minimum Panel Thickness | Body Width | Head Style | Latch Material | Latch Style | Mounting Orientation | Housing Material | Body Diameter | Maximum Panel Thickness | Head Diameter | Handle Type | Mounting Hole Width | Cam Width | Key Type | Mounting Hole Length | Driver Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
56020202800 | Black | 18.5 mm | 22.2 X 20.2 mm | 29.5 mm | 5.0 mm | 0.8 mm | 28.0 mm | 8.0 mm Square | Nylon | Cam Latch | Universal | 30% Glass Fibre Nylon 6 | 20.0 mm | 2.0 mm | 28.0 mm | Driver Tool Operated Handle | 20.2 mm | 19.0 mm | 8.0 mm Square Key | 22.2 mm | 30% Glass Fibre Nylon 6 | |
56020203800 | Black | 18.5 mm | 22.2 X 20.2 mm | 29.5 mm | 5.0 mm | 0.8 mm | 28.0 mm | 8.0 mm Triangle | Nylon | Cam Latch | Universal | 30% Glass Fibre Nylon 6 | 20.0 mm | 2.0 mm | 28.0 mm | Driver Tool Operated Handle | 20.2 mm | 19.0 mm | 8.0 mm Triangle Key | 22.2 mm | 30% Glass Fibre Nylon 6 | |
56020204200 | Black | 18.5 mm | 22.2 X 20.2 mm | 29.5 mm | 5.0 mm | 0.8 mm | 28.0 mm | 2x 4.0 mm Slotted | Nylon | Cam Latch | Universal | 30% Glass Fibre Nylon 6 | 20.0 mm | 2.0 mm | 28.0 mm | Driver Tool Operated Handle | 20.2 mm | 19.0 mm | 2 x 4 mm Slot Key | 22.2 mm | 30% Glass Fibre Nylon 6 | |
56020201500 | Black | 18.5 mm | 22.2 X 20.2 mm | 29.5 mm | 5.0 mm | 0.8 mm | 28.0 mm | 5.0 mm Double Bit | Nylon | Cam Latch | Universal | 30% Glass Fibre Nylon 6 | 20.0 mm | 2.0 mm | 28.0 mm | Driver Tool Operated Handle | 20.2 mm | 19.0 mm | 5.0 mm Double Bit Key | 22.2 mm | 30% Glass Fibre Nylon 6 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
56020202800
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
Body Length
29.5 mm
56020203800
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
Body Length
29.5 mm
56020204200
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
Body Length
29.5 mm
56020201500
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
Body Length
29.5 mm
