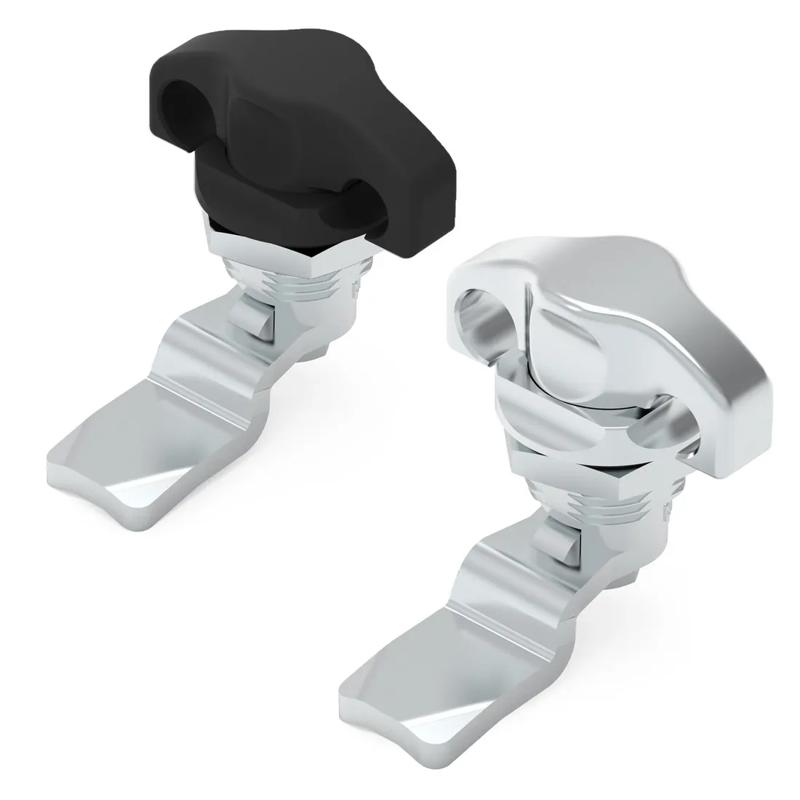

SR55 - Quarter-Turn Padlockable Wing Latch
Showing 1-2 of 2
Per page:1-2 of 2

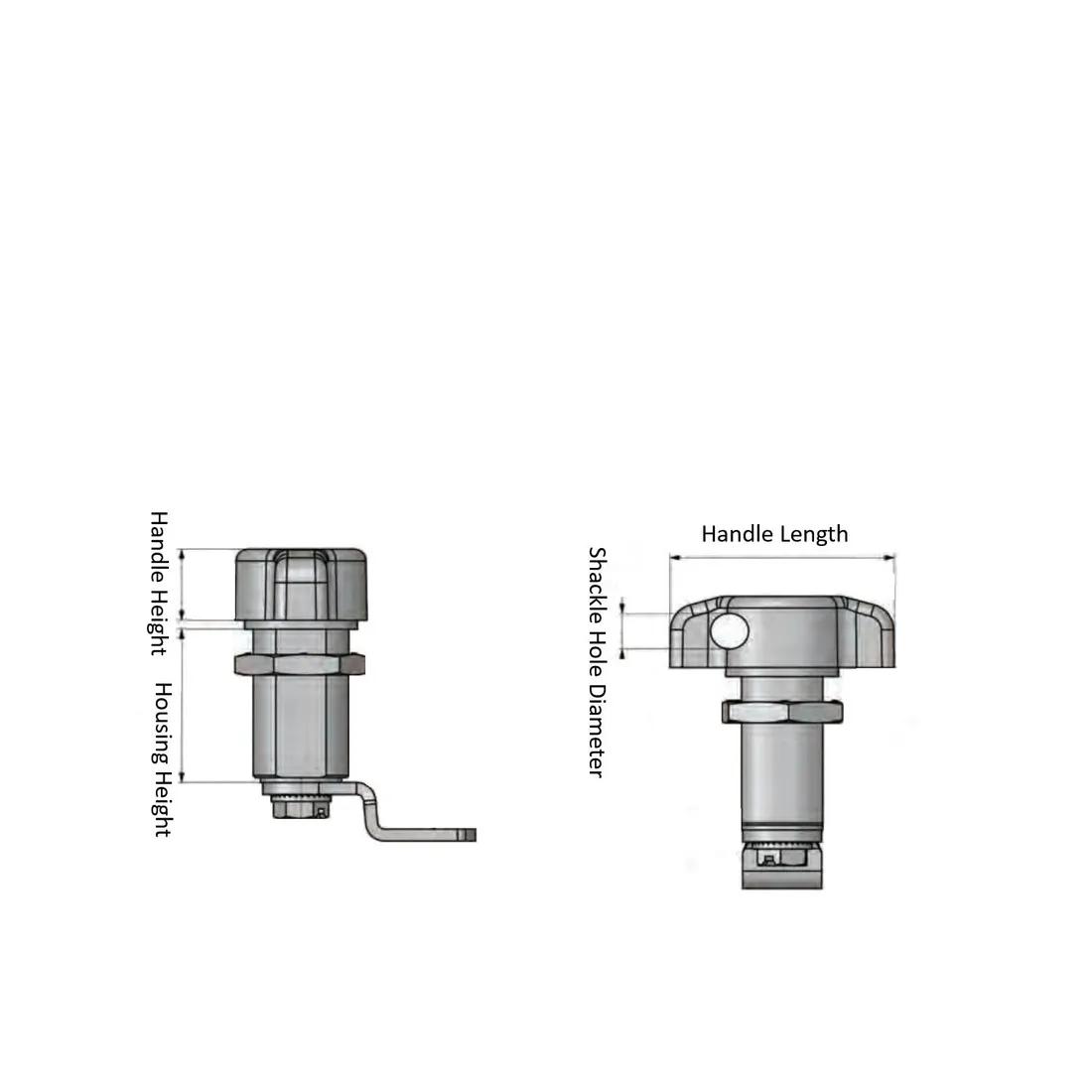

Item Code | Cam Material | Color | Housing Height | Handle Material | Mounting Hole Diameter | Coating | Finish | Key Type | Latch Material | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Handle Length | Latch Style | Handle Height | Mounting Hole Length | Shackle Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
055100001 | Steel | Silver | 32.0 mm | Zinc Alloy | 20.3 mm | Nickel-Plated | Nickel-Plated | No Key | Die Cast Zinc Alloy | Right-Handed | Zinc Alloy | Right Hand Handle | 20.3 mm | 47.0 mm | Quarter-Turn Latch | 15.0 mm | 20.3 mm | 7.5 mm | |
055100002 | Steel | Silver | 32.0 mm | Zinc Alloy | 20.3 mm | Nickel-Plated | Nickel-Plated | No Key | Die Cast Zinc Alloy | Left-Handed | Zinc Alloy | Left Hand Handle | 20.3 mm | 47.0 mm | Quarter-Turn Latch | 15.0 mm | 20.3 mm | 7.5 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
055100001
Cam Material
Steel
Color
Silver
Housing Height
32.0 mm
Handle Material
Zinc Alloy
055100002
Cam Material
Steel
Color
Silver
Housing Height
32.0 mm
Handle Material
Zinc Alloy
