SR50 - Cam Latches & Locks
Showing 1-5 of 5
Per page:1-5 of 5

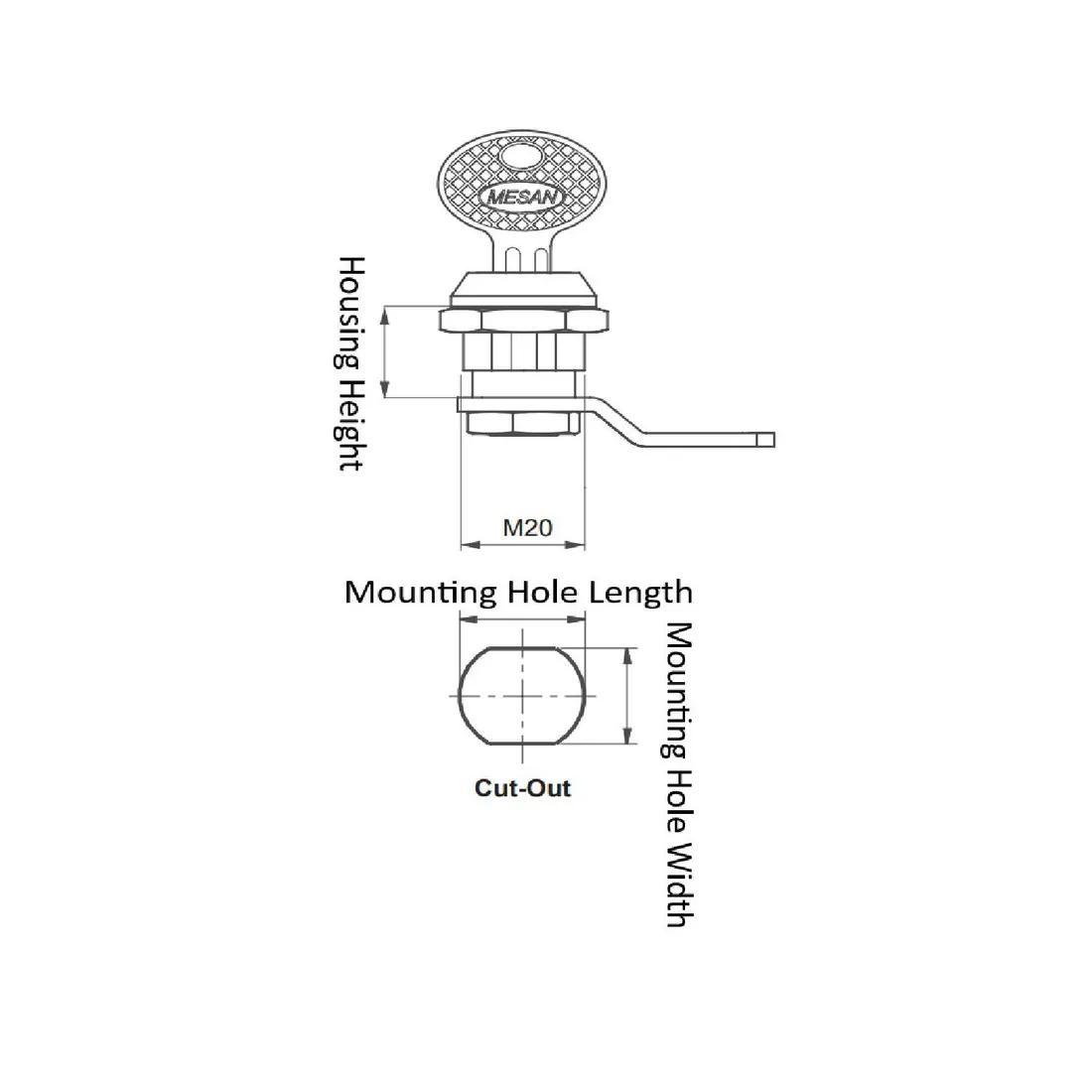

Item Code | Cam Material | Housing Height | Key Rotation | Coating | Finish | Key Type | Nut Size (Seed) | Latch Material | Latch Style | Mounting Hole Length | Color | Lock Type | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Head Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
05020300 | Steel | 16.5 mm | 90 ° | Chrome-Plated | Chrome Plated | Keyed Alike | M20, M12 | Die Cast Zinc Alloy | Cam Latch | 20.2 mm | Silver | Keyed Alike | Universal | Zinc Alloy | Key Operated Handle | 17.2 mm | - | |
05023200 | Steel | 16.5 mm | 90 ° | Chrome-Plated | Chrome Plated | Keyed To Differ | M20, M12 | Die Cast Zinc Alloy | Cam Latch | 20.2 mm | Silver | Keyed to Differ | Universal | Zinc Alloy | Key Operated Handle | 17.2 mm | - | |
050200100 | Steel | 20.0 mm | - | Chrome-Plated | Chrome Plated | Keyed Alike | - | Die Cast Zinc Alloy | Cam Latch | 19.2 mm | Silver | Keyed Alike | Universal | Zinc Alloy | Key Operated Handle | 17.2 mm | 6.0 mm | |
05010300 | Steel | 16.5 mm | 180 ° | Chrome-Plated | Chrome Plated | Keyed Alike | M20, M12 | Die Cast Zinc Alloy | Cam Latch | 20.2 mm | Silver | Keyed Alike | Universal | Zinc Alloy | Key Operated Handle | 17.2 mm | - | |
05013200 | Steel | 16.5 mm | 180 ° | Chrome-Plated | Chrome Plated | Keyed To Differ | M20, M12 | Die Cast Zinc Alloy | Cam Latch | 20.2 mm | Silver | Keyed to Differ | Universal | Zinc Alloy | Key Operated Handle | 17.2 mm | - |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
05020300
Cam Material
Steel
Housing Height
16.5 mm
Key Rotation
90 °
Coating
Chrome-Plated
05023200
Cam Material
Steel
Housing Height
16.5 mm
Key Rotation
90 °
Coating
Chrome-Plated
050200100
Cam Material
Steel
Housing Height
20.0 mm
Head Height
6.0 mm
Coating
Chrome-Plated
05010300
Cam Material
Steel
Housing Height
16.5 mm
Key Rotation
180 °
Coating
Chrome-Plated
Per page:
1–5 of 6
