SR362 - Quarter Turn Latches - Wing Knob Locks
Showing 1-3 of 3
Per page:1-3 of 3

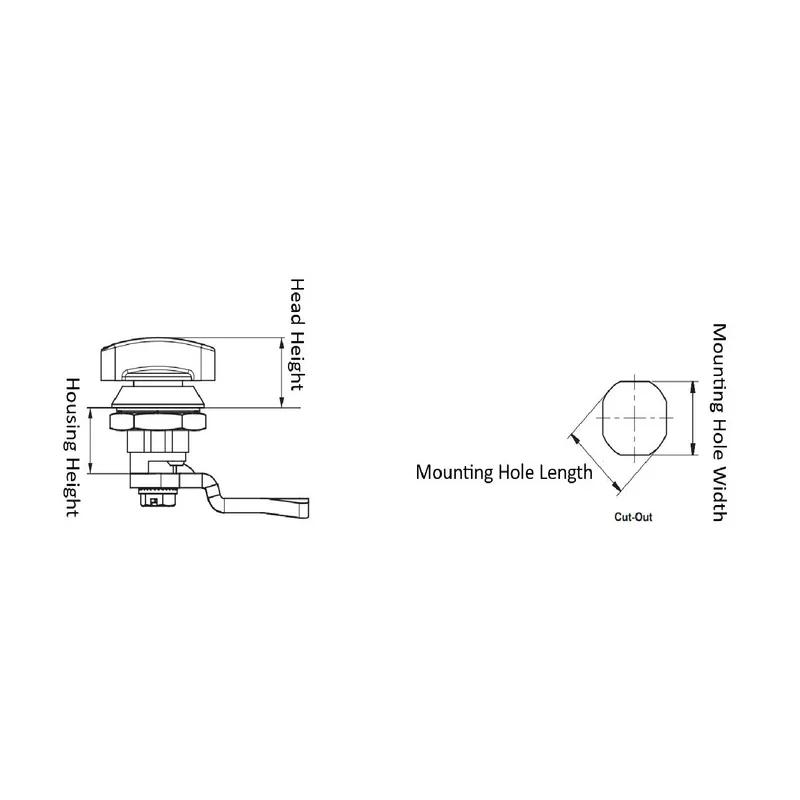

Item Code | Color | Housing Height | Head Height | Coating | Finish | Key Type | Seal Material | Latch Material | Latch Style | Mounting Hole Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3621100 | Silver | 18.5 mm | 19.5 mm | Chrome-Plated | Chrome Plated | No Key | Rubber | Die Cast Zinc Alloy | Cam Latch | 22.2 mm | Universal | Zinc Alloy | Wing Knob Handle | 20.2 mm | |
3621200 | Black | 18.5 mm | 19.5 mm | Powder-Coated | Black Powder-Coated | No Key | - | Die Cast Zinc Alloy | Cam Latch | 22.2 mm | Universal | Zinc Alloy | Wing Knob Handle | 20.2 mm | |
3622000 | Black | 18.5 mm | 19.5 mm | - | - | No Key | Rubber | Die Cast Zinc Alloy | Cam Latch | 22.2 mm | Universal | Nylon | Wing Knob Handle | 20.2 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
3621100
Color
Silver
Housing Height
18.5 mm
Head Height
19.5 mm
Coating
Chrome-Plated
3621200
Color
Black
Housing Height
18.5 mm
Head Height
19.5 mm
Coating
Powder-Coated
3622000
Color
Black
Housing Height
18.5 mm
Head Height
19.5 mm
Key Type
No Key
