SR361 - Secure Quarter Turn Latches / Locks
Showing 1-2 of 2
Per page:1-2 of 2

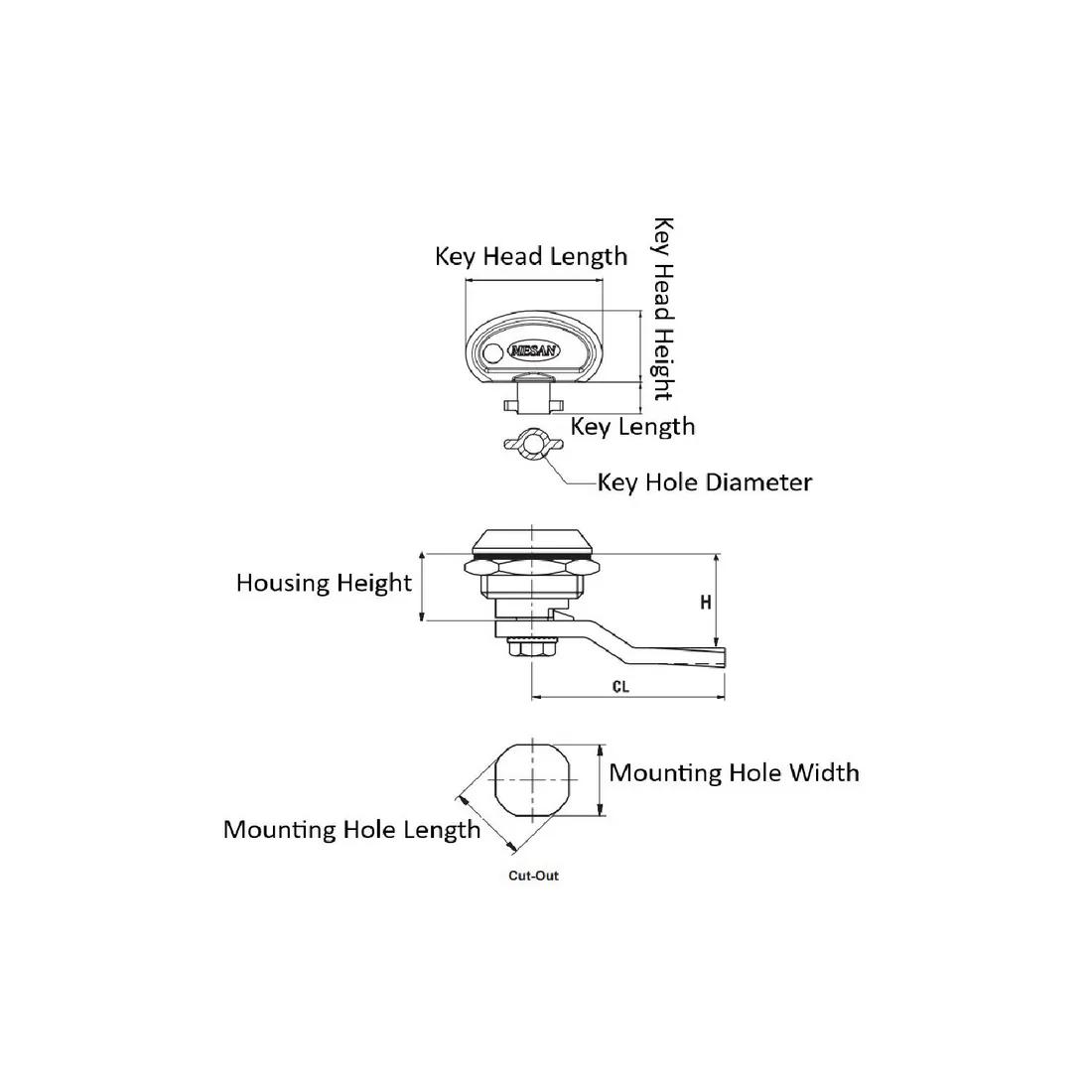

Item Code | Key Hole Diameter | Housing Height | Key Head Height | Coating | Finish | Key Type | Seal Material | Key Head Length | Latch Material | Key Length | Color | Lock Type | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Mounting Hole Length | Driver Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3611100 | 6.2 mm | 18.5 mm | 22.5 mm | Chrome-Plated | Chrome Plated | Key is Driver | Rubber | 42.0 mm | Die Cast Zinc Alloy | 10.0 mm | Chrome | Key is Driver | Universal | Zinc Alloy | Key Driver Insert Handle | 20.2 mm | 22.2 mm | Zinc Alloy | |
3611200 | 6.2 mm | 18.5 mm | 22.5 mm | Powder-Coated | Black Powder-Coated | Key is Driver | Rubber | 42.0 mm | Die Cast Zinc Alloy | 10.0 mm | Black | Key is Driver | Universal | Zinc Alloy | Key Driver Insert Handle | 20.2 mm | 22.2 mm | Zinc Alloy |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
3611100
Key Hole Diameter
6.2 mm
Housing Height
18.5 mm
Key Head Height
22.5 mm
Coating
Chrome-Plated
3611200
Key Hole Diameter
6.2 mm
Housing Height
18.5 mm
Key Head Height
22.5 mm
Coating
Powder-Coated
