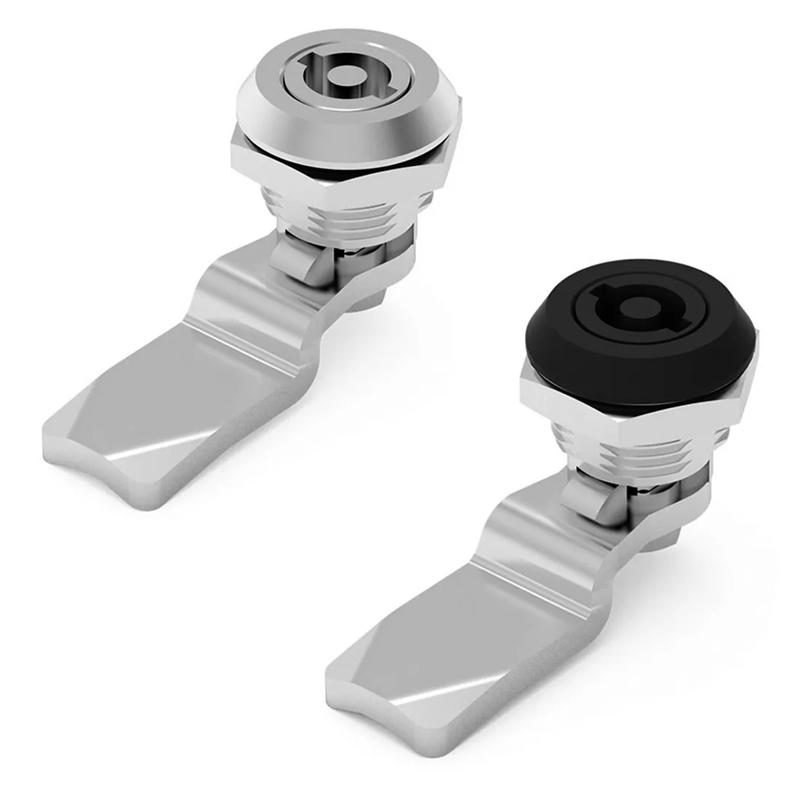

SR360 - Quarter Turn Latches - Spring Loaded Locks with Grounding Clip
Showing 1-10 of 12
Per page:1-10 of 12

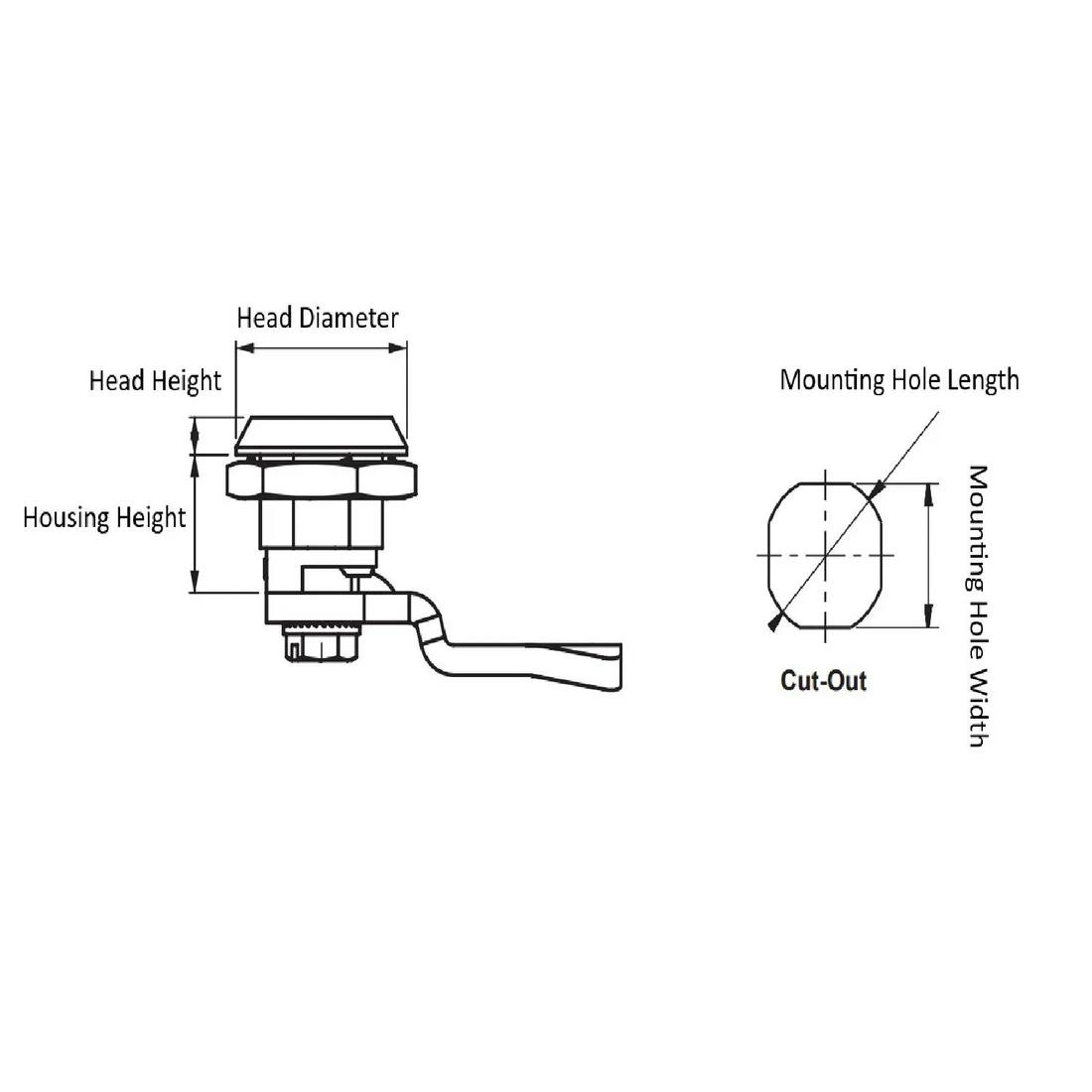

Item Code | Cam Material | Color | Housing Height | Material | Grounding Clip Material | Head Diameter | Head Height | Finish | Key Type | Seal Material | Head Style | Latch Style | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Mounting Hole Shape | Coating | Mounting Hole Length | Driver Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
360113800 | Steel | Silver | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Chrome Plated | 8.0 mm Triangle Key | Rubber | 8.0 mm Triangle | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Chrome-Plated | 22.2 mm | Zinc Alloy | |
360111300 | Steel | Silver | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Chrome Plated | 3.0 mm Double Bit Key | Rubber | 3.0 mm Double Bit | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Chrome-Plated | 22.2 mm | Zinc Alloy | |
360123700 | Steel | Black | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Black Powder-Coated | 7.0 mm Triangle Key | Rubber | 7.0 mm Triangle | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Powder-Coated | 22.2 mm | Zinc Alloy | |
360113700 | Steel | Silver | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Chrome Plated | 7.0 mm Triangle Key | Rubber | 7.0 mm Triangle | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Chrome-Plated | 22.2 mm | Zinc Alloy | |
360121500 | Steel | Black | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Black Powder-Coated | 5.0 mm Double Bit Key | Rubber | 5.0 mm Double Bit | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Powder-Coated | 22.2 mm | Zinc Alloy | |
360123800 | Steel | Black | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Black Powder-Coated | 8.0 mm Triangle Key | Rubber | 8.0 mm Triangle | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Powder-Coated | 22.2 mm | Zinc Alloy | |
360122800 | Steel | Black | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Black Powder-Coated | 8.0 mm Square Key | Rubber | 8.0 mm Square | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Powder-Coated | 22.2 mm | Zinc Alloy | |
360112800 | Steel | Silver | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Chrome Plated | 8.0 mm Square Key | Rubber | 8.0 mm Square | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Chrome-Plated | 22.2 mm | Zinc Alloy | |
360124200 | Steel | Black | 18.5 mm | Zinc Alloy | Stainless Steel | 30.0 mm | 6.0 mm | Black Powder-Coated | 2 x 4 mm Slot Key | Rubber | 2x 4.0 mm Slotted | Quarter-Turn Spring Loaded Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Powder-Coated | 22.2 mm | Zinc Alloy |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
360113800
Cam Material
Steel
Color
Silver
Housing Height
18.5 mm
Material
Zinc Alloy
360111300
Cam Material
Steel
Color
Silver
Housing Height
18.5 mm
Material
Zinc Alloy
360123700
Cam Material
Steel
Color
Black
Housing Height
18.5 mm
Material
Zinc Alloy
360113700
Cam Material
Steel
Color
Silver
Housing Height
18.5 mm
Material
Zinc Alloy
