SR266 - Quarter Turn Latches - Spring Loaded Locks
Showing 1-6 of 6
Per page:1-6 of 6

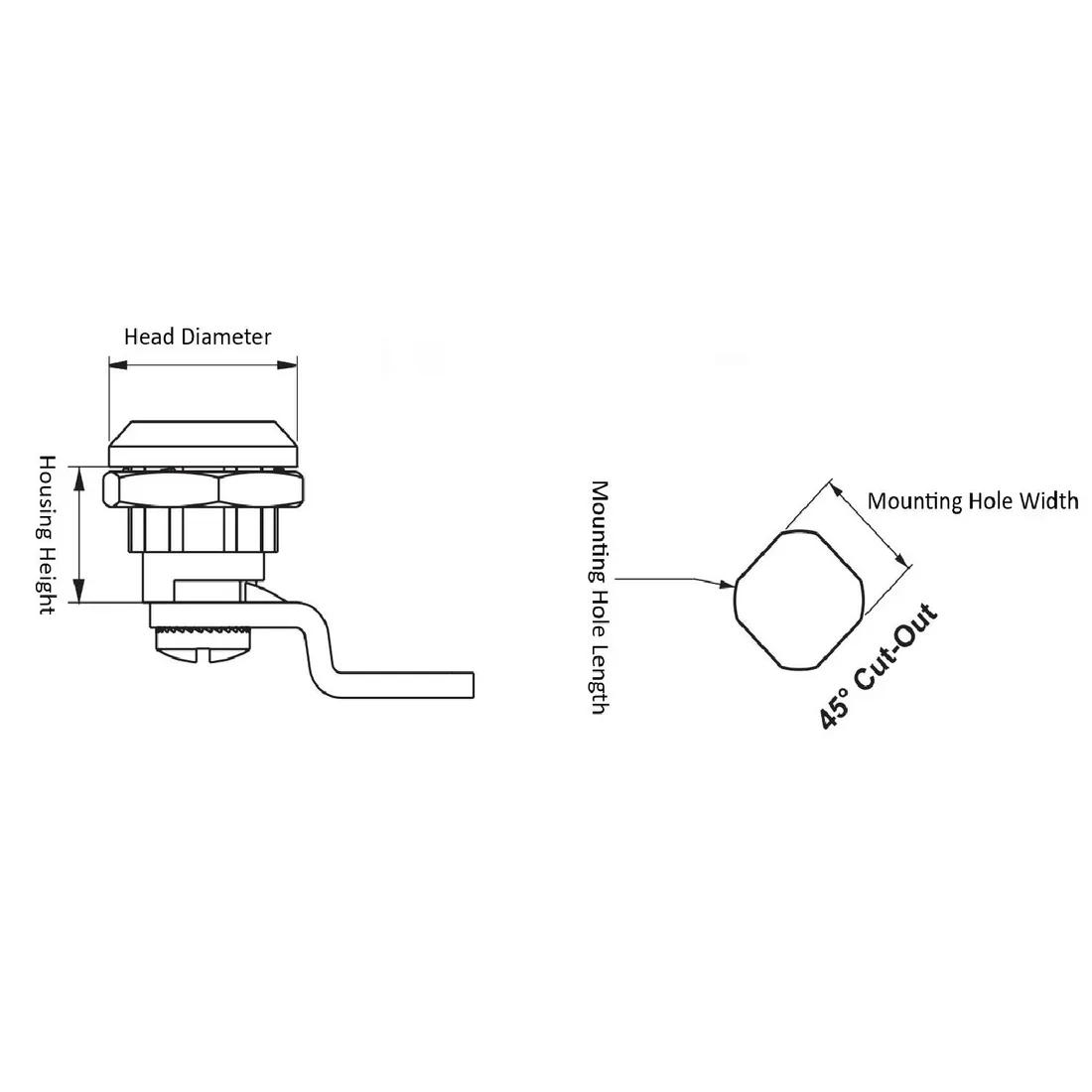

Item Code | Cam Material | Color | Housing Height | Material | Head Diameter | Finish | Key Type | Head Style | Latch Style | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Coating | Cut Angle | Mounting Hole Length | Driver Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
266124200 | Steel | Black | 13.5 mm | Zinc Alloy | 20.0 mm | Black Powder-Coated | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Quarter-Turn Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | Powder-Coated | 45 ° | 16.2 mm | Zinc Alloy | |
266123700 | Steel | Black | 13.5 mm | Zinc Alloy | 20.0 mm | Black Powder-Coated | 7.0 mm Triangle Key | 7.0 mm Triangle | Quarter-Turn Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | Powder-Coated | 45 ° | 16.2 mm | Zinc Alloy | |
266113700 | Steel | Silver | 13.5 mm | Zinc Alloy | 20.0 mm | Chrome Plated | 7.0 mm Triangle Key | 7.0 mm Triangle | Quarter-Turn Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | Chrome-Plated | 45 ° | 16.2 mm | Zinc Alloy | |
266114200 | Steel | Silver | 13.5 mm | Zinc Alloy | 20.0 mm | Chrome Plated | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Quarter-Turn Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | Chrome-Plated | 45 ° | 16.2 mm | Zinc Alloy | |
266122600 | Steel | Black | 13.5 mm | Zinc Alloy | 20.0 mm | Black Powder-Coated | 6.0 mm Square Key | 6.0 mm Square | Quarter-Turn Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | Powder-Coated | 45 ° | 16.2 mm | Zinc Alloy | |
266112600 | Steel | Silver | 13.5 mm | Zinc Alloy | 20.0 mm | Chrome Plated | 6.0 mm Square Key | 6.0 mm Square | Quarter-Turn Latch | Universal | Zinc Alloy | Driver Tool Operated Handle | 14.2 mm | Chrome-Plated | 45 ° | 16.2 mm | Zinc Alloy |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
266124200
Cam Material
Steel
Color
Black
Housing Height
13.5 mm
Material
Zinc Alloy
266123700
Cam Material
Steel
Color
Black
Housing Height
13.5 mm
Material
Zinc Alloy
266113700
Cam Material
Steel
Color
Silver
Housing Height
13.5 mm
Material
Zinc Alloy
266114200
Cam Material
Steel
Color
Silver
Housing Height
13.5 mm
Material
Zinc Alloy
