SR262 - Quarter Turn Latches - Padlock Wing Knob Locks
Showing 1-4 of 4
Per page:1-4 of 4

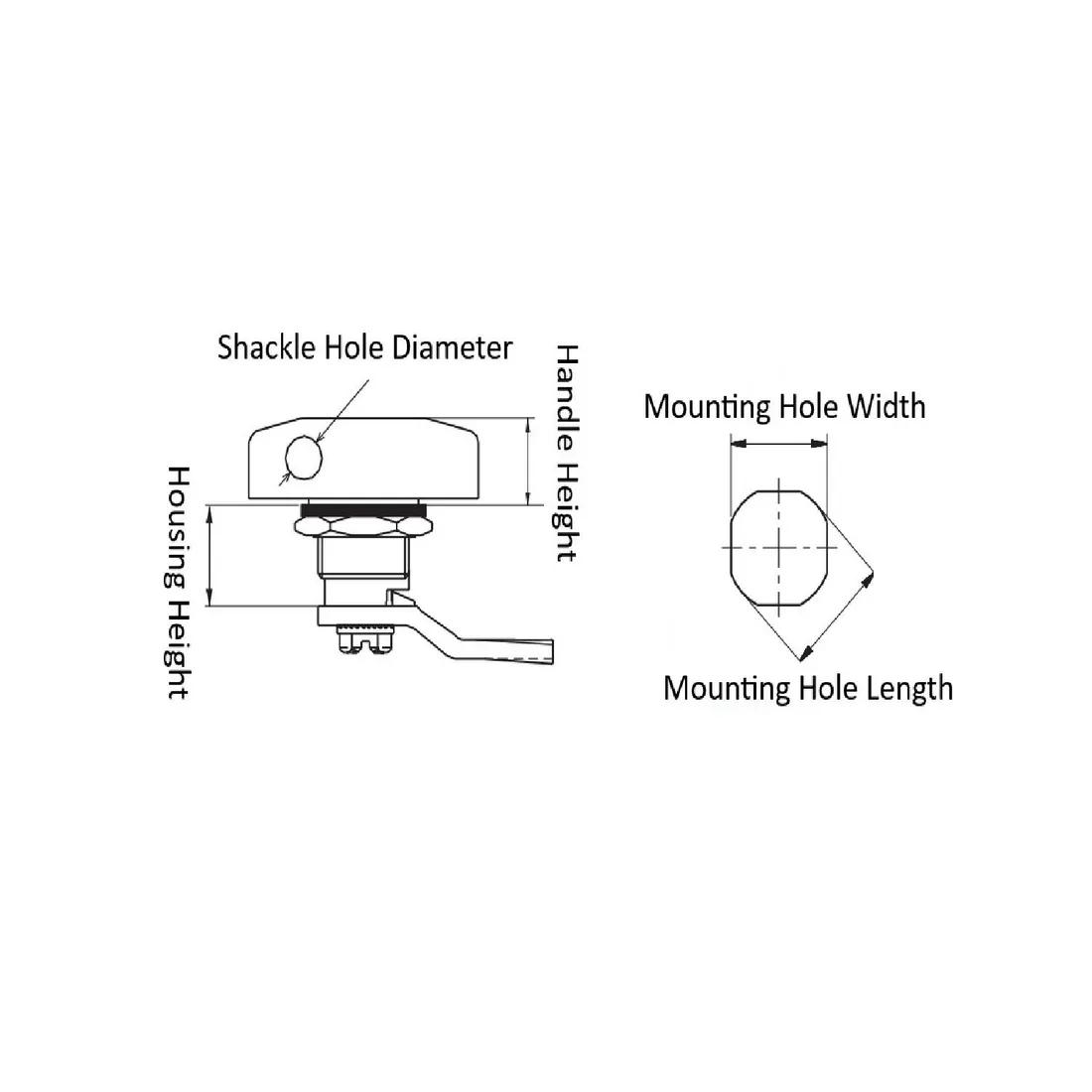

Item Code | Cam Material | Color | Housing Height | Handle Material | Coating | Finish | Key Type | Latch Material | Latch Style | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Handle Height | Mounting Hole Length | Shackle Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
262100002 | Steel | Silver | 18.5 mm | Zinc Alloy | Chrome-Plated | Chrome Plated | No Key | Die Cast Zinc Alloy | Quarter-Turn Latch | Left-Handed | Zinc Alloy | Left Hand Handle | 20.2 mm | 16.0 mm | 22.2 mm | 6.0 mm | |
262100001 | Steel | Silver | 18.5 mm | Zinc Alloy | Chrome-Plated | Chrome Plated | No Key | Die Cast Zinc Alloy | Quarter-Turn Latch | Right-Handed | Zinc Alloy | Right Hand Handle | 20.2 mm | 16.0 mm | 22.2 mm | 6.0 mm | |
262200002 | Steel | Black | 18.5 mm | Zinc Alloy | Powder-Coated | Black Powder-Coated | No Key | Die Cast Zinc Alloy | Quarter-Turn Latch | Left-Handed | Zinc Alloy | Left Hand Handle | 20.2 mm | 16.0 mm | 22.2 mm | 6.0 mm | |
262200001 | Steel | Black | 18.5 mm | Zinc Alloy | Powder-Coated | Black Powder-Coated | No Key | Die Cast Zinc Alloy | Quarter-Turn Latch | Right-Handed | Zinc Alloy | Right Hand Handle | 20.2 mm | 16.0 mm | 22.2 mm | 6.0 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
262100002
Cam Material
Steel
Color
Silver
Housing Height
18.5 mm
Handle Material
Zinc Alloy
262100001
Cam Material
Steel
Color
Silver
Housing Height
18.5 mm
Handle Material
Zinc Alloy
262200002
Cam Material
Steel
Color
Black
Housing Height
18.5 mm
Handle Material
Zinc Alloy
262200001
Cam Material
Steel
Color
Black
Housing Height
18.5 mm
Handle Material
Zinc Alloy
