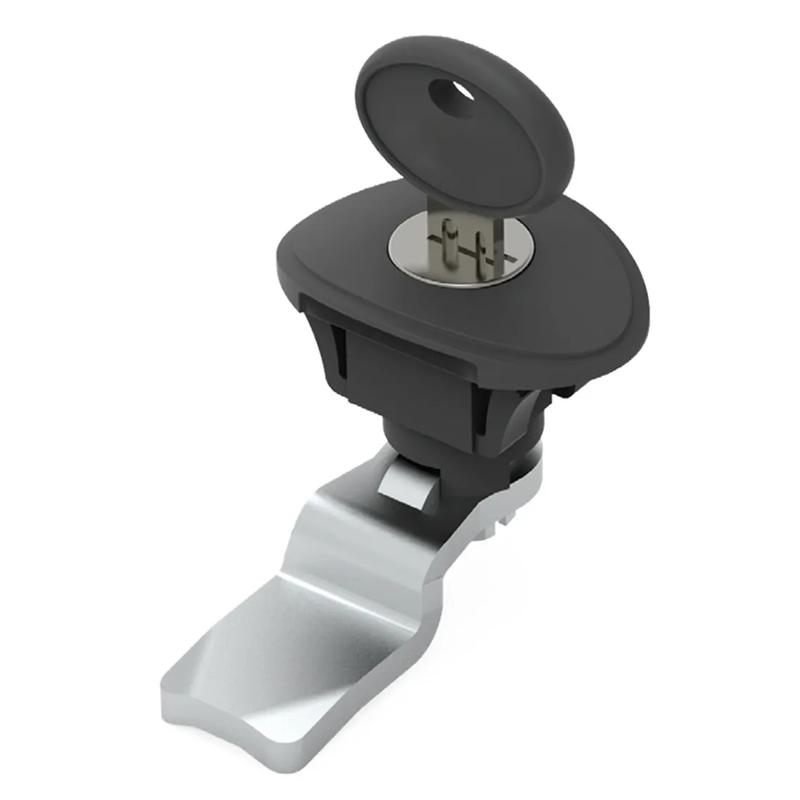

SR261 - Plastic Knob Lock / Finger Grip Latch
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Cam Material | Shutter Material | Housing Height | Head Diameter | Minimum Compatible Door Thickness | Head Height | Key Type | Latch Material | Latch Style | Mounting Hole Length | Color | Lock Type | Mounting Orientation | Housing Material | Minimum Mounting Hole Size | Cylinder Material | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Coating | Head Style | Driver Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
261203200 | Nylon | Stainless Steel | 21.1 mm | 45.0 mm | 0.8 mm | 6.5 mm | Keyed To Differ | Nylon | Cam Latch | 27.0 mm | Black | Keyed to Differ | Universal | 30% Glass Fibre Nylon 6 | 27.0 X 20.0 mm | 30% Glass Fibre Nylon 6 | Driver Tool Operated Handle | 20.0 mm | 1.8 mm | - | - | - | |
261200300 | Steel | Stainless Steel | 21.1 mm | 45.0 mm | 0.8 mm | 6.5 mm | Keyed Alike | Nylon | Cam Latch | 27.0 mm | Black | Keyed Alike | Universal | 30% Glass Fibre Nylon 6 | 27.0 X 20.0 mm | Zinc Alloy | Driver Tool Operated Handle | 20.0 mm | 1.8 mm | Powder-Coated | - | - | |
261200700 | Nylon | Stainless Steel | 21.1 mm | 45.0 mm | 0.8 mm | 6.5 mm | Keyed CH751 | Nylon | Cam Latch | 27.0 mm | Black | - | Universal | 30% Glass Fibre Nylon 6 | 27.0 X 20.0 mm | 30% Glass Fibre Nylon 6 | Driver Tool Operated Handle | 20.0 mm | 1.8 mm | - | - | - | |
26120201300 | - | - | 17.5 mm | 45.0 mm | - | 6.5 mm | 3.0 mm Double Bit Key | Nylon | Cam Latch | 27.0 mm | Black | - | Universal | 30% Glass Fibre Nylon 6 | 27.0 X 20.0 mm | - | Driver Tool Operated Handle | 20.0 mm | 1.8 mm | - | 3.0 mm Double Bit | 30% Glass Fibre Nylon 6 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
261203200
Cam Material
Nylon
Shutter Material
Stainless Steel
Housing Height
21.1 mm
Head Diameter
45.0 mm
261200300
Cam Material
Steel
Shutter Material
Stainless Steel
Housing Height
21.1 mm
Head Diameter
45.0 mm
261200700
Cam Material
Nylon
Shutter Material
Stainless Steel
Color
Black
Housing Height
21.1 mm
26120201300
Color
Black
Housing Height
17.5 mm
Minimum Mounting Hole Size
27.0 X 20.0 mm
Head Diameter
45.0 mm
