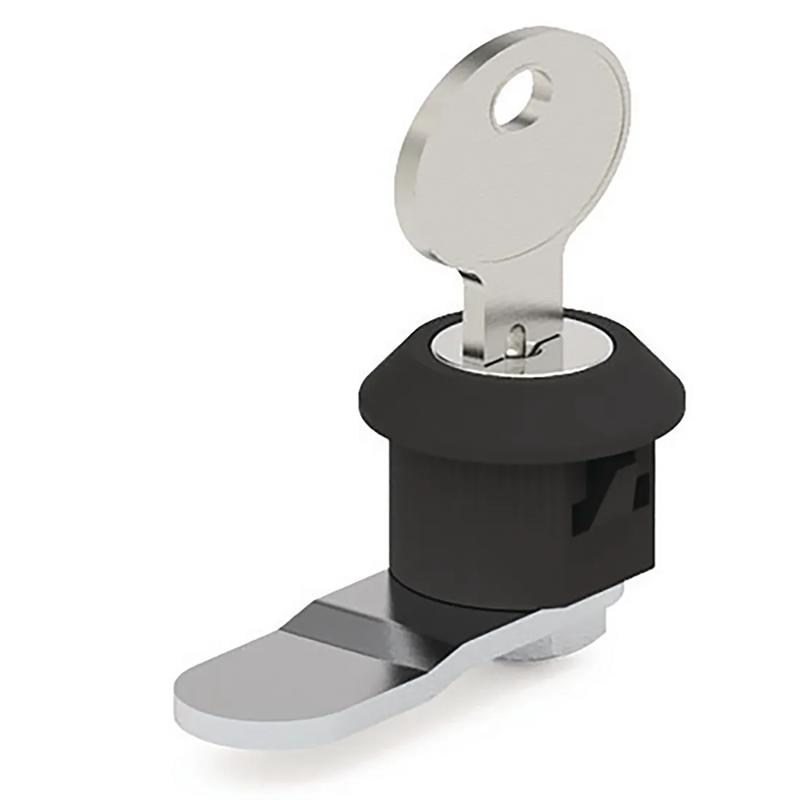

SR257 - Mini Cam Latches / Locks
Showing 1-2 of 2
Per page:1-2 of 2

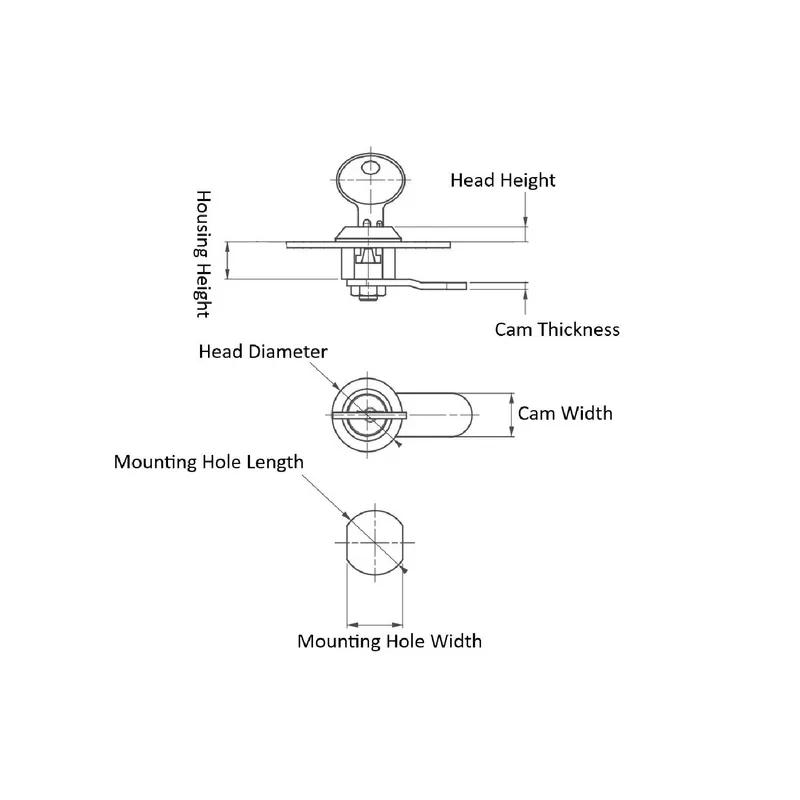

Item Code | Cam Material | Cam Thickness | Housing Height | Head Diameter | Head Height | Key Rotation | Latch Material | Mounting Hole Length | Color | Lock Type | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Cam Width | Key Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2573200 | Steel | 2.0 mm | 11.0 mm | 22.0 mm | 4.5 mm | 45 ° | Nylon | 18.2 mm | Black | Keyed to Differ | Universal | 30% Glass Fibre Nylon 6 | Key Operated Handle | 15.5 mm | 13.0 mm | Keyed Different SS Shutter | |
2570300 | Steel | 2.0 mm | 11.0 mm | 22.0 mm | 4.5 mm | 45 ° | Nylon | 18.2 mm | Black | Keyed Alike | Universal | 30% Glass Fibre Nylon 6 | Key Operated Handle | 15.5 mm | 13.0 mm | Keyed Alike;Stainless Steel Shutter |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
2573200
Cam Material
Steel
Cam Thickness
2.0 mm
Housing Height
11.0 mm
Head Diameter
22.0 mm
2570300
Cam Material
Steel
Cam Thickness
2.0 mm
Housing Height
11.0 mm
Head Diameter
22.0 mm
