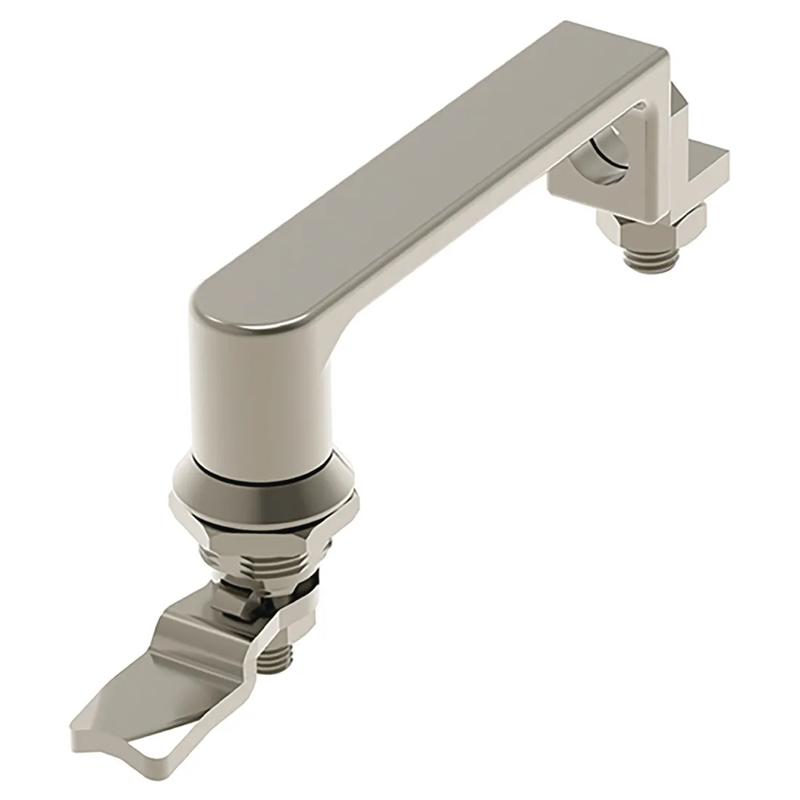

SR211 - Quarter Turn Latch - Padlockable 'L' Handle
Showing 1-3 of 3
Per page:1-3 of 3

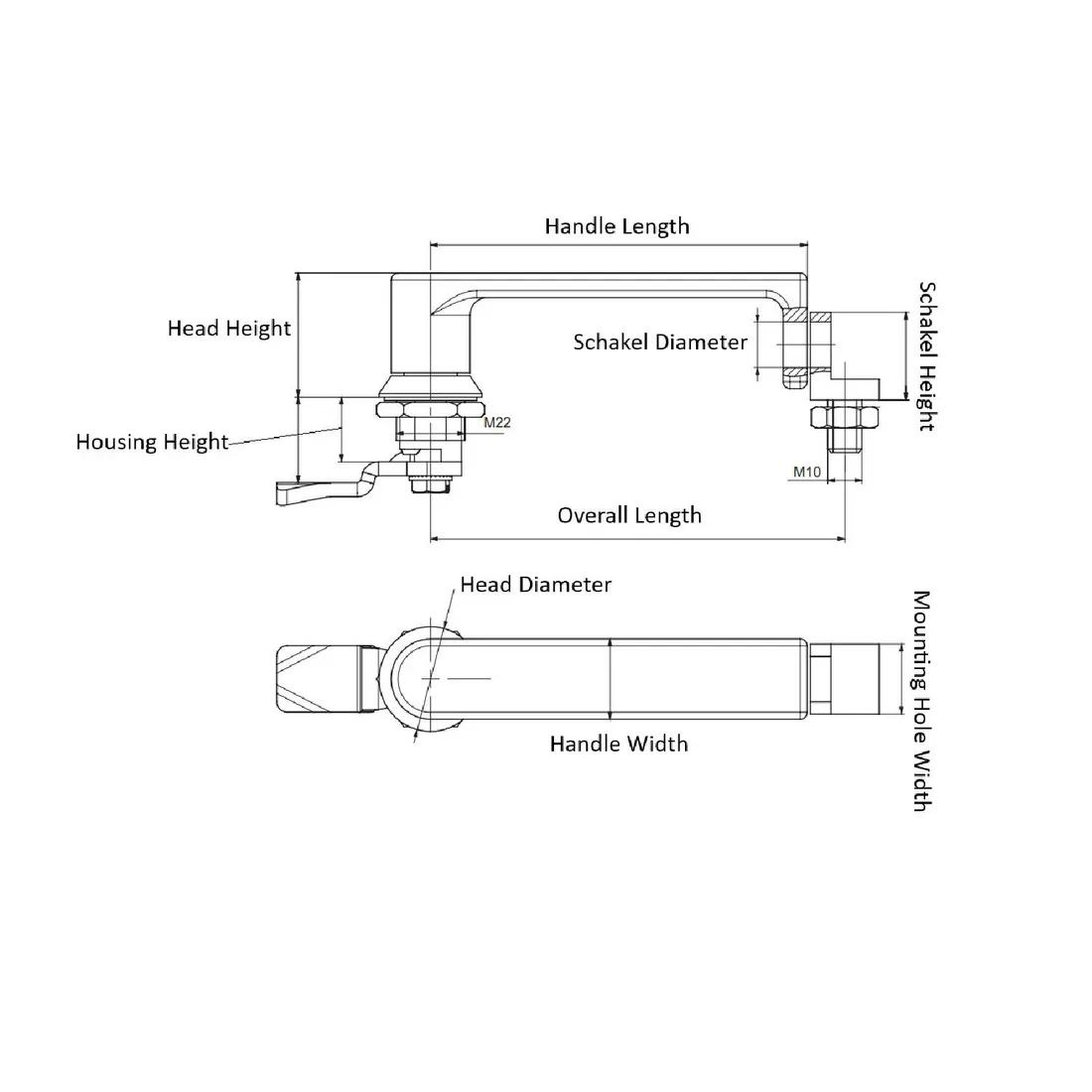

Item Code | Cam Material | Screw Size | Lock Type | Housing Height | Overall Length | Handle Material | Head Diameter | Head Height | Mounting Hole Width | Coating | Finish | Key Type | Handle Width | Mounting Orientation | Schakel Diameter | Schakel Height | Material | Latch Style | Type | Handle Length | Handle Shape | Mount Type | Mounting Hole Length | Handle Color | Color | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
211111100 | Zinc Alloy | M22, M10 | Padlock | 18.5 mm | 122.0 mm | Zinc Alloy | 30.0 mm | 35.5 mm | 20.2 mm | Chrome-Plated | Chrome Plated | No Key | 23.0 mm | Universal | 13.0 mm | 25.0 mm | Zinc Alloy | Quarter-Turn Cam Latches | No Locking | 110.0 mm | L-Shape | Screw Mount | 22.2 mm | - | - | |
211121200 | Zinc Alloy | M22, M10 | Padlock | 18.5 mm | 122.0 mm | Zinc Alloy | 30.0 mm | 35.5 mm | 20.0 mm | Chrome-Plated | Chrome Plated | No Key | 23.0 mm | Universal | 13.0 mm | 25.0 mm | Zinc Alloy | Quarter-Turn Cam Latches | No Locking | 110.0 mm | L-Shape | Screw Mount | 22.2 mm | Black | Black | |
2114000 | Zinc Alloy | M22, M10 | Padlock | 18.5 mm | 122.0 mm | Zinc Alloy | 30.0 mm | 35.5 mm | 20.2 mm | - | - | No Key | 23.0 mm | Universal | 13.0 mm | 25.0 mm | Stainless Steel | Quarter-Turn Cam Latches | No Locking | 110.0 mm | L-Shape | Screw Mount | 22.2 mm | - | - |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
211111100
Cam Material
Zinc Alloy
Screw Size
M22, M10
Lock Type
Padlock
Housing Height
18.5 mm
211121200
Cam Material
Zinc Alloy
Screw Size
M22, M10
Housing Height
18.5 mm
Overall Length
122.0 mm
2114000
Cam Material
Zinc Alloy
Screw Size
M22, M10
Lock Type
Padlock
Housing Height
18.5 mm
