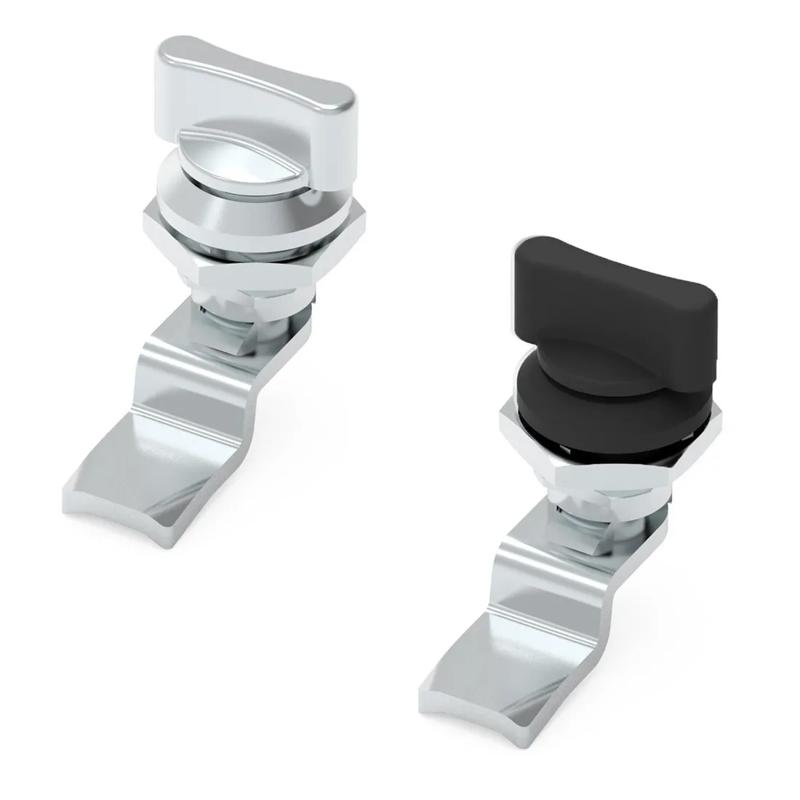

SR166 - Mini Quarter Turn Latches - Wing Knob Locks
Showing 1-3 of 3
Per page:1-3 of 3

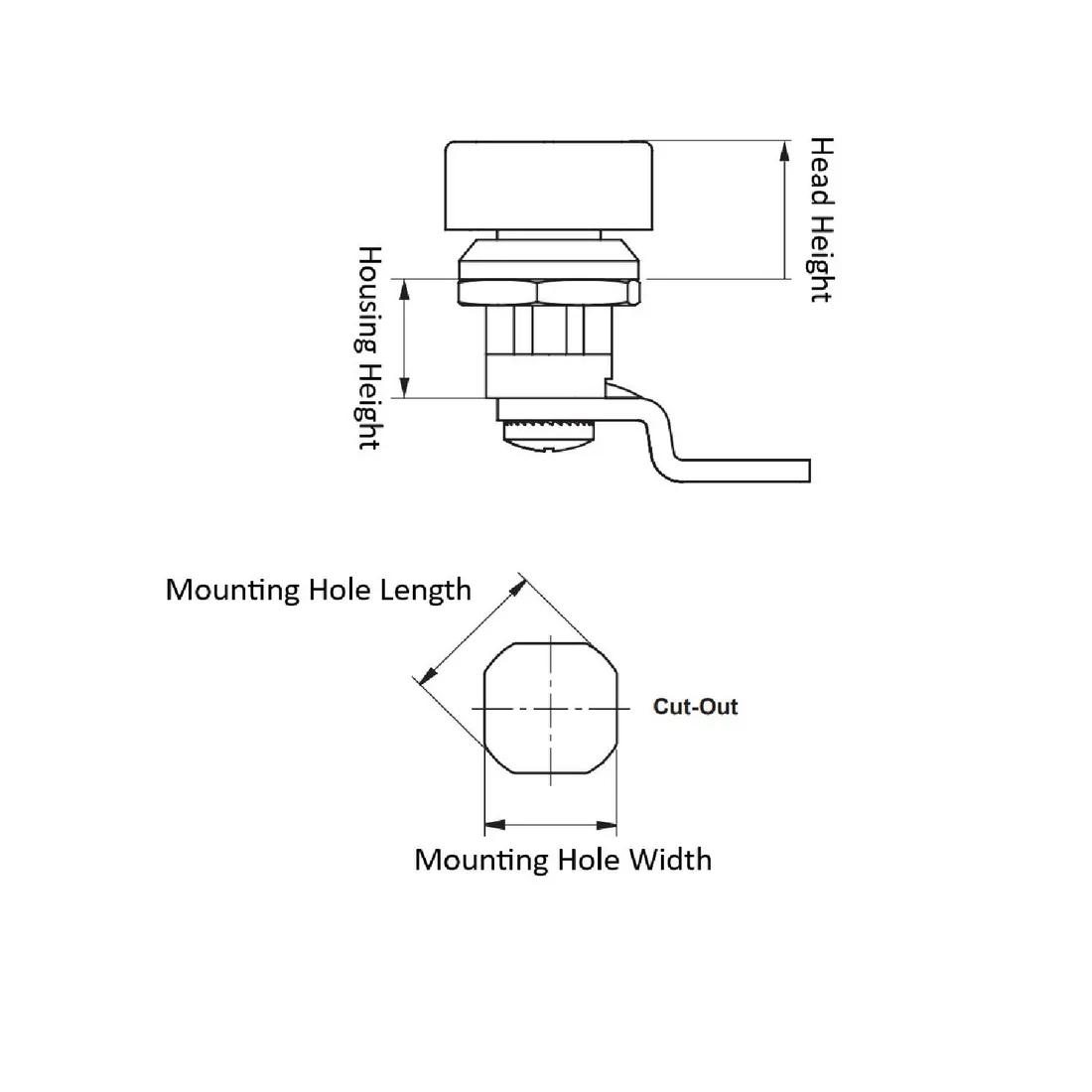

Item Code | Color | Housing Height | Minimum Mounting Hole Size | Handle Material | Head Height | Latch Material | Latch Style | Mounting Hole Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Cam Material | Coating | Finish | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1662000 | Black | 13.5 mm | 16.2 X 14.2 mm | Nylon | 15.5 mm | Nylon | Mini Quarter-Turn Latch | 16.2 mm | Universal | Nylon | Wing Knob Handle | 14.2 mm | - | - | - | |
1661100 | Silver | 13.5 mm | 16.2 X 14.2 mm | Zinc Alloy | 15.5 mm | Zinc Alloy | Mini Quarter-Turn Latch | 16.2 mm | Universal | Zinc Alloy | Wing Knob Handle | 14.2 mm | Zinc Alloy | Chrome-Plated | Chrome Plated | |
1661200 | Black | 13.5 mm | 16.2 X 14.2 mm | Zinc Alloy | 15.5 mm | Zinc Alloy | Mini Quarter-Turn Latch | 16.2 mm | Universal | Zinc Alloy | Wing Knob Handle | 14.2 mm | Zinc Alloy | Powder-Coated | Black Powder-Coated |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
1662000
Color
Black
Housing Height
13.5 mm
Minimum Mounting Hole Size
16.2 X 14.2 mm
Handle Material
Nylon
1661100
Cam Material
Zinc Alloy
Color
Silver
Housing Height
13.5 mm
Minimum Mounting Hole Size
16.2 X 14.2 mm
1661200
Cam Material
Zinc Alloy
Color
Black
Housing Height
13.5 mm
Minimum Mounting Hole Size
16.2 X 14.2 mm
