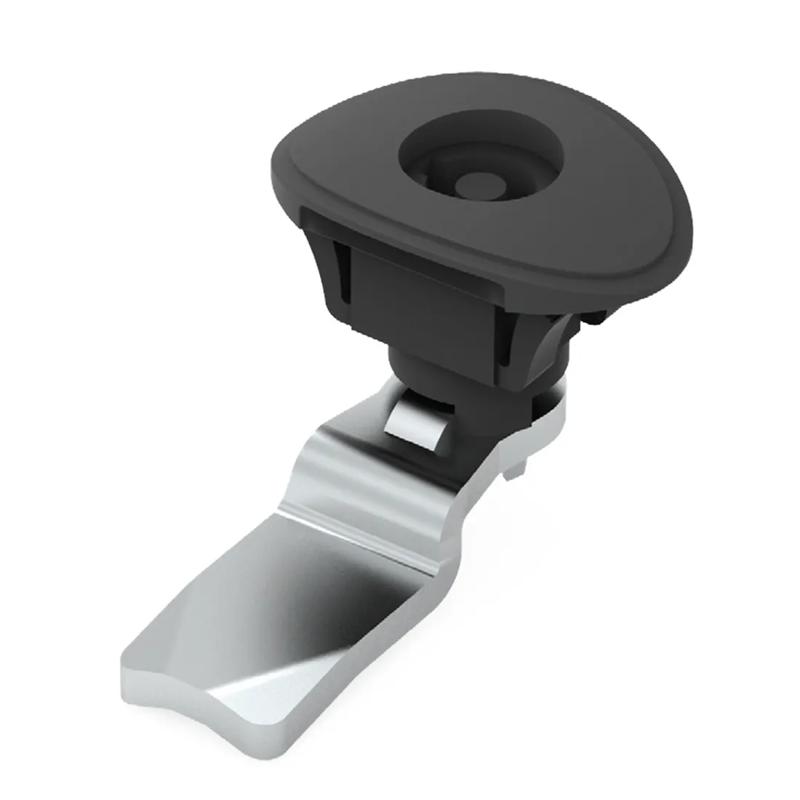

SR161 - Plastic Knob Lock / Finger Grip Latch
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Cam Material | Color | Housing Height | Minimum Mounting Hole Size | Head Diameter | Key Type | Head Style | Latch Material | Latch Style | Mounting Orientation | Housing Material | Nut Material | Head Height | Handle Type | Mounting Hole Width | Mounting Hole Length | Driver Material | Coating | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16120201500 | Nylon | Black | 18.5 mm | 22.2 X 20.2 mm | 40.0 mm | 5.0 mm Double Bit Key | 5.0 mm Double Bit | Nylon | Quarter-Turn Latch | Universal | Nylon | 30% Glass Fibre Nylon 6 | 8.0 mm | Driver Tool Operated Handle | 20.2 mm | 22.2 mm | 30% Glass Fibre Nylon 6 | - | |
16120201300 | Nylon | Black | 18.5 mm | 22.2 X 20.2 mm | 40.0 mm | 3.0 mm Double Bit Key | 3.0 mm Double Bit | Nylon | Quarter-Turn Latch | Universal | Nylon | 30% Glass Fibre Nylon 6 | 8.0 mm | Driver Tool Operated Handle | 20.2 mm | 22.2 mm | 30% Glass Fibre Nylon 6 | - | |
16120204200 | Nylon | Black | 18.5 mm | 22.2 X 20.2 mm | 40.0 mm | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Nylon | Quarter-Turn Latch | Universal | Nylon | 30% Glass Fibre Nylon 6 | 8.0 mm | Driver Tool Operated Handle | 20.2 mm | 22.2 mm | 30% Glass Fibre Nylon 6 | - | |
16120124200 | Steel | Black | 18.5 mm | 22.2 X 20.2 mm | 40.0 mm | 2 x 4 mm Slot Key | 2x 4.0 mm Slotted | Die Cast Zinc Alloy | Quarter-Turn Latch | Universal | Zinc Alloy | Zinc Alloy | 8.0 mm | Driver Tool Operated Handle | 20.2 mm | 22.2 mm | Zinc Alloy | Powder-Coated |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
16120201500
Cam Material
Nylon
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
16120201300
Cam Material
Nylon
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
16120204200
Cam Material
Nylon
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
16120124200
Cam Material
Steel
Color
Black
Housing Height
18.5 mm
Minimum Mounting Hole Size
22.2 X 20.2 mm
