SR160 - Quarter Turn Spring Cam Latch / Lock
Showing 1-6 of 6
Per page:1-6 of 6

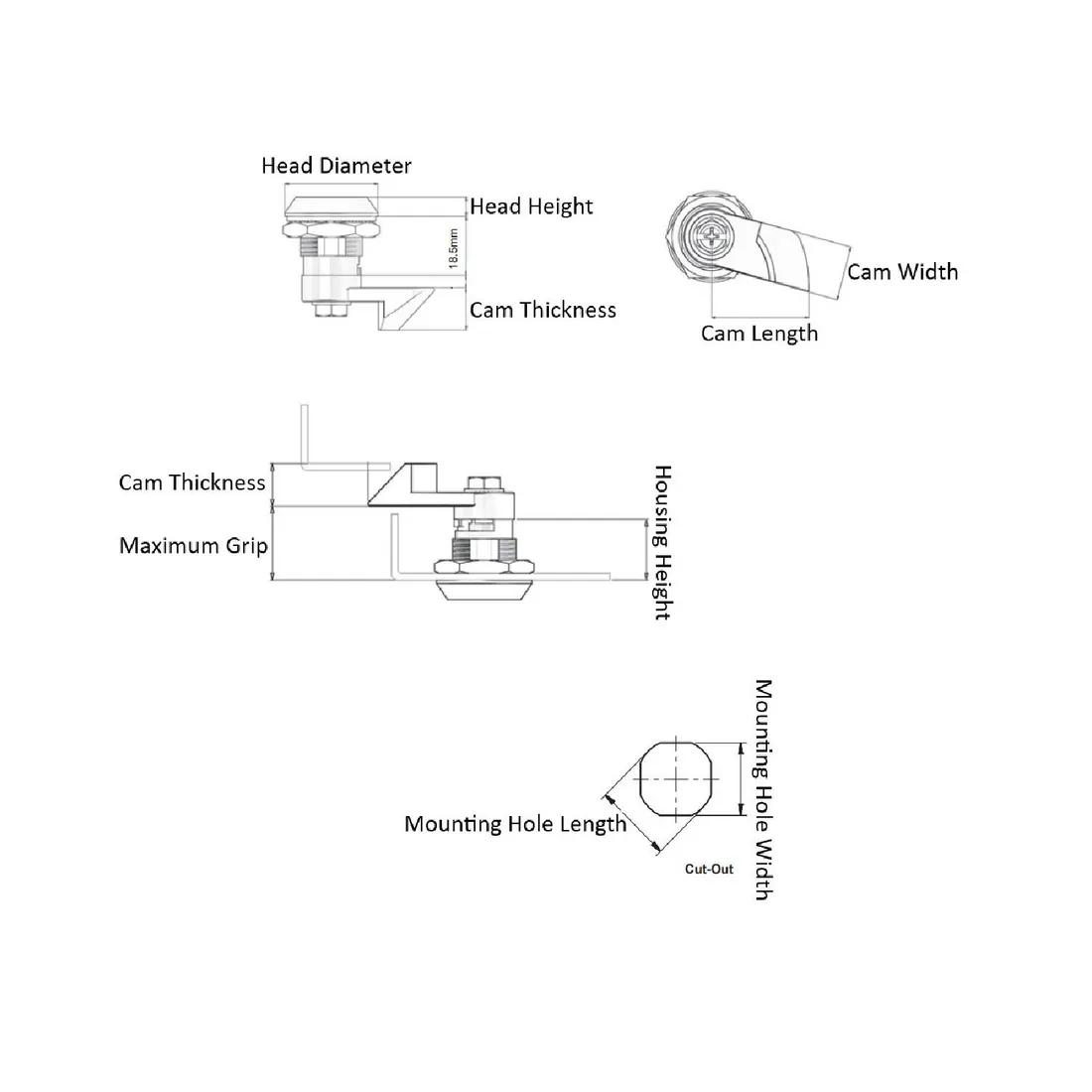

Item Code | Housing Height | Material | Overall Length | Head Diameter | Head Height | Finish | Seal Material | Head Style | Latch Style | Cam Length | Cam Thickness | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Mounting Hole Shape | Coating | Cam Width | Key Type | Mounting Hole Length | Driver Material | Color | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1601113002 | 18.5 mm | Zinc Alloy | 41.5 mm | 30.0 mm | 6.0 mm | Chrome Plated | Rubber | 3.0 mm Double Bit | Quarter-Turn Spring Cam Latch | 33.0 mm | 13.0 mm | Left-Handed | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Chrome-Plated | 18.0 mm | 3.0 mm Double Bit Key | 22.2 mm | Zinc Alloy | - | |
1601113001 | 18.5 mm | Zinc Alloy | 41.5 mm | 30.0 mm | 6.0 mm | Chrome Plated | Rubber | 3.0 mm Double Bit | Quarter-Turn Spring Cam Latch | 33.0 mm | 13.0 mm | Right-Handed | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Chrome-Plated | 18.0 mm | 3.0 mm Double Bit Key | 22.2 mm | Zinc Alloy | - | |
1601215002 | 18.5 mm | Zinc Alloy | 41.5 mm | 30.0 mm | 6.0 mm | Black Powder-Coated | Rubber | 5.0 mm Double Bit | Quarter-Turn Spring Cam Latch | 33.0 mm | 13.0 mm | Left-Handed | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Powder-Coated | 18.0 mm | 5.0 mm Double Bit Key | 22.2 mm | Zinc Alloy | Black | |
1601215001 | 18.5 mm | Zinc Alloy | 41.5 mm | 30.0 mm | 6.0 mm | Black Powder-Coated | Rubber | 5.0 mm Double Bit | Quarter-Turn Spring Cam Latch | 33.0 mm | 13.0 mm | Right-Handed | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Powder-Coated | 18.0 mm | 5.0 mm Double Bit Key | 22.2 mm | Zinc Alloy | Black | |
1601115001 | 18.5 mm | Zinc Alloy | 41.5 mm | 30.0 mm | 6.0 mm | Chrome Plated | Rubber | 5.0 mm Double Bit | Quarter-Turn Spring Cam Latch | 33.0 mm | 13.0 mm | Right-Handed | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Chrome-Plated | 18.0 mm | 5.0 mm Double Bit Key | 22.2 mm | Zinc Alloy | - | |
1601115002 | 18.5 mm | Zinc Alloy | 41.5 mm | 30.0 mm | 6.0 mm | Chrome Plated | Rubber | 5.0 mm Double Bit | Quarter-Turn Spring Cam Latch | 33.0 mm | 13.0 mm | Left-Handed | Zinc Alloy | Driver Tool Operated Handle | 20.2 mm | 22.2 x 20.2 mm | Chrome-Plated | 18.0 mm | 5.0 mm Double Bit Key | 22.2 mm | Zinc Alloy | - |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
1601113002
Housing Height
18.5 mm
Material
Zinc Alloy
Overall Length
41.5 mm
Head Diameter
30.0 mm
1601113001
Housing Height
18.5 mm
Material
Zinc Alloy
Overall Length
41.5 mm
Head Diameter
30.0 mm
1601215002
Color
Black
Housing Height
18.5 mm
Material
Zinc Alloy
Overall Length
41.5 mm
1601215001
Color
Black
Housing Height
18.5 mm
Material
Zinc Alloy
Overall Length
41.5 mm
Per page:
1–5 of 7
