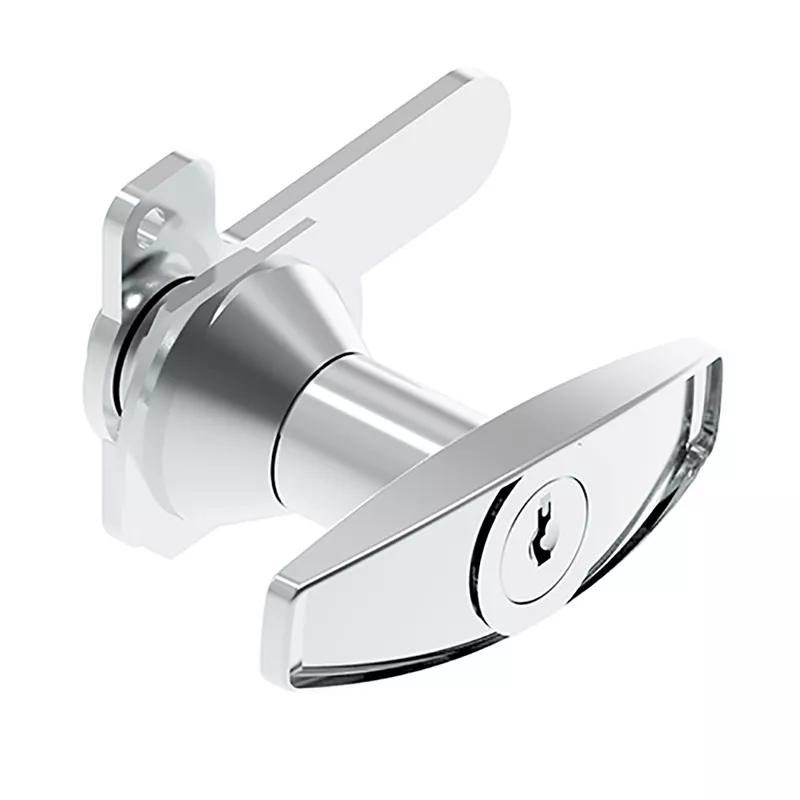

SR10 - 'T' Handle Cabinet Latches
Specifications:Material: Zinc AlloyFinish: Chrome PlatedHousing and cylinder areDIN-EN 1774 ratedCam included with latchTwo keys supplied with every lockFeatures:Ideal for electrical panels and metal cabinetsFor alternate cylinders and finish, please contact Essentra for detailsFor multi-point locking rods and accessories please contact Essentra for details

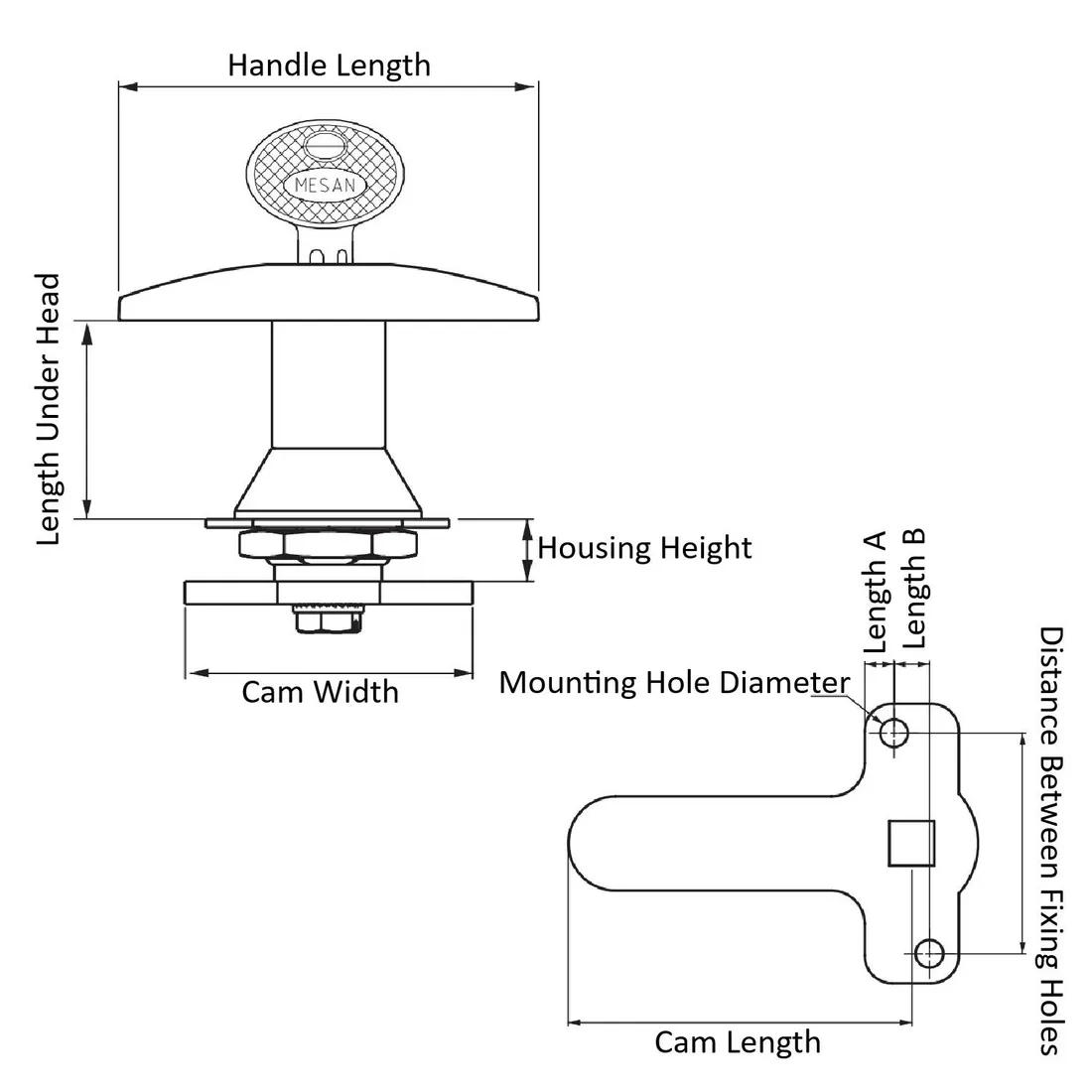

Item Code | Position | Cam Length | Lock Type | Length A | Housing Height | Material | Distance Between Fixing Holes | Mounting Hole Diameter | Finish | Length B | Cam Width | Key Type | DIN Pipe Specification | Handle Length | Latch Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0101102001 | Right | 62.0 mm | Con llaves diferentes | 5.3 mm | 11.5 mm | Zinc Alloy | 40.0 mm | 5.0 mm | Chrome Plated | 6.5 mm | 43.0 mm | Keyed To Differ | DIN-EN 1774 r | 80.0 mm | Cam Latch | |
0101102002 | Left | 62.0 mm | Con llaves diferentes | 5.3 mm | 11.5 mm | Zinc Alloy | 40.0 mm | 5.0 mm | Chrome Plated | 6.5 mm | 43.0 mm | Keyed To Differ | DIN-EN 1774 r | 80.0 mm | Cam Latch |
0101102001
Position
Right
Cam Length
62.0 mm
Lock Type
Con llaves diferentes
Length A
5.3 mm
0101102002
Position
Left
Cam Length
62.0 mm
Lock Type
Con llaves diferentes
Length A
5.3 mm
