SR72 - Functional Lock - Lift & Turn Latch
Showing 1-4 of 4
Per page:1-4 of 4

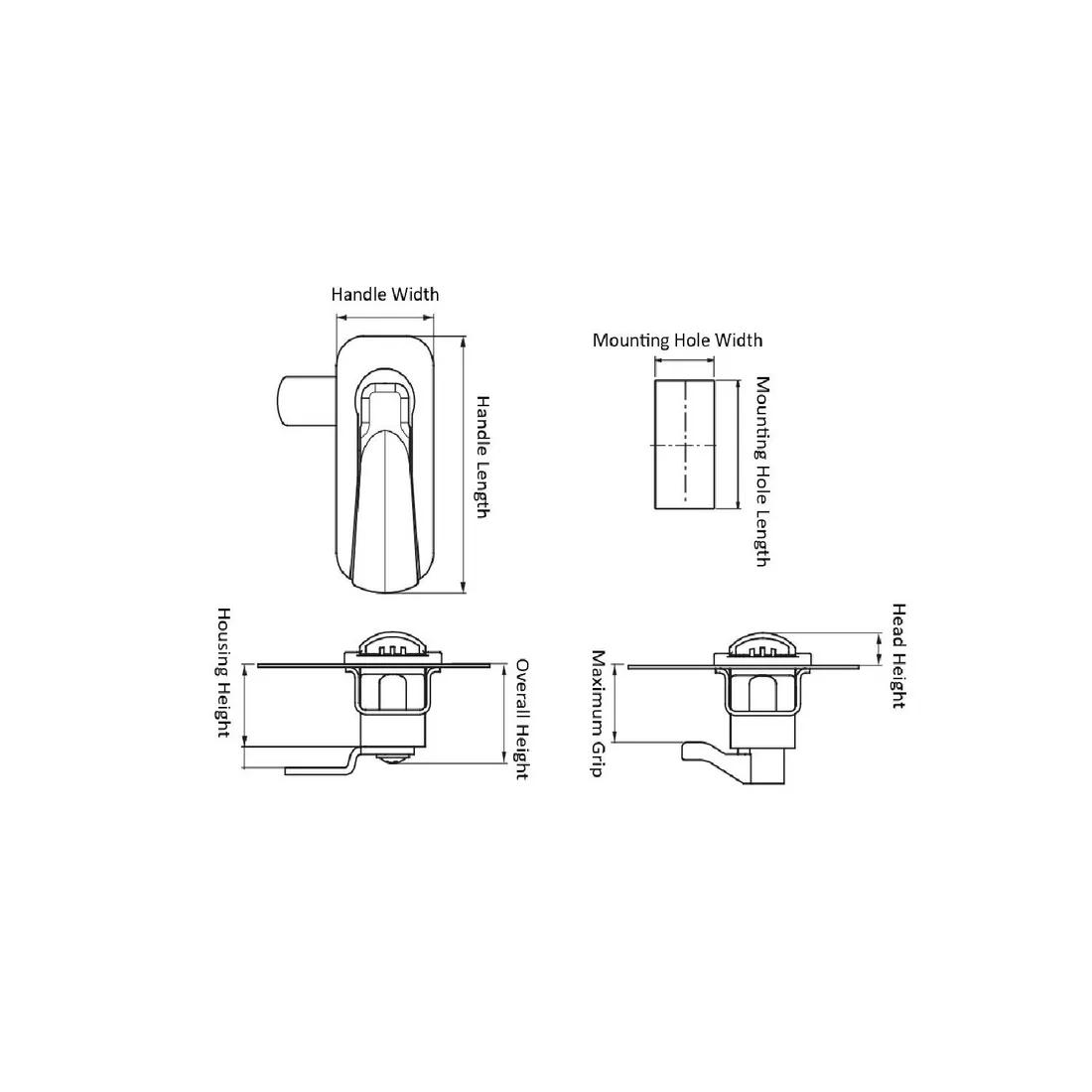

Item Code | Housing Height | Face Width | Minimum Compatible Door Thickness | Head Height | Key Type | Handle Style | Overall Height | Handle Length | Mounting Hole Length | Color | Face Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Face Depth | Handle Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
072100001 | 29.0 mm | 36.0 mm | 0.8 mm | 11.0 mm | No Key | Right | 33.5 mm | 87.0 mm | 50.0 mm | Black | 87.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle, Lift & Turn | 25.0 mm | 2.0 mm | 11.0 mm | 36.0 mm | |
072200001 | 29.0 mm | 36.0 mm | 0.8 mm | 11.0 mm | No Key | Right | 33.5 mm | 87.0 mm | 50.0 mm | Black | 87.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle, Lift & Turn | 25.0 mm | 2.0 mm | 11.0 mm | 36.0 mm | |
072200002 | 29.0 mm | 36.0 mm | 0.8 mm | 11.0 mm | No Key | Left | 33.5 mm | 87.0 mm | 50.0 mm | Black | 87.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle, Lift & Turn | 25.0 mm | 2.0 mm | 11.0 mm | 36.0 mm | |
072100002 | 29.0 mm | 36.0 mm | 0.8 mm | 11.0 mm | No Key | Left | 33.5 mm | 87.0 mm | 50.0 mm | Black | 87.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle, Lift & Turn | 25.0 mm | 2.0 mm | 11.0 mm | 36.0 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
072100001
Housing Height
29.0 mm
Face Width
36.0 mm
Minimum Compatible Door Thickness
0.8 mm
Head Height
11.0 mm
072200001
Housing Height
29.0 mm
Face Width
36.0 mm
Minimum Compatible Door Thickness
0.8 mm
Head Height
11.0 mm
072200002
Housing Height
29.0 mm
Face Width
36.0 mm
Minimum Compatible Door Thickness
0.8 mm
Head Height
11.0 mm
072100002
Housing Height
29.0 mm
Face Width
36.0 mm
Minimum Compatible Door Thickness
0.8 mm
Head Height
11.0 mm
