SR270 - Swell Latch
Showing 1-3 of 3
Per page:1-3 of 3

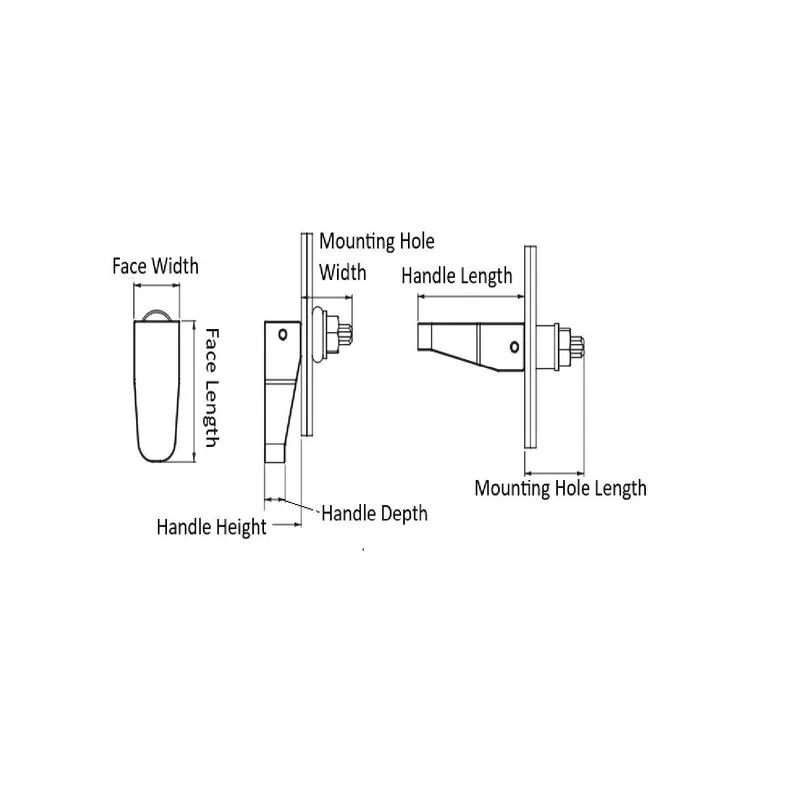

Item Code | Housing Height | Face Width | Handle Material | Key Type | Nut Colour | Handle Length | Color | Face Length | Mounting Orientation | Housing Material | Nut Material | Head Height | Handle Type | Mounting Hole Width | Washer Material | Bushing Material | Washer Colour | Handle Width | Handle Height | Mounting Hole Length | Minimum Compatible Frame Thickness | Finish | Coating | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
270202 | 18.5 mm | 17.0 mm | 30% Glass Fibre Nylon 6/6 | No Key | Black | 39.0 mm | Black | 39.0 mm | Universal | Nylon | Nylon 6/6 | 11.5 mm | Hand Operated Handle | 13.5 mm | Nylon 6/6 | SBR Rubber | Black | 17.0 mm | 11.5 mm | 13.5 mm | - | - | - | |
270123 | - | 16.0 mm | Zinc Alloy | No Key | Black | 54.5 mm | Black | 54.5 mm | Universal | Zinc Alloy | Nylon 6/6 | 30.0 mm | Hand Operated Handle | 19.1 mm | Nylon 6/6 | SBR Rubber | Black | 16.0 mm | 30.0 mm | 19.1 mm | 1.2 mm | Black Powder-Coated | Powder-Coated | |
270201 | 18.5 mm | 12.0 mm | 30% Glass Fibre Nylon 6/6 | No Key | Black | 28.0 mm | Black | 28.0 mm | Universal | Nylon | Nylon 6/6 | 9.6 mm | Hand Operated Handle | 9.5 mm | Nylon 6/6 | SBR Rubber | Black | 12.0 mm | 9.6 mm | 9.5 mm | - | - | - |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
270202
Housing Height
18.5 mm
Face Width
17.0 mm
Handle Material
30% Glass Fibre Nylon 6/6
Key Type
No Key
270123
Face Width
16.0 mm
Handle Material
Zinc Alloy
Minimum Compatible Frame Thickness
1.2 mm
Finish
Black Powder-Coated
270201
Housing Height
18.5 mm
Face Width
12.0 mm
Handle Material
30% Glass Fibre Nylon 6/6
Key Type
No Key
