SR170 - Lift-and-Turn Latches - Fixed Compression Locks
Showing 1-4 of 4
Per page:1-4 of 4

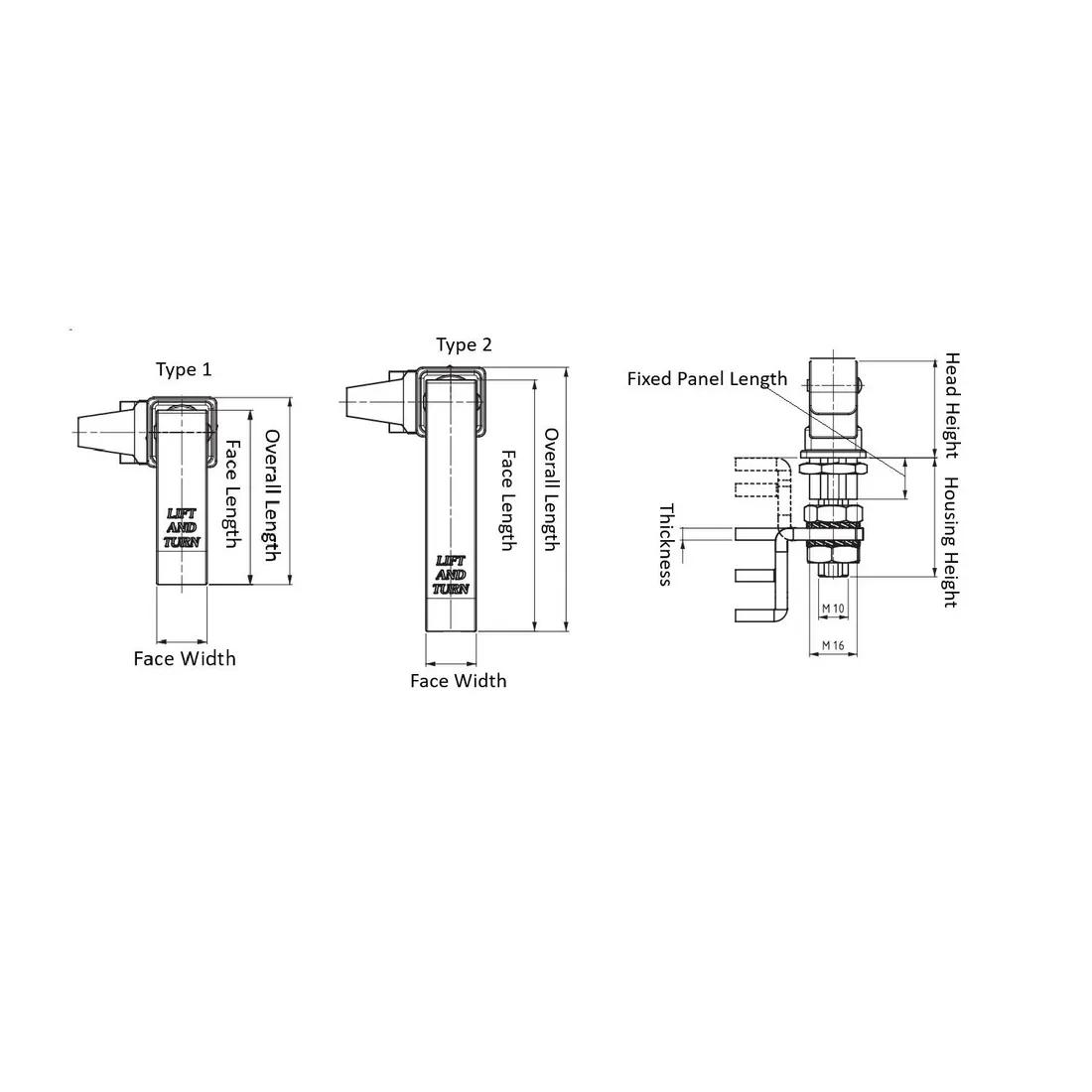

Item Code | Screw Size | Housing Height | Face Width | Overall Length | Handle Material | Head Height | Coating | Finish | Key Type | Handle Width | Handle Length | Mounting Hole Length | Color | Face Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
17011100 | M10, M16 | 42.0 mm | 16.0 mm | 59.0 mm | Zinc Alloy | 31.0 mm | Chrome-Plated | Chrome Plated | No Key | 16.0 mm | 55.0 mm | 16.5 mm | Silver | 55.0 mm | Universal | Zinc Alloy | Lift & Turn Latch Handle | 13.7 mm | |
17011200 | M10, M16 | 42.0 mm | 16.0 mm | 59.0 mm | Zinc Alloy | 31.0 mm | Powder-Coated | Chrome Plated | No Key | 16.0 mm | 55.0 mm | 16.5 mm | Black | 55.0 mm | Universal | Zinc Alloy | Lift & Turn Latch Handle | 13.7 mm | |
17021100 | M10, M16 | 42.0 mm | 16.0 mm | 84.0 mm | Zinc Alloy | 31.0 mm | Chrome-Plated | Black Powder-Coated | No Key | 16.0 mm | 80.0 mm | 16.5 mm | Black | 80.0 mm | Universal | Zinc Alloy | Lift & Turn Latch Handle | 13.7 mm | |
17021200 | M10, M16 | 42.0 mm | 16.0 mm | 84.0 mm | Zinc Alloy | 31.0 mm | Powder-Coated | Black Powder-Coated | No Key | 16.0 mm | 80.0 mm | 16.5 mm | Black | 80.0 mm | Universal | Zinc Alloy | Lift & Turn Latch Handle | 13.7 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
17011100
Screw Size
M10, M16
Housing Height
42.0 mm
Face Width
16.0 mm
Overall Length
59.0 mm
17011200
Screw Size
M10, M16
Housing Height
42.0 mm
Face Width
16.0 mm
Overall Length
59.0 mm
17021100
Screw Size
M10, M16
Housing Height
42.0 mm
Face Width
16.0 mm
Overall Length
84.0 mm
17021200
Screw Size
M10, M16
Housing Height
42.0 mm
Face Width
16.0 mm
Overall Length
84.0 mm
