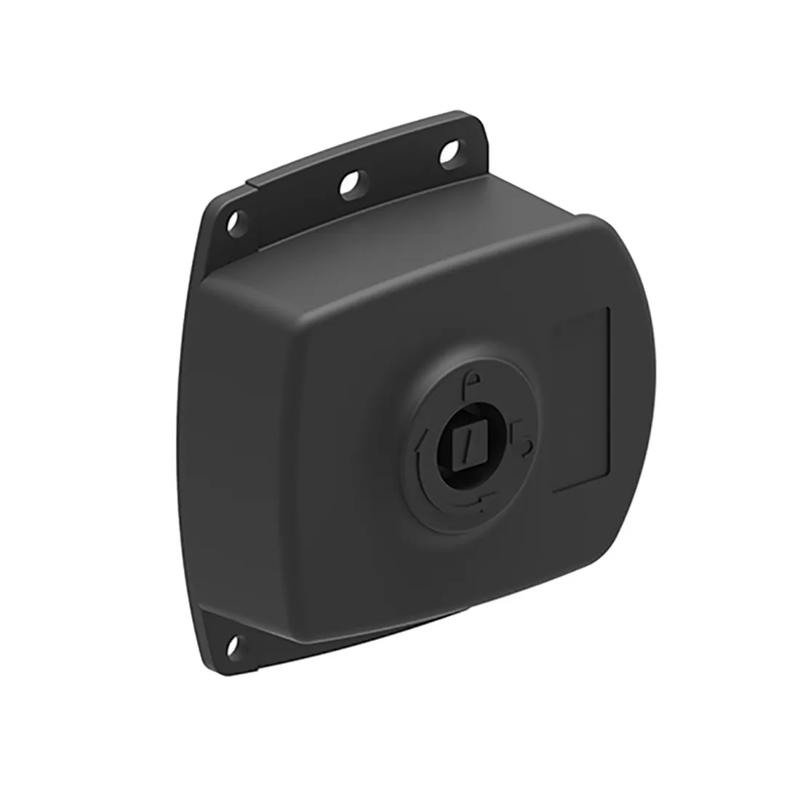

SR612 - HVAC Lock
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Mounting Hole Spacing Along Width | Mounting Hole Spacing Along Length | Material | Overall Width | Overall Length | Overall Height | Head Style | Color | Lock Type | Coating | Base Height | Finish | Style | Body Material | Key Type | Body Height | Driver Material | Mounting Orientation | Minimum Grip | Handle Type | Mounting Hole Width | Base Length | Type | Latch Style | Mount Type | Mounting Hole Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
612121238 | 28.0 mm, 23.0 mm | 80.0 mm | Die Cast Zinc Alloy | 90.0 mm | 94.0 mm | 35.0 mm | 8.0 mm Square | Black | Keyed | Powder-Coated | 30.0 mm | Black Powder-Coated | Stepped Cam | Zinc Alloy | 8.0 mm Square Key | 25.0 mm | Zinc Alloy | - | - | - | - | - | - | - | - | - | |
612121215 | - | - | Zamak | 90.0 mm | 94.0 mm | 35.0 mm | 5.0 mm Double Bit | Black | Keyed to Differ | Powder-Coated | 30.0 mm | Black Coated | Stepped Cam | Zinc Alloy | 5.0 mm Double Bit Key | 25.0 mm | Zinc Alloy | Universal | 22.5 mm | No Handle | 51.0 mm | 76.0 mm | HVAC Lock | HVAC Latch | Screw Mount | 80.0 mm | |
612121228 | - | - | Die Cast Zinc Alloy | 90.0 mm | 94.0 mm | 35.0 mm | 8.0 mm Square | - | - | Powder-Coated | 30.0 mm | Black Powder-Coated | Stepped Cam | Zinc Alloy | 8.0 mm Square Key | 25.0 mm | Zinc Alloy | - | - | - | 51.0 mm | 76.0 mm | - | - | - | 80.0 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
612121238
Mounting Hole Spacing Along Width
28.0 mm, 23.0 mm
Mounting Hole Spacing Along Length
80.0 mm
Material
Die Cast Zinc Alloy
Overall Width
90.0 mm
612121215
Material
Zamak
Overall Width
90.0 mm
Overall Length
94.0 mm
Overall Height
35.0 mm
612121228
Material
Die Cast Zinc Alloy
Overall Width
90.0 mm
Overall Length
94.0 mm
Mounting Hole Width
51.0 mm
