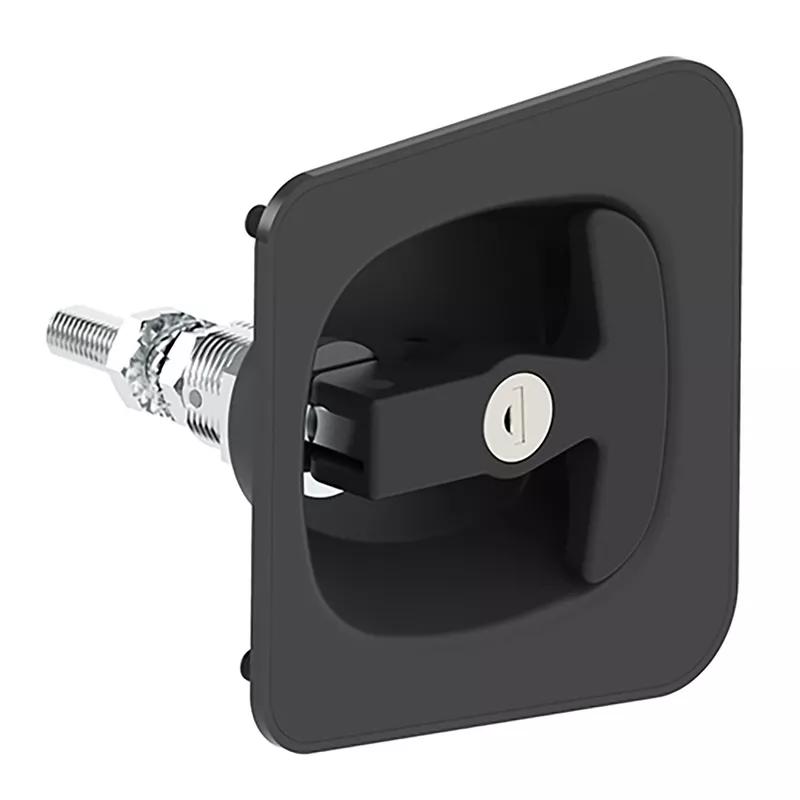

SR214 - 'T" Handle Heavy Duty Lock / Latch
Showing 1-3 of 3
Per page:1-3 of 3

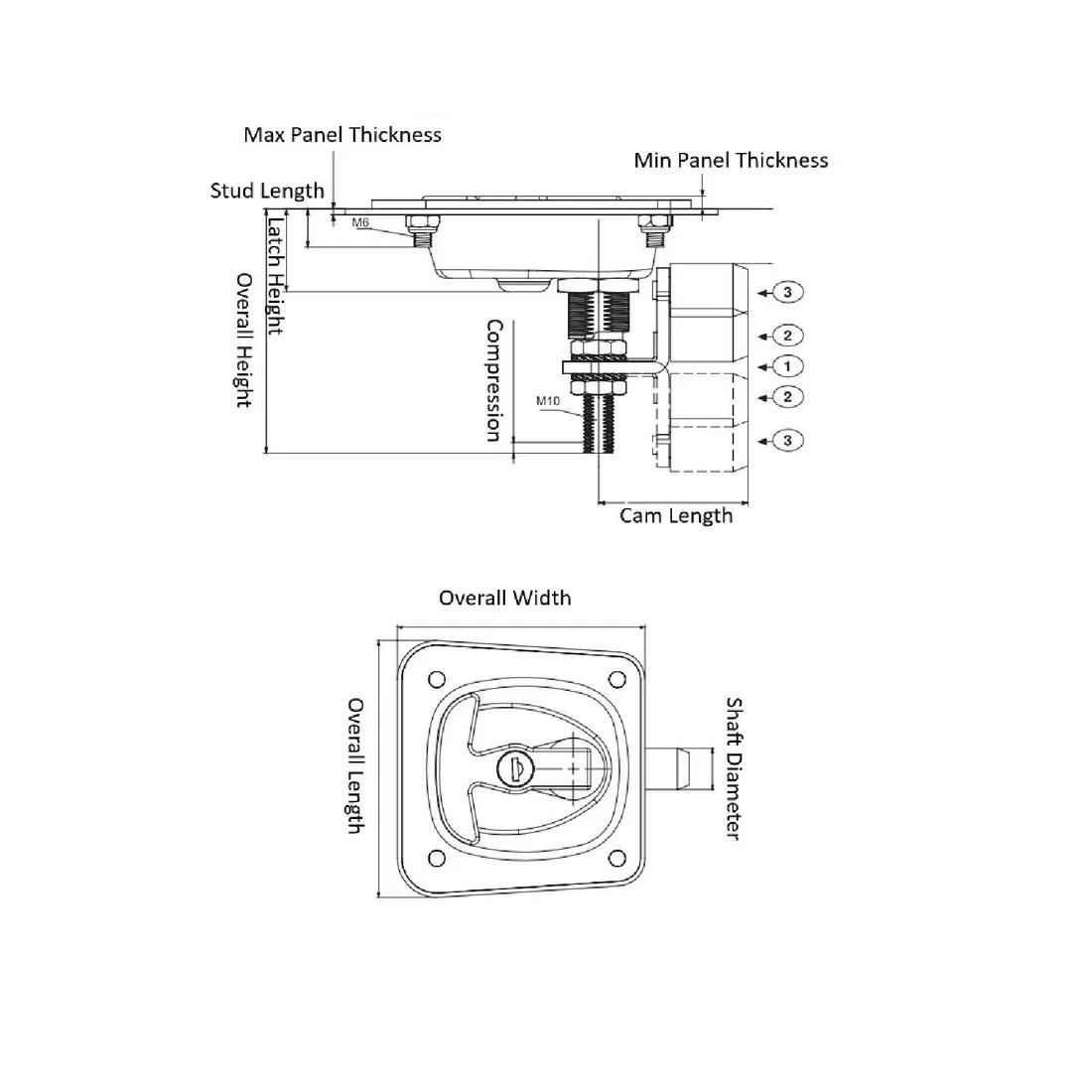

Item Code | Cam Length | Compression | Material | Overall Width | Overall Length | Handle Material | Overall Depth | Maximum Panel Thickness | Finish | Latch Material | Latch Style | Mounting Hole Length | Mounting Thread Size | Cam Material | Color | Lock Type | Mounting Orientation | Housing Material | Shaft Diameter | Mounting Hole Width | Overall Height | Stud Length | Key Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
214123200 | 50.0 mm | 4.5 mm | Zinc Alloy | 107.0 mm | 112.0 mm | Zinc Alloy | 86.8 mm | 8.0 mm | Black Powder-Coated | Zinc Alloy | Heavy-Duty Cam Latch | 86.0 mm | M10 | Steel | Black | Keyed to Differ | Universal | Steel | 18.0 mm | 86.0 mm | - | - | - | |
214120300 | 50.0 mm | 4.5 mm | Zinc Alloy | 107.0 mm | 112.0 mm | Zinc Alloy | 86.8 mm | 8.0 mm | Black Powder-Coated | Zinc Alloy | Heavy-Duty Cam Latch | 86.0 mm | M10 | Steel | Black | Keyed Alike | Universal | Steel | 18.0 mm | 86.0 mm | 82.5 mm | 13.0 mm | - | |
2141200001 | 50.0 mm | 4.5 mm | Zinc Alloy | 107.0 mm | 112.0 mm | Zinc Alloy | 86.8 mm | 8.0 mm | Black Powder-Coated | Zinc Alloy | Heavy-Duty Cam Latch | 86.0 mm | M10 | Steel | Black | Padlock | Universal | Steel | 18.0 mm | 86.0 mm | - | - | No Key |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
214123200
Cam Length
50.0 mm
Compression
4.5 mm
Material
Zinc Alloy
Overall Width
107.0 mm
214120300
Cam Length
50.0 mm
Compression
4.5 mm
Material
Zinc Alloy
Overall Width
107.0 mm
2141200001
Cam Length
50.0 mm
Compression
4.5 mm
Material
Zinc Alloy
Overall Width
107.0 mm
