SR16 - Heavy Duty Latches - Push to Close Latch
Showing 1-10 of 18
Per page:1-10 of 18

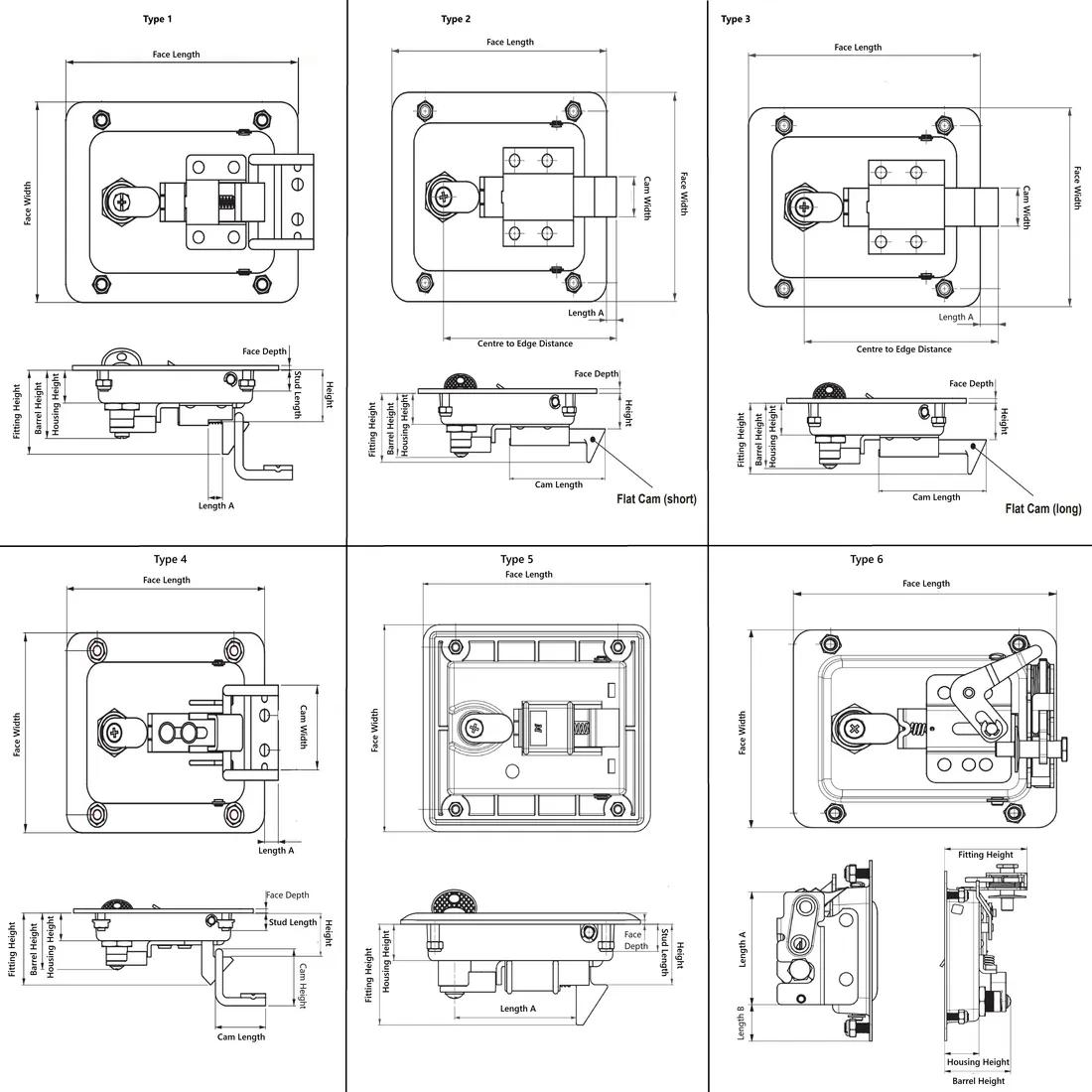

Item Code | Barrel Height | Cam Length | Face Length | Housing Height | Mounting Hole Spacing Along Length | Face Width | Handle Material | Mounting Hole Diameter | Face Depth | Seal Material | Centre to Edge Distance | Type | Fitting Height | Screw Material | Cam Material | Length A | Mounting Hole Spacing Along Width | Cam Width | Body Material | Key Type | Latch Type | Stud Length | Lock Type | Latch Style | Finish | Bracket Material | DIN Pipe Specification | Length B | Cam Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01662323 | 42.5 mm | 81.0 mm | 140.0 mm | 20.5 mm | 100.0 mm | 110.0 mm | Steel | 7.0 mm | 3.0 mm | PU | 121.0 mm | 3 | 45.5 mm | 304 Stainless Steel | Brass | 11.0 mm | 94.0 mm | 22.0 mm | Steel | Keyed Different | - | - | - | - | - | - | - | - | - | |
01640321 | 42.5 mm | - | 140.0 mm | 20.5 mm | 100.0 mm | 110.0 mm | Steel | 7.0 mm | 3.0 mm | PU | - | 1 | 52.5 mm | 304 Stainless Steel | Brass | 10.0 mn | 94.0 mm | - | Stainless Steel | Keyed To Differ | Locking | 13.0 mm | Keyed to Differ | Push-to-close Latch | - | - | - | - | - | |
01640031 | 42.5 mm | - | 140.0 mm | 20.5 mm | 100.0 mm | 110.0 mm | Steel | 7.0 mm | 3.0 mm | PU | - | 1 | 52.5 mm | 304 Stainless Steel | Brass | 10.0 mn | 94.0 mm | - | Stainless Steel | Keyed Alike | Locking | 13.0 mm | Keyed Alike | Push-to-close Latch | - | - | - | - | - | |
01662031 | 42.5 mm | - | 140.0 mm | 20.5 mm | 100.0 mm | 110.0 mm | Steel | 7.0 mm | 3.0 mm | PU | - | 1 | 52.5 mm | 304 Stainless Steel | Brass | 10.0 mn | 94.0 mm | - | Steel | Keyed Alike | Locking | 13.0 mm | Keyed Alike | Push-to-close Latch | Black Powder-Coated | - | - | - | - | |
01662032 | 42.5 mm | 77.0 mm | 140.0 mm | 20.5 mm | 100.0 mm | 110.0 mm | Steel | 7.0 mm | 3.0 mm | PU | 116.5 mm | 2 | 45.5 mm | 304 Stainless Steel | Brass | 7.0 mm | 94.0 mm | 22.0 mm | Steel | Keyed Alike | Locking | - | Keyed Alike | Push-to-close Latch | - | - | - | - | - | |
01662322 | 42.5 mm | 77.0 mm | 140.0 mm | 20.5 mm | 100.0 mm | 110.0 mm | Steel | 7.0 mm | 3.0 mm | PU | 116.5 mm | 2 | 45.5 mm | 304 Stainless Steel | Brass | 7.0 mm | 94.0 mm | 22.0 mm | Steel | Keyed Different | Locking | - | Keyed to Differ | Push-to-close Latch | - | - | - | - | - | |
016200301 | - | - | 140.0 mm | 18.0 mm | 100.0 mm | 110.0 mm | - | 7.0 mm | 2.0 mm | - | - | 5 | 50.5 mm | - | Brass | 71.0 mm | 94.0 mm | - | 30% Glass Fibre Nylon 6 | Keyed Alike | Locking | 13.5 mm | Keyed Alike | Push-to-close Latch | - | Steel | DIN-EN ISO 1043-1 | - | - | |
01662325 | 45.0 mm | - | 140.0 mm | 23.5 mm | 100.0 mm | 110.0 mm | Steel | 7.0 mm | - | PU | - | 6 | 56.0 mm | - | Steel | 68.5 mm | 94.0 mm | - | Steel | Keyed Different | - | - | Keyed to Differ | Push-to-close Latch | - | - | DIN-EN 1774 | 22.0 mm | - | |
016620011 | 42.5 mm | - | 140.0 mm | 20.5 mm | 100.0 mm | 110.0 mm | Steel | 7.0 mm | 3.0 mm | PU | - | 1 | 52.5 mm | 304 Stainless Steel | Brass | 10.0 mn | 94.0 mm | - | Steel | Padlock Only Key | Locking | 13.0 mm | - | Push-to-close Latch | Black Powder-Coated | - | - | - | - |
Per page:
1-10 of 18
1–5 of 18 variants
Per page:
01662323
Barrel Height
42.5 mm
Cam Length
81.0 mm
Face Length
140.0 mm
Housing Height
20.5 mm
01640321
Barrel Height
42.5 mm
Housing Height
20.5 mm
Mounting Hole Spacing Along Length
100.0 mm
Face Width
110.0 mm
01640031
Barrel Height
42.5 mm
Housing Height
20.5 mm
Mounting Hole Spacing Along Length
100.0 mm
Face Width
110.0 mm
01662031
Barrel Height
42.5 mm
Housing Height
20.5 mm
Mounting Hole Spacing Along Length
100.0 mm
Face Width
110.0 mm
Per page:
1–5 of 19
