SR12 - HVAC Handle - Locks
Showing 1-9 of 9
Per page:1-9 of 9

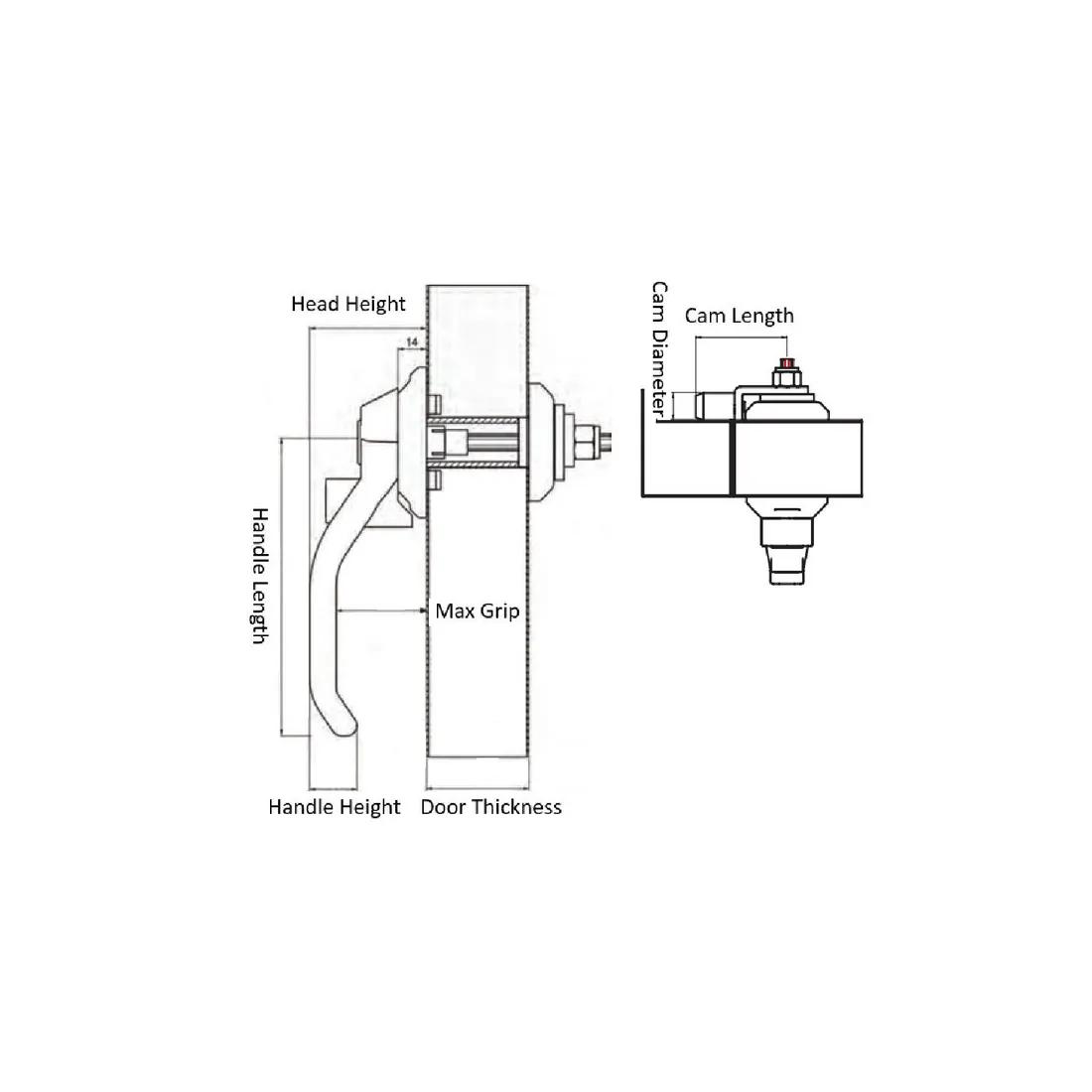

Item Code | Cam Material | Cam Length | Mounting Orientation | Material | Handle Material | Head Height | Key Type | Handle Color | Color | Lock Type | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Latch Style | Type | Handle Length | Handle Height | Cam Diameter | Mounting Hole Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0121800301 | Steel | 60.0 mm | Universal | Nylon | 30% Glass Fibre Nylon 6 | 57.0 mm | Keyed Alike | Black | Black | Keyed Alike | Key Operated Handle | 20.2 mm | 80.0 mm | HVAC Latch | Locking | 140.0 mm | 23.0 mm | 18.0 mm | 22.2 mm | |
0121600301 | Steel | 60.0 mm | Universal | Nylon | 30% Glass Fibre Nylon 6 | 57.0 mm | Keyed Alike | Black | Black | Keyed Alike | Key Operated Handle | 20.2 mm | 60.0 mm | HVAC Latch | Locking | 140.0 mm | 23.0 mm | 18.0 mm | 22.2 mm | |
0121500301 | Steel | 60.0 mm | Universal | Nylon | 30% Glass Fibre Nylon 6 | 57.0 mm | Keyed Alike | Black | Black | Keyed Alike | Key Operated Handle | 20.2 mm | 50.0 mm | HVAC Latch | Locking | 140.0 mm | 23.0 mm | 18.0 mm | 22.2 mm | |
0121300001 | - | - | Universal | Nylon | Nylon | - | No Key | Black | Black | - | - | 20.2 mm | - | HVAC Latch | No Locking | 140.0 mm | - | - | 22.2 mm | |
0121400001 | - | - | Universal | Nylon | Nylon | - | No Key | Black | Black | - | - | 20.2 mm | - | HVAC Latch | No Locking | 140.0 mm | - | - | 22.2 mm | |
0123500001 | - | - | Universal | Nylon | Nylon | - | No Key | Black | Black | - | - | 20.2 mm | - | HVAC Latch | No Locking | 140.0 mm | - | - | 22.2 mm | |
0123400001 | - | - | Universal | Nylon | Nylon | - | No Key | Black | Black | - | - | 20.2 mm | - | HVAC Latch | No Locking | 140.0 mm | - | - | 22.2 mm | |
0123600001 | - | - | Universal | Nylon | Nylon | - | No Key | Black | Black | - | - | 20.2 mm | - | HVAC Latch | No Locking | 140.0 mm | - | - | 22.2 mm | |
0123300001 | - | - | Universal | Nylon | Nylon | - | No Key | Black | Black | - | - | 20.2 mm | - | HVAC Latch | No Locking | 140.0 mm | - | - | 22.2 mm |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
0121800301
Cam Material
Steel
Cam Length
60.0 mm
Mounting Orientation
Universal
Material
Nylon
0121600301
Cam Material
Steel
Cam Length
60.0 mm
Mounting Orientation
Universal
Material
Nylon
0121500301
Cam Material
Steel
Cam Length
60.0 mm
Mounting Orientation
Universal
Material
Nylon
0121300001
Color
Black
Mounting Orientation
Universal
Material
Nylon
Handle Material
Nylon
Per page:
1–5 of 10
