SR116 - Push-To-Close Latch
Showing 1-2 of 2
Per page:1-2 of 2

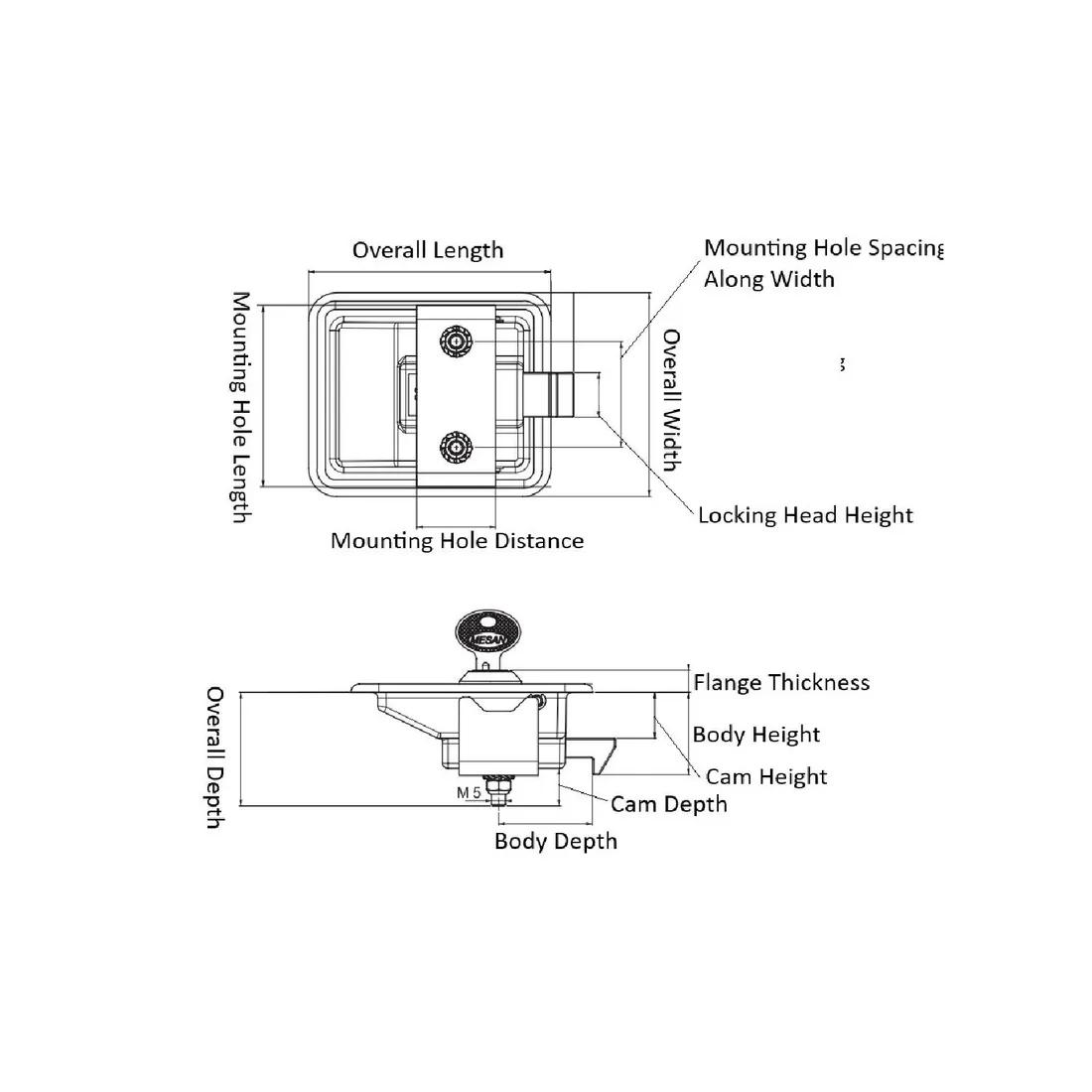

Item Code | Cam Material | Screw Size | Bracket Material | Color | Mounting Hole Spacing Along Width | Housing Height | Mounting Orientation | Material | Overall Depth | Latch Material | Minimum Mounting Hole Size | Body Depth | Overall Width | Overall Length | Cam Depth | Handle Type | Mounting Hole Width | Latch Type | Base Height | Base Depth | Base Length | Body Material | Key Type | Locking Head Height | Latch Style | Body Height | Mounting Hole Length | Lock Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
11600M | Delrin | M5 | Steel | Black | 38.0 mm | 16.5 mm | Universal | Nylon | 41.0 mm | Nylon | 72.0 X 58.0 mm | 33.0 mm | 73.0 mm | 86.0 mm | 13.5 mm | Push-to-Close Handle | 58.0 mm | Locking | 73.0 mm | 41.0 mm | 86.0 mm | 30% Glass Fibre Nylon 6 | No Key | 16.0 mm | Push-to-close Latch | 29.5 mm | 72.0 mm | - | |
11601 | Delrin | M5 | Steel | Black | 38.0 mm | 16.5 mm | Universal | Nylon | 41.0 mm | Nylon | 72.0 X 58.0 mm | 33.0 mm | 73.0 mm | 86.0 mm | 13.5 mm | Key Operated | 58.0 mm | Locking | 73.0 mm | 41.0 mm | 86.0 mm | 30% Glass Fibre Nylon 6 | Keyed Alike | 16.0 mm | Push-to-close Latch | 29.5 mm | 72.0 mm | Keyed Alike |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
11600M
Cam Material
Delrin
Screw Size
M5
Bracket Material
Steel
Color
Black
11601
Cam Material
Delrin
Screw Size
M5
Bracket Material
Steel
Mounting Hole Spacing Along Width
38.0 mm
