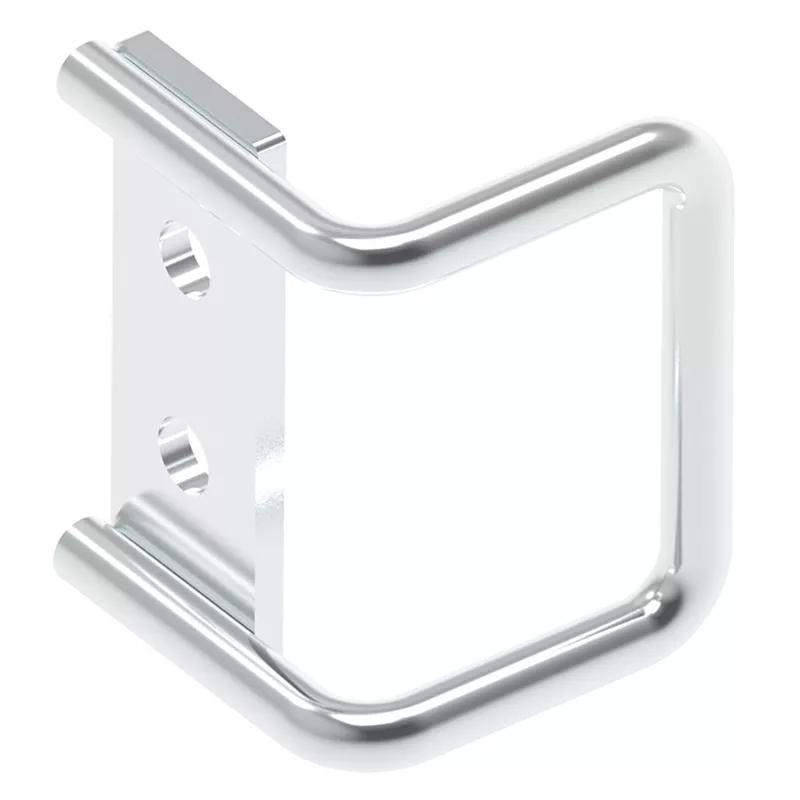

SR016A - Cam Striking Plate
Showing 1-1 of 1
Per page:1-1 of 1

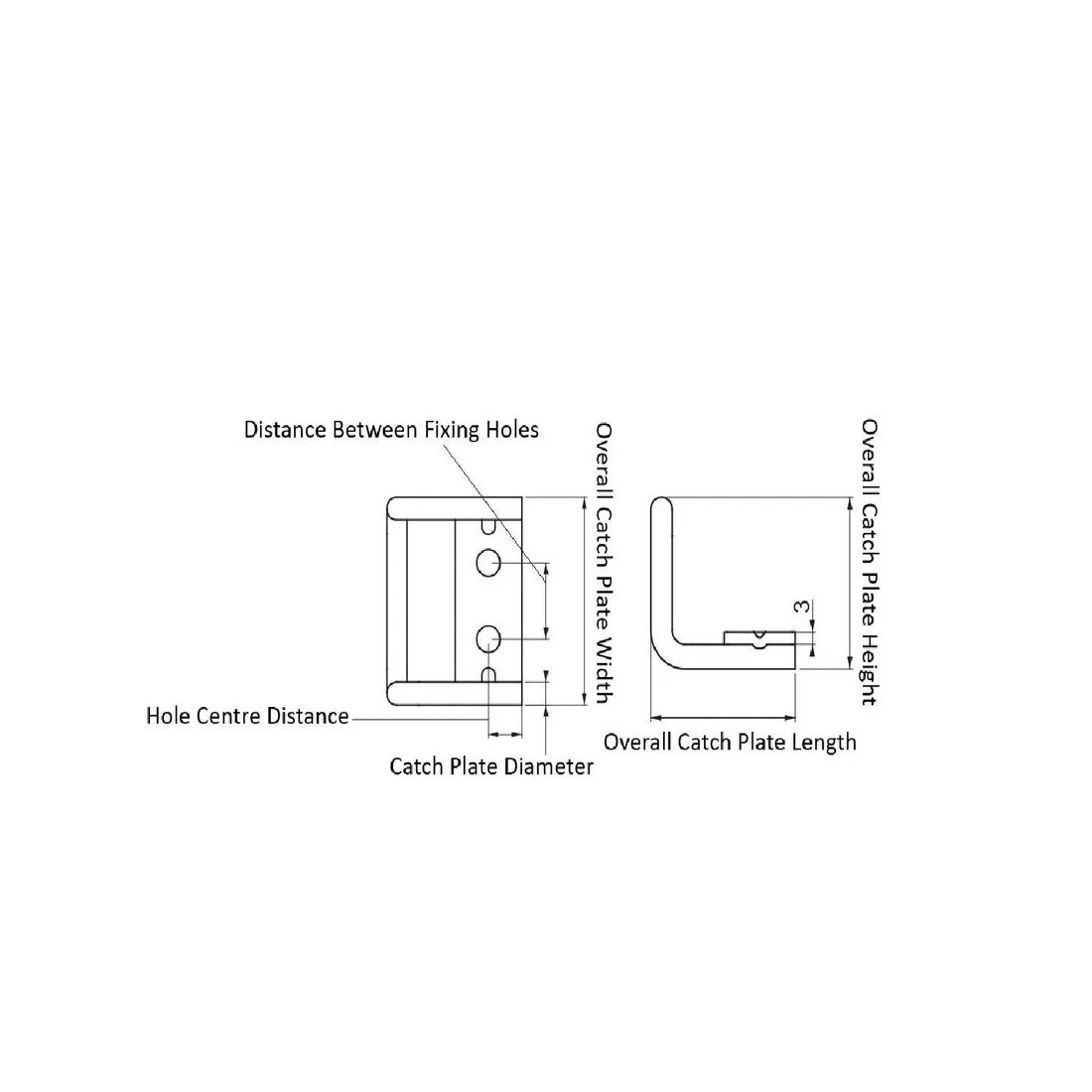

Item Code | Catch Plate Diameter | Color | Overall Catch Plate Width | Material | Overall Length | Overall Catch Plate Height | Coating | Finish | Body Material | Locking Device Required | Overall Catch Plate Length | Latch Style | Overall Width | Distance Between Fixing Holes | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
016A71 | 6.0 mm | Silver | 54.5 mm | Steel | 40.5 mm | 42.0 mm | Zinc-Plated | Zinc-Plated | Steel | No | 40.5 mm | Strike Plate | 54.5 mm | 20.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
016A71
Catch Plate Diameter
6.0 mm
Color
Silver
Overall Catch Plate Width
54.5 mm
Material
Steel
